Dold 0056481 IL9069.12/500 3/NAC400/230V 0.1-20S neutral conductor monitor asym.5-15%

Your rating:
Average rating
product review for Dold 0056481 IL9069.12/500 3/NAC400/230V 0.1-20S neutral conductor monitor asym.5-15%
( 4.3 / 5 ) 15 ratings

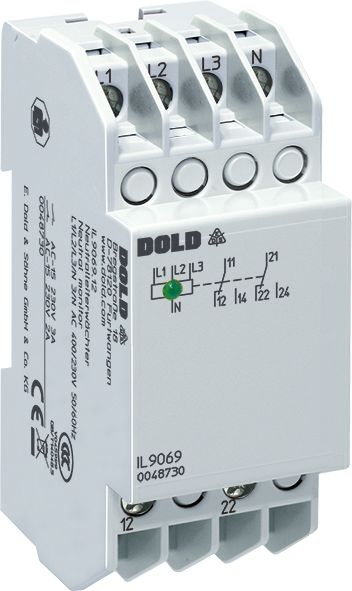

Dold 0056481
This image may differ from the desired article.
279,94 EUR
( 333,13 EUR incl. VAT )
≈ £234.31  |  ≈ $307.65
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056481 IL9069.12/500 3/NAC400/230V 0.1-20S neutral conductor monitor asym.5-15%
Datasheet:file_download Download
Lieske Part No.:1312555
Mfg Part No: 0056481
UPC/EAN: 4030641564810
Weight:0.123 kg
Type:IL9069.12/500 3/NAC400/230V 0,1-20S
Graduated prices net
From piecesPrice per pieces
4263,14 EUR
8246,35 EUR
12229,55 EUR
16212,75 EUR

Product information for Dold 0056481:

The Dold IL9069.12/500 is a neutral conductor monitor for three-phase networks with 3/N AC 400/230 V nominal voltage, specifically developed for monitoring the neutral conductor in electrical installations. The device detects faults such as a missing neutral conductor, a broken neutral conductor in the device supply line, or an interchange of the neutral conductor with a phase. This monitoring is performed without auxiliary voltage, simplifying installation and increasing operational safety. The device is designed for use in installation and industrial distributors according to DIN 43880 and has a mounting width of 35 mm.

Applications
The IL9069.12/500 is particularly suitable for installations where single-phase consumers are connected to the neutral conductor. In the event of a neutral conductor interruption, an asymmetric voltage distribution may occur, leading to overvoltages or undervoltages, which can damage or disable devices. The device protects against such damages, especially in mobile installations connected via long supply lines or plug connections, where voltage drops can cause increased asymmetry.

Functions and Equipment in Detail
The device features 2 changeover contacts as output contacts, which drop out in the event of a fault. Detection is achieved by measuring the phase voltages L1, L2, L3 against the neutral conductor N. With correct connection configuration and network asymmetry within the permissible range, a green LED lights up, and the output relay remains energized. Upon detection of a fault—whether a missing conductor, interchange, or asymmetry exceeding the threshold—the relay drops out and the LED turns off. The IL9069.12/500 variant offers adjustable asymmetry detection in the range of approximately 5 to 15 %, as well as adjustable response delay from 0.1 to 20 seconds. This delay only applies if the voltage at terminals L3-N is at least 0.7 times the nominal voltage, as the internal supply is derived from these terminals.

Technology Explained Simply
The device operates on the standby current principle, where the output relay is energized during normal operation and drops out in case of a fault. The voltage range coverage is between 0.7 and 1.1 times the nominal voltage. The input current consumption is approximately 1.5 mA at phases L1-N and L2-N, and approximately 25 mA at L3-N. The nominal frequency is 50/60 Hz, with a frequency range from 45 to 65 Hz. The maximum overload capacity is AC 440 V at all measurement inputs. The nominal power consumption is approximately 6 VA (L3-N).

Compatibility and Accessories
The device is designed for three-phase networks and detects network faults even with disconnected consumers. Phase sequence is arbitrary, providing flexible installation. The IL9069.12/500 device variant is specifically designed for applications with increased sensitivity to asymmetry, such as those occurring with longer supply lines. The connection terminals are located at the bottom, suitable for installation distributors according to DIN 43880.

Mounting and Installation
Mounting is performed in standard installation distributors with a mounting width of 35 mm. The connection terminals are positioned at the bottom, facilitating integration into existing switchgear. The devices are designed for use in industrial and electrical installations requiring high operational safety.

Operational Advantages
By detecting neutral conductor faults early, the device prevents damage to connected equipment and ensures higher system availability. The LED indicator allows for quick visual monitoring of the operating status. The adjustable parameters for asymmetry and response delay enable application-specific customization to avoid false tripping and optimize operational safety. The device complies with the standard IEC/EN 60255-1 and carries the CCC certification.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Measuring range max.415 V
Output contacts2 C/O contacts
Standard measuring range3/N AC 400/230 V
Width35 mm
TypeIL 9069
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400 / 230 V
Approvals and MarkingsCCC
VariantWith adjustable response value for asymmetry identification. With adjustable response delay


Product data sheet
Datasheet for Dold 0056481, EAN: 4030641564810
