Dold 0056147 LG3096.60 DC24V coupling module

Your rating:
Average rating
product review for Dold 0056147 LG3096.60 DC24V coupling module
( 4.4 / 5 ) 14 ratings

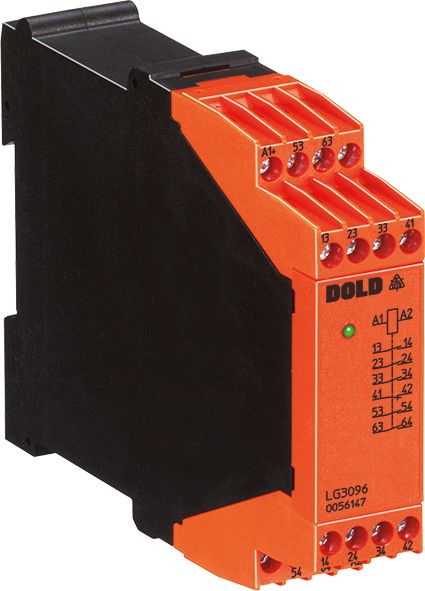

Dold 0056147
This image may differ from the desired article.
127,84 EUR
( 152,13 EUR incl. VAT )
≈ £107.00  |  ≈ $140.50
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0056147 LG3096.60 DC24V coupling module
Datasheet:file_download Download
Lieske Part No.:1312978
Mfg Part No: 0056147
UPC/EAN: 4030641561475
Weight:0.18 kg
Type:LG3096.60 DC24V
Graduated prices net
From piecesPrice per pieces
5123,05 EUR
10118,25 EUR
15113,46 EUR
20108,66 EUR

Product information for Dold 0056147:

The Dold coupling module LG3096.60 DC24V is an industrial relay designed for use in enclosures, intended for decoupling control and power levels as well as for contact multiplication of safety switching devices. It features forced-guided contacts in accordance with IEC 61810-3, enabling reliable monitoring of the switching state via an integrated normally open contact. The device is designed for a nominal voltage of DC 24 V and is suitable for applications in safety and control technology, particularly in industrial environments where high operational reliability is required.

Applications

The coupling module is typically used in automated production systems, machine control systems, and safety circuits, where it distributes signals from control devices to multiple output contacts. The forced-guided contact design enables state monitoring, which can be used in safety-critical systems for fault detection. The module width of 22.5 mm makes it compatible with standard control panels in 35-mm pitch, ensuring easy integration into existing enclosures.

Functions and equipment in detail

The module features a contact configuration with 5 normally closed contacts and 1 normally open contact, enabling a maximum of 6 output contacts. The contacts are forced-guided, meaning the normally open contact is mechanically linked to the normally closed contacts, allowing exact monitoring of its state (open/closed). This is particularly important in safety-critical applications to ensure all contacts switch correctly. The connection technology includes fixed screw terminals, ensuring a secure and durable connection. Alternatively, removable spring-loaded terminals and removable screw terminals are available, enabling flexible installation.

Technology explained simply

The nominal voltage of DC 24 V is a common voltage in industrial control technology, designated for the relay's operating voltage. The thermal current Ith is up to 5 A per contact, indicating the maximum current load the relay can withstand continuously. The switching capacity is up to 1250 VA (AC) or 200 W (DC), with switching voltages up to DC 250 V and AC 400 V. The pickup time is typically 20 ms, and the drop-out time is 15 ms, enabling fast response to control signals. The mechanical life is at least 20 million switching operations, indicating high robustness and longevity.

Compatibility and accessories

The device is designed for use in enclosures and conforms to the enclosure form for enclosure mounting. The connection terminals are designed for conductor cross-sections up to 2.5 mm² solid (DIN 46228-1/-2/-3/-4) or 1.5 mm² stranded wire with ferrule and plastic collar. Optional plug-in terminal blocks are available, enabling quick replacement of the device. The CCC (China Compulsory Certification) approval is specified, allowing use in markets requiring this certification.

Mounting and installation

Mounting is performed in standard control panels with 35-mm pitch. The fixed screw terminal ensures a secure and durable connection of the wires. The module width of 22.5 mm corresponds to the standard for DIN control panels, allowing seamless integration into existing enclosures. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature ranges from -40 °C to +60 °C, making the device suitable for use in demanding climatic environments.

Advantages in operation

The forced-guided contacts provide high safety, as the relay's state can be monitored via the normally open contact. The maximum of 6 contacts enables flexible distribution of control signals. The high mechanical life and robust construction ensure long operational life with minimal maintenance. The use of screw terminals guarantees a secure and reliable electrical connection that remains stable even under vibration. The CCC certification expands the device's usability in international markets.

Technical data
ConnectionPluggable cage clamp terminals, Pluggable screw terminals, Screw terminals
Enclosure designSwitch cabinet
Output contacts max.1 NC contact, 5 NO contacts
Thermal current Ith max.5 A
Width22,5 mm
TypeLG 3096
Variant
Contact equipping5 NO contacts, 1 NC contact
Nominal voltageDC 24 V
Terminal typescrew terminal fixed
Approvals and MarkingsCCC


Product data sheet
Datasheet for Dold 0056147, EAN: 4030641561475

Questions & answers

What is the delivery time of Dold 0056147 LG3096.60 DC24V coupling module ?

The article Dold 0056147 LG3096.60 DC24V coupling module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0056147 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0056147 LG3096.60 DC24V coupling module always at the best possible price. We can give you a discount of 2% on Dold 0056147 LG3096.60 DC24V coupling module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0056147 LG3096.60 DC24V coupling module we can offer you a price of 123,05 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
