Dold 0055975 MK9163N.12/100 AC/DC24V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0055975 MK9163N.12/100 AC/DC24V thermistor motor protection relay
( 4.1 / 5 ) 17 ratings

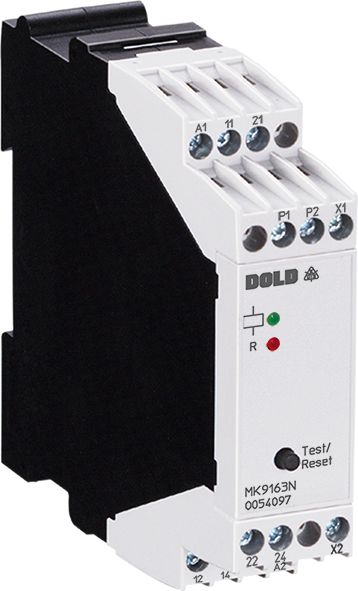

Dold 0055975
This image may differ from the desired article.
98,77 EUR
( 117,54 EUR incl. VAT )
≈ £82.67  |  ≈ $108.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0055975 MK9163N.12/100 AC/DC24V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:1312755
Mfg Part No: 0055975
UPC/EAN: 4030641559755
Weight:0.185 kg
Type:MK9163N.12/100 AC/DC24V
Graduated prices net
From piecesPrice per pieces
697,29 EUR
1295,81 EUR
2494,33 EUR
3692,84 EUR

Product information for Dold 0055975:

The Thermistor motor protection relay MK9163N.12/100 AC/DC24V from Dold is designed for protecting electric motors against thermal overloads. It monitors the temperature of motors, as well as bearings, gearboxes, oils, and coolants, to prevent damage caused by high switching frequency, heavy start-up, single-phase operation, impaired cooling, or high ambient temperature. The device is designed for use in enclosures and has a width of 22.5 mm, making it suitable for standard control panels. The classification as Thermistor motor protection refers to the use of thermistors as temperature sensors, which trigger a response when a critical temperature is reached or if there is a fault in the sensor circuit.

Applications
This relay is used in industrial plants where reliable temperature monitoring of electric drives is required. It is particularly suitable for applications where motors are operated under high thermal stress, such as in conveyor systems, pumps, fans, or machines with high switching frequency. The ability to monitor up to six thermistors on a single input enables monitoring of multiple points within a motor or machine. Applications range from simple temperature control to fault localization in complex systems.

Functions and equipment in detail
The device detects temperature exceedance, wire break in the sensor circuit, and short circuit in the sensor circuit. Upon detection of a fault, the output contact is activated, triggering a shutdown or warning signal. The output contacts consist of 2 changeover contacts, enabling flexible wiring. The function is based on the standby current principle, where the output relay is not activated in the event of a fault, but only switches to the output state when a fault occurs. This increases reliability and prevents false alarms.

Technology explained simply
The relay input is designed for connecting up to six thermistors. The trigger values range from 3.2 to 3.8 kΩ, and the reset value ranges from 1.5 to 1.8 kΩ. In case of a break in the measurement circuit, a value above 3.8 kΩ is detected. The measurement circuit load is less than 5 mW at a resistance of 1.5 kΩ, and the measurement voltage is limited to a maximum of 2 V. The auxiliary voltage is AC/DC 24 V, with additional voltages such as AC 110, 230, or 400 V also supported. Voltage ranges are defined: for AC, 0.8 to 1.1 times the nominal voltage; for DC (depending on residual ripple), 0.9 to 1.25 times or 0.8 to 1.1 times. The nominal consumption is 1.5 VA for AC and 0.85 W for DC. The switching-on delay is less than 40 ms, and the switching-off delay is less than 100 ms.

Compatibility and accessories
The relay complies with standards EN 60947-5-1 and EN 60947-8. It has approvals such as UL-rec. C/US, UKCA, and CCC, enabling use in various markets. The connection terminals are fixed screw terminals designed for conductor cross-sections of 2 x 1.5 mm² stranded wire with sleeve and plastic collar, or 2 x 2.5 mm² solid wire, according to DIN 46 228-1/-2/-3/-4. Optional plug-in connection blocks are available, enabling quick device replacement. The remote RESET function via X1/X2 can be activated via a normally closed contact (potential- and voltage-free). The LED indicator shows the auxiliary voltage and contact position.

Mounting and installation
The device is intended for installation in enclosures and is connected via the fixed screw terminals. Mounting is done in standard control panels with a width of 22.5 mm. The connection terminals are designed for use with stranded or solid conductors. Connection designations are clearly defined: A1/A2 for auxiliary voltage, P1/P2 for the measurement circuit, X1/X2 for the remote RESET function. The Test/Reset button enables both fault acknowledgment and test function during normal operation.

Advantages in operation
Rapid fault localization and reliable temperature monitoring are key advantages. The device stores the fault condition even if the temperature returns to normal, which applies to variants with fault memory. The output contacts can be reset via the Test/Reset button, by briefly bridging X1/X2, or by interrupting the auxiliary voltage. The LED indicator provides visual feedback on the operating status. The mechanical life is at least 30 million switching operations, and the electrical life at 4 A, AC 230 V, cosϕ = 0.6 is 1.5 million switching operations. Short-circuit resistance is defined according to IEC/EN 60947-5-1, with a 6 A gG/gL fuse required for openers and a 10 A gG/gL fuse for closers. The device is designed for continuous operation and can be used at operating temperatures from -20 to +60 °C. The maximum permissible altitude is 2000 m above sea level. Insulation values correspond to pollution degree 4, suitable for industrial environments.

Approvals and markings
The device carries approvals UL-rec. C/US, UKCA, and CCC, enabling use in various countries. Compliance with standards EN 60947-5-1 and EN 60947-8 ensures electrical safety and functionality. The auxiliary voltage is AC/DC 24 V, with additional voltages such as AC 110, 230, or 400 V also supported. Voltage ranges are defined: for AC, 0.8 to 1.1 times the nominal voltage; for DC (depending on residual ripple), 0.9 to 1.25 times or 0.8 to 1.1 times. The nominal consumption is 1.5 VA for AC and 0.85 W for DC. The switching-on delay is less than 40 ms, and the switching-off delay is less than 100 ms.

Functions and equipment in detail
The device detects temperature exceedance, wire break in the sensor circuit, and short circuit in the sensor circuit. Upon detection of a fault, the output contact is activated, triggering a shutdown or warning signal. The output contacts consist of 2 changeover contacts, enabling flexible wiring. The function is based on the standby current principle, where the output relay is not activated in the event of a fault, but only switches to the output state when a fault occurs. This increases reliability and prevents false alarms.

Technology explained simply
The relay input is designed for connecting up to six thermistors. The trigger values range from 3.2 to 3.8 kΩ, and the reset value ranges from 1.5 to 1.8 kΩ. In case of a break in the measurement circuit, a value above 3.8 kΩ is detected. The measurement circuit load is less than 5 mW at a resistance of 1.5 kΩ, and the measurement voltage is limited to a maximum of 2 V. The auxiliary voltage is AC/DC 24 V, with additional voltages such as AC 110, 230, or 400 V also supported. Voltage ranges are defined: for AC, 0.8 to 1.1 times the nominal voltage; for DC (depending on residual ripple), 0.9 to 1.25 times or 0.8 to 1.1 times. The nominal consumption is 1.5 VA for AC and 0.85 W for DC. The switching-on delay is less than 40 ms, and the switching-off delay is less than 100 ms.

Compatibility and accessories
The relay complies with standards EN 60947-5-1 and EN 60947-8. It has approvals such as UL-rec. C/US, UKCA, and CCC, enabling use in various markets. The connection terminals are fixed screw terminals designed for conductor cross-sections of 2 x 1.5 mm² stranded wire with sleeve and plastic collar, or 2 x 2.5 mm² solid wire, according to DIN 46 228-1/-2/-3/-4. Optional plug-in connection blocks are available, enabling quick device replacement. The remote RESET function via X1/X2 can be activated via a normally closed contact (potential- and voltage-free). The LED indicator shows the auxiliary voltage and contact position.

Mounting and installation
The device is intended for installation in enclosures and is connected via the fixed screw terminals. Mounting is done in standard control panels with a width of 22.5 mm. The connection terminals are designed for use with stranded or solid conductors. Connection designations are clearly defined: A1/A2 for auxiliary voltage, P1/P2 for the measurement circuit, X1/X2 for the remote RESET function. The Test/Reset button enables both fault acknowledgment and test function during normal operation.

Advantages in operation
Rapid fault localization and reliable temperature monitoring are key advantages. The device stores the fault condition even if the temperature returns to normal, which applies to variants with fault memory. The output contacts can be reset via the Test/Reset button, by briefly bridging X1/X2, or by interrupting the auxiliary voltage. The LED indicator provides visual feedback on the operating status. The mechanical life is at least 30 million switching operations, and the electrical life at 4 A, AC 230 V, cosϕ = 0.6 is 1.5 million switching operations. Short-circuit resistance is defined according to IEC/EN 60947-5-1, with a 6 A gG/gL fuse required for openers and a 10 A gG/gL fuse for closers. The device is designed for continuous operation and can be used at operating temperatures from -20 to +60 °C. The maximum permissible altitude is 2000 m above sea level. Insulation values correspond to pollution degree 4, suitable for industrial environments.

Technical data
Auxiliary voltageAC, AC/DC
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3.8 kΩ
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9163N
Variant
Contact equipping2 changeover contacts
Nominal voltageAC/DC 24 V
Terminal typefixed terminal blocks with screw terminals
Approvals and MarkingsUL-rec. C/US, UKCA, CCC
VariantWith RESET and test function via built in button and X1/X2


Product data sheet
Datasheet for Dold 0055975, EAN: 4030641559755
