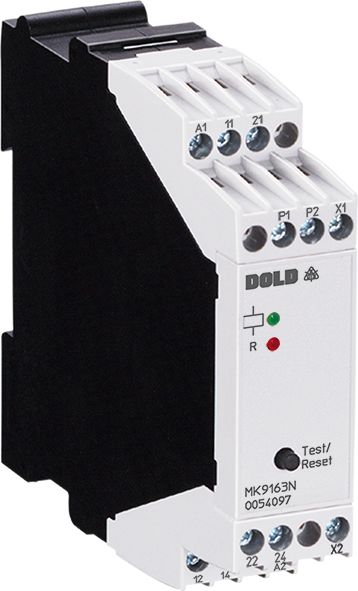

Dold 0055974 MK9163N.12 AC/DC24V thermistor motor protection relay

Your rating:
Average rating
product review for Dold 0055974 MK9163N.12 AC/DC24V thermistor motor protection relay
( 4.5 / 5 ) 29 ratings
Dold 0055974
This image may differ from the desired article.
93,57 EUR
( 111,35 EUR incl. VAT )
≈ £78.32  |  ≈ $102.83
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0055974 MK9163N.12 AC/DC24V thermistor motor protection relay
Datasheet:file_download Download
Lieske Part No.:1312757
Mfg Part No: 0055974
UPC/EAN: 4030641559748
Weight:0.185 kg
Type:MK9163N.12 AC/DC24V
Graduated prices net
From piecesPrice per pieces
692,17 EUR
1290,76 EUR
2489,36 EUR
3687,96 EUR

Product information for Dold 0055974:

The Thermistor motor protection relay MK9163N.12 AC/DC24V from Dold is an enclosure device for temperature monitoring of electric motors and other machine components such as bearings, gearboxes, oils or coolants. It protects against thermal overloads caused by high switching frequency, heavy start-up, single-phase operation, impaired cooling or high ambient temperature. The device monitors up to six thermistors via a common input and responds with a fault condition when the pickup temperature is reached or if there is a break in the sensor circuit. The output contacts consist of two changeover contacts, which are not activated in the event of a fault (rest current principle), ensuring the system is safely shut down in case of failure. The auxiliary voltage is AC/DC 24 V, with higher voltages such as AC 110, 230 or 400 V also supported, however within a voltage range of 0.8 to 1.1 times the rated voltage. The width is 22.5 mm, enabling compact mounting in standard control panels.

Applications
This device is primarily designed for use in industrial plants where reliable temperature monitoring of motors and mechanical components is required. It is particularly suitable for applications with high thermal loads, such as in conveyor technology, packaging industry or machine building. The ability to monitor up to six thermistors in parallel enables comprehensive monitoring of multiple points within a machine. The LED indicator for auxiliary voltage and contact position supports quick fault localization during operation.

Functions and equipment in detail
The MK9163N.12 detects temperature exceedances as well as wire breaks or short circuits in the sensor circuit. The pickup value is between 3.2 and 3.8 kΩ, and the reset value is between 1.5 and 1.8 kΩ. In case of a break in the measurement circuit, a resistance > 3.8 kΩ is detected. The measurement circuit load is less than 5 mW at a resistance of 1.5 kΩ, and the measurement voltage is limited to ≤ 2 V. The device operates on the rest current principle, meaning the output contacts are not activated in the event of a fault. The output contacts are configured as two changeover contacts, with switching capacities specified as AC 15 (normally open: 1.5 A / AC 230 V, normally closed: 1 A / AC 230 V) and DC 13 (1 A / DC 24 V). The electrical life expectancy is at least 1.5 million switching operations at 4 A, AC 230 V and cosϕ = 0.6, while the mechanical life expectancy is at least 30 million switching operations.

Technology explained simply
The device monitors temperature via thermistors, which change their resistance with temperature. When the pickup temperature is reached (corresponding to a resistance of 3.2 to 3.8 kΩ) or in case of a wire break (> 3.8 kΩ), the relay switches the output contacts. The LED indicator signals the operating status of the auxiliary voltage and the position of the contacts. The terminal type consists of fixed screw terminal blocks, suitable for conductor cross-sections of 2 x 1.5 mm² stranded wire with ferrule and plastic collar or 2 x 2.5 mm² solid (DIN 46 228-1/-2/-3/-4). The maximum bridging time in case of auxiliary voltage failure is 20 ms, the switching-on delay is < 40 ms, and the switching-off delay is < 100 ms.

Compatibility and accessories
The device is specified according to EN 60947-5-1 and EN 60947-8 and has approvals such as UL-rec. C/US, UKCA and CCC. It is designed for use in enclosures and can be combined with plug-in terminal blocks (optional) for quick replacement. The MK9163N.12 variant is supplied without a reset button. Remote reset is possible via connections X1/X2, using a potential- and voltage-free normally closed contact. The input side is not galvanically separated from the measurement input P1/P2.

Mounting and installation
The device is mounted in enclosures and requires a width of 22.5 mm. The terminal connections are designed for the specified conductor cross-sections. The auxiliary voltage is connected via A1/A2, and the thermistors via P1/P2. The output contacts are available via connections 11-12, 11-14, 21-22, 21-24. Mounting is for continuous operation, with an operating temperature range of -20 °C to +60 °C and a storage temperature range of -20 °C to +60 °C. The maximum operating altitude is 2000 m above sea level.

Advantages in operation
Reliable temperature monitoring enables early detection of overloads and prevents damage to motors and other machine components. The LED indicator supports quick fault localization. The high contact life and robust construction ensure long service life. Compatibility with various auxiliary voltages and the possibility of remote reset increase flexibility in industrial applications. The device is designed for continuous operating conditions and complies with applicable standards for switching devices.

Technical data
Auxiliary voltageAC, AC/DC
ClassificationThermistor-Motorschutz
Enclosure designSwitch cabinet
Measuring range max.> 3.8 kΩ
Output contacts2 C/O contacts
Width22,5 mm
TypeMK 9163N
Variant
Contact equipping2 changeover contacts
Nominal voltageAC/DC 24 V
Terminal typefixed terminal blocks with screw terminals
Approvals and MarkingsUL-rec. C/US, UKCA, CCC
VariantWithout RESET


Product data sheet
Datasheet for Dold 0055974, EAN: 4030641559748
