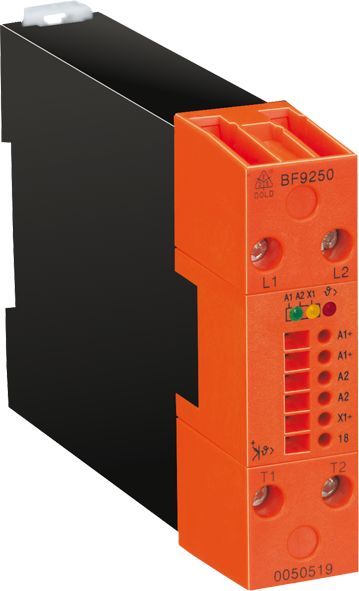

Dold 0055574 BF9250.03 UH=AC/DC24V 3xAC 10A semiconductor contactor AC24-480V
|
336,09 EUR |
|||||||||||
|
( 399,95 EUR incl. VAT ) ≈ £281.31 | ≈ $369.36 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 389920 | ||||||||||
| Mfg Part No: | 0055574 | ||||||||||
| UPC/EAN: | 4030641555740 | ||||||||||
| Weight: | 0.608 kg | ||||||||||
| Type: | BF9250.03UH=AC/DC24V3xAC10A | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0055574:
Applications
The contactor is designed for operation in industrial environments where reliable and low-maintenance control of AC loads is required. It is particularly suitable for applications where mechanical contactors are unsuitable due to noise or maintenance requirements. The load voltage ranges from AC 24 V to AC 480 V, with a maximum load current per phase of 10 A. The overall configuration includes three poles, enabling three-phase load control. Control is achieved via an auxiliary voltage of AC/DC 24 V, and digital control is also possible through control input X1 with low current consumption, for example, for integration into control systems such as PLCs.
Functions and Features in Detail
A key feature of the device is the integrated temperature monitoring of the power semiconductors, signaled via an alarm output. This output enables external monitoring of the operating status and can be integrated into safety or alarm circuits. The monitoring is designed to reset automatically after a cooling phase, and a brief interruption of the supply voltage at terminals A1/A2 can also reset the overtemperature detection memory. Protection is provided by varistors, which safeguard against overvoltage and extend the device's service life.
Technology Explained Simply
The semiconductor technology in the BF9250.03UH enables contactless switching, thereby avoiding mechanical wear typical of conventional electromechanical contactors. Switching occurs at the zero crossing of the voltage, minimizing spark generation and electromagnetic interference. The integrated temperature monitoring ensures that operation is interrupted in case of overheating of the semiconductors to prevent damage. LED indicators (green for operating voltage, red for overtemperature) provide visual feedback on the operating status.
Compatibility and Accessories
The device complies with standards IEC/EN 60947-4-2 and IEC/EN 60947-4-3 and carries the UL-listed C/US certification, enabling its use in specific markets, particularly in North America. It is available in various configurations, including 1-, 2-, and 3-pole variants, with widths of 22.5 mm, 45 mm, or 90 mm depending on the model. The described variant BF9250.03UH is specifically designed for 3-pole applications. Control is via terminals A1/A2, with an optional control input X1 available for low current consumption.
Mounting and Installation
Mounting is on a DIN rail, enabling quick and secure installation in enclosures. Connections are clearly labeled: L1, L2, L3 for mains connections, T1, T2, T3 for load outputs, A1/A2 for operating voltage, and X1 for the optional control input. The alarm output is available at terminal 18. Terminal designations are detailed in the datasheet to ensure error-free installation.
Operational Advantages
The BF9250.03UH offers high operational reliability thanks to integrated temperature monitoring and the alarm output. Contactless switching ensures long service life and minimizes maintenance requirements. Zero-voltage switching reduces electromagnetic interference and enables quiet operation. Compatibility with PLC systems via control input X1 simplifies integration into automated installations. The UL-listed C/US certification expands its application scope in international markets.
| Technical data | |
| Approvals | UL |
| Load current up to | 50 A |
| Load voltage up to | AC 480 V |
| Number of poles | 1-pole, 2-pole, 3-pole |
| On/Off Input Control | AC/DC, DC |
| Width | 22,5 mm, 45 mm, 90 mm |
| Type | BF 9250 |
| Signalling output | |
| Temperature monitoring | |
| Variant | |
| Auxiliary voltage | AC/DC 24 V |
| Contact equipping | with signal contact |
| Load current | 3 x AC 10 A |
| Load voltage | AC 24 - 480 V |
| Semiconductor output | 3-pole |
| Approvals and Markings | UL-listed C/US |
| Variant | Switching at zero crossing. |
Questions & answers
What is the delivery time of Dold 0055574 BF9250.03 UH=AC/DC24V 3xAC 10A semiconductor contactor AC24-480V ?
The article Dold 0055574 BF9250.03 UH=AC/DC24V 3xAC 10A semiconductor contactor AC24-480V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0055574 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0055574 BF9250.03 UH=AC/DC24V 3xAC 10A semiconductor contactor AC24-480V always at the best possible price. We can give you a discount of 2% on Dold 0055574 BF9250.03 UH=AC/DC24V 3xAC 10A semiconductor contactor AC24-480V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0055574 BF9250.03 UH=AC/DC24V 3xAC 10A semiconductor contactor AC24-480V we can offer you a price of 331,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
