Dold 0055565 BL5922.08/034 DC24V emergency stop monitor

Your rating:
Average rating
product review for Dold 0055565 BL5922.08/034 DC24V emergency stop monitor
( 4.7 / 5 ) 7 ratings
Dold 0055565
This image may differ from the desired article.
863,24 EUR
( 1.027,26 EUR incl. VAT )
≈ £722.53  |  ≈ $948.70
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0055565 BL5922.08/034 DC24V emergency stop monitor
Datasheet:file_download Download
Lieske Part No.:1313035
Mfg Part No: 0055565
UPC/EAN: 4030641555658
Weight:0.52 kg
Type:BL5922.08/034 DC24V
Graduated prices net
From piecesPrice per pieces
3850,29 EUR
6837,34 EUR
9824,39 EUR
12811,45 EUR

Product information for Dold 0055565:

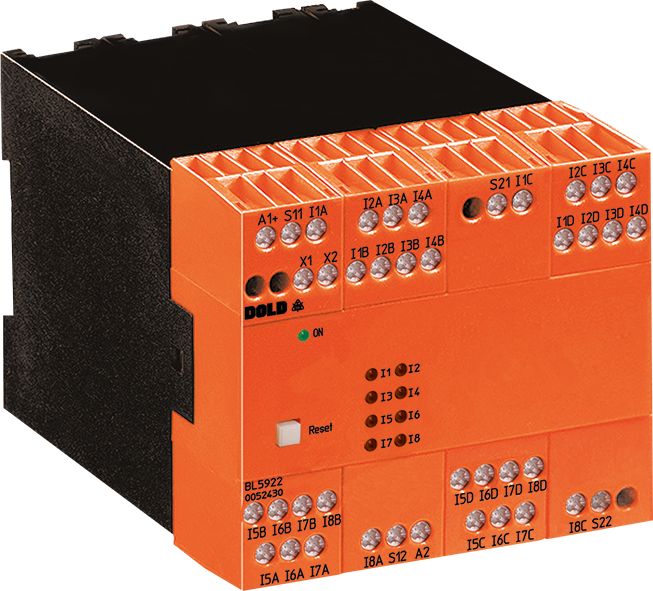

The Dold BL5922.08/034 DC24V is an emergency stop monitor from the SAFEMASTER series, specifically designed for monitoring emergency stop buttons in industrial systems. The device is used for safe detection and signaling of emergency stop commands in machines, production lines, and automated manufacturing systems. It enables 2-channel monitoring of up to 8 emergency stop buttons, which can be directly connected to the device. The nominal voltage is DC 24 V, and the width of the device is 90 mm, making it suitable for mounting in standard control panels.

Applications

The emergency stop monitor is used in safety circuits of conveyor systems, packaging machines, and automated manufacturing systems. It enables localization of the triggered emergency stop actuator, allowing for quick fault analysis and system restart. The application is in environments where reliable and unambiguous signaling of emergency stop conditions is required, for example in the packaging industry, automotive manufacturing, or food processing.

Functions and Equipment in Detail

The device offers 2-channel monitoring with cross-fault-safe design, ensuring safe detection of faults in the emergency stop system. The emergency stop buttons are connected in series, so that when multiple buttons are activated, only the first in the chain is signaled. The status indication is provided via LEDs, which glow green when buttons are not activated and turn off when activated. A RESET button and a remote RESET allow for quick system reactivation. The memory behavior is adjustable: without bridge X1/X2, memory behavior is activated; with bridge X1/X2, it is deactivated.

Technology Explained Simply

The technology of the BL5922.08/034 is based on a serial arrangement of emergency stop buttons, connected via inputs I1A to I8A and I1B to I8B. The output signals are provided via a BCD-coded output with positive logic, enabling unambiguous identification of the triggered button. The CANopen interface is not galvanically isolated and complies with DS301 version 3.0, facilitating integration into existing fieldbus systems. The maximum number of inputs is 16, with expansion possible in steps of 8 or 16 inputs.

Compatibility and Accessories

The device is designed for direct connection of emergency stop buttons in 2-channel configuration. It is compatible with systems requiring BCD-coded output or a CANopen interface. Wiring of the emergency stop buttons is simple and requires no additional components. Use in combination with other devices from the SAFEMASTER series is possible, especially in configurations requiring cross-fault-safe 2-channel monitoring.

Mounting and Installation

Mounting is done in standard control panels with a width of 90 mm. Connections are clearly labeled, and wiring of the emergency stop buttons is done directly to the device inputs. Configuration of the memory behavior is done via bridge X1/X2, where the position of the bridge affects functionality. Installation requires no special tools or additional components.

Advantages in Operation

Operation of the emergency stop monitor is characterized by clear status indication via LEDs and unambiguous localization of the triggered button. Simple wiring and the remote RESET function increase efficiency during system restart. The adjustable memory function enables precise tracking of emergency stop events, which is beneficial for maintenance and safety inspections. Integration into existing CANopen systems is facilitated by the DS301-compliant interface.

Technical data
1- / 2-channel1, 2
Inputs max.16
Width90 mm
TypeBL 5922
Variant
Connection facilitiesdual-channel for 8 emergency stop buttons
Nominal voltageDC 24 V
VariantCANopen interface not galvanic separated. Connection of e-stop button 2-channel, 2-channel monitoring when cross fault monitoring. With BCD output, high active


Product data sheet
Datasheet for Dold 0055565, EAN: 4030641555658

Questions & answers

What is the delivery time of Dold 0055565 BL5922.08/034 DC24V emergency stop monitor ?

The article Dold 0055565 BL5922.08/034 DC24V emergency stop monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0055565 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0055565 BL5922.08/034 DC24V emergency stop monitor always at the best possible price. We can give you a discount of 2% on Dold 0055565 BL5922.08/034 DC24V emergency stop monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0055565 BL5922.08/034 DC24V emergency stop monitor we can offer you a price of 850,29 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
