Dold 0055387 MK7873N.82/61 AC/DC24-240V 15-300S time relay delayed reset

Your rating:
Average rating
product review for Dold 0055387 MK7873N.82/61 AC/DC24-240V 15-300S time relay delayed reset
( 4.6 / 5 ) 9 ratings
Dold 0055387

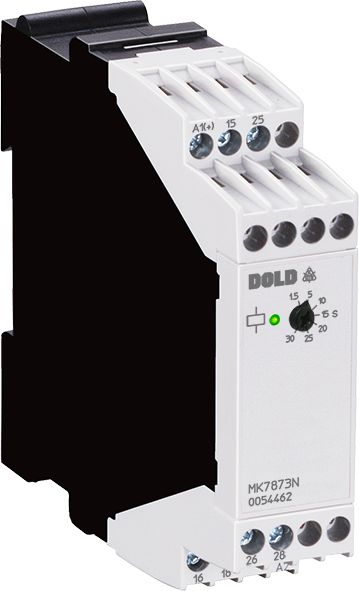

This image may differ from the desired article.
179,43 EUR
( 213,52 EUR incl. VAT )
≈ £150.18  |  ≈ $197.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0055387 MK7873N.82/61 AC/DC24-240V 15-300S time relay delayed reset
Datasheet:file_download Download
Lieske Part No.:804886
Mfg Part No: 0055387
UPC/EAN: 4030641553876
Weight:0.152 kg
Type:MK7873N.82AC/DC24-240V15-300S
Graduated prices net
From piecesPrice per pieces
5178,08 EUR
10176,74 EUR
15175,39 EUR
20174,05 EUR

Product information for Dold 0055387:

The Dold time relay MK7873N.82AC/DC24-240V15-300S is an industrial-grade, drop-out delayed time relay designed for use in enclosures. It is used for time-delayed control of electrical loads, particularly in applications where a delay is required before the contacts return to their rest position after switching off the control voltage. The device is rated for a nominal voltage range of AC/DC 24 to 240 V and offers a time range of 15 to 300 seconds. The contact configuration includes two changeover contacts that switch with delay, with the delay occurring after the control voltage is switched off. The width is 22.5 mm, enabling compact mounting in standard enclosures.

Applications
This time relay is designed for industrial applications and railway applications. It is particularly suitable for systems requiring safe, time-delayed switching off of loads, such as motor control, lighting systems, or safety functions. The zero-voltage holding feature ensures that the relay maintains its position even during brief power interruptions, which is important for critical installations. The certifications UL-listed C/US and UKCA confirm suitability for use in various markets, particularly in industry and rail vehicle construction.

Functions and Features in Detail
The device includes an LED indicator that visually signals the power supply status. The terminal type consists of fixed terminal blocks with screw terminals, ensuring a secure and durable connection. Connection options include stranded wires up to 1.5 mm² with ferrules and plastic sleeves, as well as solid conductors up to 2.5 mm² in accordance with DIN 46228-1/-2/-3/-4. The repeatability is less than ±0.5 %, ensuring high precision in time control. The time function is drop-out delayed without control signal, meaning the delay begins when the control voltage is switched off, and the contacts return to their rest position only after the set time has elapsed.

Technology Explained Simply
The drop-out delayed function means that the relay contacts do not return to their initial position immediately after switching off the control voltage, but only after a set delay time. This is useful, for example, to avoid switching off a motor immediately, but only after a specific time, to prevent mechanical stress. The zero-voltage holding feature ensures that the relay maintains its position even during brief power interruptions, which is important for safety in critical installations. The LED indicator serves as a visual confirmation of the operating voltage and facilitates troubleshooting in case of faults.

Compatibility and Accessories
The relay is designed for use in enclosures and can be combined with optional plug-in terminal blocks. These allow for quick replacement of the device without disconnecting the wiring. Compatibility with various voltages in the range AC/DC 24 to 240 V expands its application possibilities in different electrical systems. The certifications UL-listed C/US and UKCA confirm compliance with applicable safety and quality standards.

Mounting and Installation
Mounting is done in an enclosure using the provided mounting elements. The width of 22.5 mm allows for compact placement. The screw terminals enable a secure and reliable connection of the wires. The delay time is adjusted via a rotary control located on the front of the device. The connection terminals are clearly labeled to ensure error-free installation.

Operational Advantages
The high repeatability of less than ±0.5 % ensures reliable and precise time control. The zero-voltage holding feature increases safety in critical installations. The LED indicator facilitates visual monitoring of the operating status. The combination of screw terminals and optional plug-in terminal blocks offers flexibility during installation and maintenance. The compact design with a width of 22.5 mm optimizes space requirements in the enclosure. The certifications UL-listed C/US and UKCA ensure suitability for use in various markets.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Off-delay, without control signal
Width22,5 mm
TypeMK 7873N
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 24 - 240 V
Terminal typefixed terminal blocks with screw terminals
Time range15 - 300 s
Approvals and MarkingsUL-listed C/US, UKCA
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0055387, EAN: 4030641553876
