Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M

Your rating:
Average rating
product review for Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M
( 4.3 / 5 ) 10 ratings
Dold 0055315
This image may differ from the desired article.
278,29 EUR
( 331,17 EUR incl. VAT )
≈ £232.93  |  ≈ $305.84
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M
Datasheet:file_download Download
Lieske Part No.:1583188
Mfg Part No: 0055315
UPC/EAN: 4030641553159
Weight:0.172 kg
Type:IL5880.12/200 AC50-400HZ 480-500V
Graduated prices net
From piecesPrice per pieces
4274,12 EUR
8269,94 EUR
12265,77 EUR
16261,59 EUR

Product information for Dold 0055315:

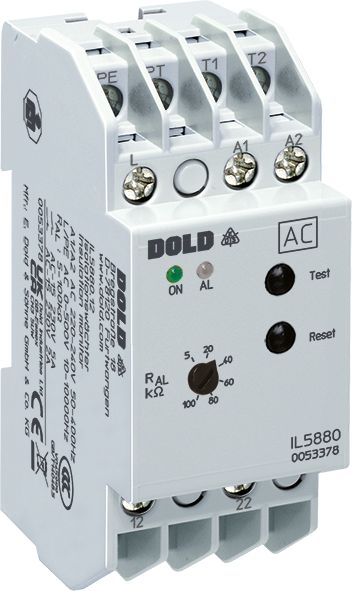

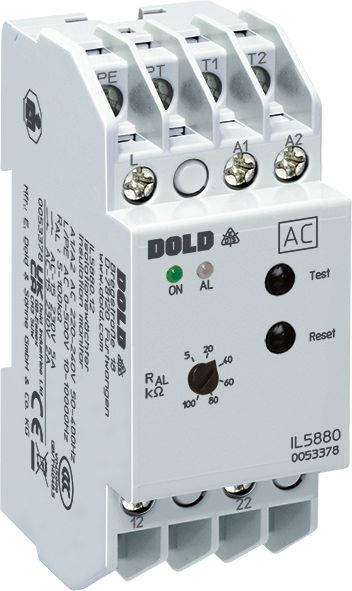

The isolation monitor IL 5880.12/200 from Dold is a device for monitoring the insulation resistance in ungrounded AC and DC networks (IT systems) with a rated voltage of AC 0 to 500 V. The device operates on the idle current principle, in which the output relays are not activated in the event of a fault, and is designed for use in industrial and railway applications. The auxiliary voltage is AC 480 to 500 V at a frequency of 50 to 400 Hz. The width is 35 mm, and the device is intended for mounting in installation distributors according to DIN 43880.

Applications
The isolation monitor is suitable for monitoring IT systems in industrial plants, enclosures, and mobile power generation units. It can also be used to monitor de-energized systems, for example, for testing motor windings in emergency equipment. The application is particularly relevant in areas where early detection of insulation faults is required to prevent fires and equipment damage.

Functions and Equipment in Detail
The device features two changeover contacts as contact configuration, used for signal transmission in the event of earth fault or pre-warning. The alarm threshold is adjustable and ranges from 5 to 100 kΩ, with an alternative version available with a range of 10 to 500 kΩ. Additionally, an adjustable pre-warning threshold from 10 kΩ to 5 MΩ is integrated, enabling early warning of an impending insulation fault. The function of the output relays is programmable, allowing selection between memory and hysteresis behavior. Indication is provided via LEDs: a green LED indicates operational readiness, a red LED signals an insulation fault, and a yellow LED lights up when the pre-warning threshold is undershot.

Technology Explained Simply
Monitoring is performed by measuring the insulation resistance between the network and earth. The auxiliary voltage enables monitoring even when the monitored system is de-energized. Galvanic isolation between the measurement circuit, auxiliary voltage, and output contacts ensures high safety. The threshold setting is adjusted via a potentiometer on the front of the device, allowing user-friendly adaptation to specific requirements. The integrated reset and test button allows manual testing and resetting of the device. Additionally, external reset and test buttons can be connected.

Compatibility and Accessories
The device is specified according to IEC/EN 61557-8 and meets the requirements for monitoring IT systems. It is available in various forms, with the IL 5880/200 variant designed for installation distributors with bottom-mounted connection terminals. Mounting is either via DIN rail or screws. The IL/SL 5880/300 variant is available for mobile power generators according to DIN VDE 0100-551. UKCA and CCC certifications are confirmed.

Mounting and Installation
Mounting is in standard installation distributors with a depth of 61 mm. The connection terminals are arranged at the bottom, facilitating integration into existing control systems. DIN rail mounting enables quick and secure fastening. Terminal markings are clearly defined: A1 and A2 for the connection terminals of the monitored IT network, PE for the protective conductor, PT for the external test button, and LT1/LT2 for external reset and test buttons.

Advantages in Operation
The isolation monitor provides preventive protection against fires and equipment damage through early detection of insulation faults. The adjustable alarm and pre-warning thresholds allow application-specific adaptation. LED indicators ensure clear visual signaling of the operational status. Galvanic isolation and the idle current principle enhance the safety and reliability of the device. Simple adjustment and the possibility of external control facilitate integration into existing monitoring systems.

Technical data
Enclosure designDistribution board
IMD typeAC
Nominal voltage IT systemAC 0 - 500 V
Response value5 - 500 kΩ
Response value typeAdjustable
Width35 mm
TypeIL 5880
Earth fault indicatorYes
Variant
Alarm value5 - 100 kOhm
Auxiliary voltageAC 480 - 500 V 50 - 400 Hz
Contact equipping2 x 1 changeover contact
Prewarning value10 kOhm - 5 MOhm
Approvals and MarkingsUKCA, CCC
VariantAdjustable alarm and pre-warning value. Programmable outputs. De-energized on trip


Product data sheet
Datasheet for Dold 0055315, EAN: 4030641553159

Questions & answers

What is the delivery time of Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M ?

The article Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0055315 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M always at the best possible price. We can give you a discount of 2% on Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0055315 IL5880.12/200 AC50-400Hz 480-500V insulation monitor 5-100k 10k-5M we can offer you a price of 274,12 EUR per piece. The more you buy, the cheaper the article will be.
