Dold 0055137 IL5882.38 AC/DC12V 10A tv=5S residual current monitor

Your rating:
Average rating
product review for Dold 0055137 IL5882.38 AC/DC12V 10A tv=5S residual current monitor
( 4.9 / 5 ) 7 ratings
Dold 0055137
This image may differ from the desired article.
312,66 EUR
( 372,07 EUR incl. VAT )
≈ £261.70  |  ≈ $343.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

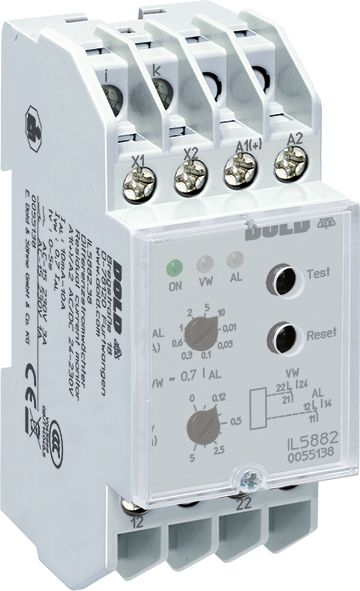

1x Dold 0055137 IL5882.38 AC/DC12V 10A tv=5S residual current monitor
Datasheet:file_download Download
Lieske Part No.:1313029
Mfg Part No: 0055137
UPC/EAN: 4030641551377
Weight:0.137 kg
Type:IL5882.38 AC/DC12V 10A tv=5S
Graduated prices net
From piecesPrice per pieces
4307,97 EUR
8303,28 EUR
12298,59 EUR
16293,90 EUR

Product information for Dold 0055137:

The Dold differential current monitor IL5882.38 is an industrial monitoring device for detecting insulation faults in earthed electrical networks. The device is designed for continuous monitoring and preventive maintenance of systems, enabling early detection of insulation degradation and alerting the operator without requiring immediate operational interruption. It is designed for use in installation and industrial distributors according to DIN 43880 and features a width of 35 mm and a depth of 63 mm. The auxiliary voltage is AC/DC 12 V, and the device is designed for alternating and pulsating direct currents, type A, according to IEC/TR 60755.

Applications

The IL5882.38 is used in systems where early fault detection is essential to prevent fire and equipment damage. It is particularly suitable for applications where immediate disconnection is not required, and only visual or electrical signaling of the fault is sufficient. Typical applications include industrial controls, machine building, building automation, and other electrical systems requiring high availability.

Functions and Equipment in Detail

The device features two relay outputs: one changeover contact for pre-alarm and one changeover contact for alarm. The pre-alarm is activated when the set threshold value is reached, while the alarm is triggered if the condition worsens further. The threshold values are adjustable in 9 steps, with measurement ranges of 0.01 to 10 A or 0.01 to 30 A. The time delay is fixed at 5 seconds and cannot be changed. The wire break detection ensures that any interruption in the measurement circuit (e.g., in an external differential current transformer) is detected, and the device responds to avoid false states.

Technology Explained Simply

The operation of the IL5882.38 is based on measuring differential currents via an external differential current transformer, such as ND 5016, ND 5019, or the hinged current transformer ND 5014. All conductors of the circuit to be monitored (excluding the protective earth conductor PE) are passed through the transformer. In a fault-free state, the sum of all currents is zero, so no voltage is induced in the transformer. In the event of an insulation fault, a fault current flows to earth, creating a current difference that is detected by the transformer and transmitted to the device. The device evaluates this current and activates the corresponding relays when the set threshold value is exceeded. The output relays operate on the de-energized principle, meaning they are not activated in the event of a fault, but only when a fault is detected.

Compatibility and Accessories

The IL5882.38 is designed for connection to external differential current transformers, particularly models ND 5016, ND 5019, and the hinged current transformer ND 5014. The connection terminals are located at the bottom and conform to the design for installation distributors. The devices are certified according to IEC/EN 62020 and carry the UKCA and CCC approvals. The LED indicators for auxiliary voltage (green), pre-alarm (red), and alarm (red) provide visual status indication. The test button is used for functional testing, and the reset button is for resetting after an alarm.

Mounting and Installation

The device is mounted in standard installation distributors with a width of 35 mm. The connection terminals are positioned at the bottom, facilitating integration into existing distributors. Mounting is carried out according to DIN 43880. The sealable transparent cover protects the adjustment switches from unintended changes and ensures safe operation.

Advantages in Operation

The IL5882.38 enables early detection of insulation faults, increasing system availability and preventing damage from fires or outages. The adjustable threshold values and time delay allow application-specific customization. The wire break detection increases system reliability, as a defective measurement circuit is immediately recognized. The clear LED display and integrated test and reset buttons simplify maintenance and diagnostics.

Technical data
Adjustable measuring ranges0,01 - 10 A, 0,01 - 30 A
ClassificationType A (AC, DC pulsating)
Enclosure designDistribution board
Type of voltageAC, DC pulsating
Width35 mm
TypeIL 5882
Broken conductor detectionYes
Clear keyYes
Operate delayYes
Relay contact / outputYes
Test keyYes
Variant
Auxiliary voltageAC/DC 12 V
Contact equipping1 changeover contact for prewarning, 1 changeover contact for alarm
Measuring range10 A
Time delay5 s
Approvals and MarkingsUKCA, CCC


Product data sheet
Datasheet for Dold 0055137, EAN: 4030641551377
