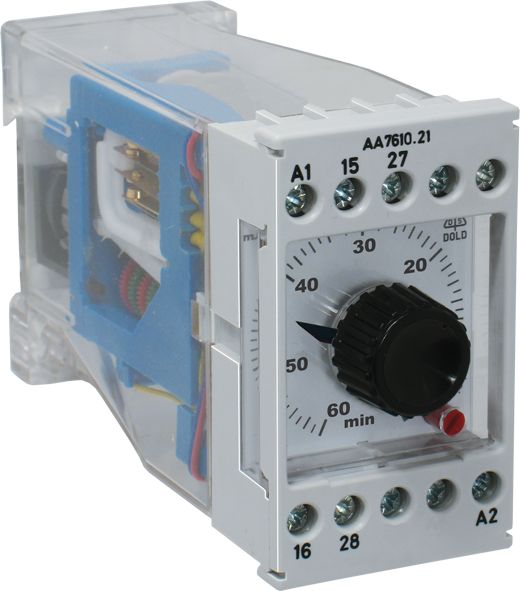

Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt

Your rating:
Average rating
product review for Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt
( 4.4 / 5 ) 9 ratings
Dold 0054872
This image may differ from the desired article.
348,63 EUR
( 414,87 EUR incl. VAT )
≈ £291.80  |  ≈ $383.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt
Datasheet:file_download Download
Lieske Part No.:1313008
Mfg Part No: 0054872
UPC/EAN: 4030641548728
Weight:0.405 kg
Type:AA7610.22/034 AC50/60HZ 230V 6H/30M
Graduated prices net
From piecesPrice per pieces
4343,40 EUR
8338,17 EUR
12332,94 EUR
16327,71 EUR

Product information for Dold 0054872:

The Dold time relay AA7610.22/034 is an on-delay relay of the MINTIMER series, designed for use in industrial control systems. It is used for time-controlled switching of devices and system components, where the delay after relay activation is programmed. The rated voltage is AC 230 V at a rated frequency of 50/60 Hz, with a voltage range between 0.8 and 1.1 times the rated voltage. The module width of 45 mm allows for installation in standard enclosures. The device is designed for continuous operation and complies with the standard EN 61812-1.

Applications
This time relay is used in systems where controlled delay during switching on is required, for example, when starting electric motors to minimize mechanical stress. It is also suitable for controlling pumps, fans, or lighting systems where time-controlled switching is necessary. The stepless adjustment via a rotary switch allows flexible adaptation to different requirements.

Functions and Equipment in Detail
The relay features contact configuration with one instantaneous closer, one delayed closer, and one delayed opener. The output contacts are rated for an operating voltage of AC 250 V. The pickup time of the contacts is less than 35 ms, and the drop-out time is less than 60 ms. The repeatability is ≤ ± 0.5 % of the scale end value, with an accuracy of ≤ ± 1 % within the 6-second range. The time progression is indicated by a red pointer on the device scale, and the switching position is shown by visual indicators.

Technology Explained Simply
The time delay operates purely mechanically, ensuring high reliability and independence from electronic components. The delay time is set via a stepless rotary switch positioned on an absolute scale. The adjustment ranges include time intervals from 0.2 to 6 seconds, 2 to 60 seconds, 0.2 to 6 minutes, 2 to 60 minutes, 0.2 to 6 hours, and 2 to 60 hours. The device is designed for a reset time of less than 150 ms, enabling rapid reset after completion of the delay.

Compatibility and Accessories
The relay is designed for use in enclosures and can be installed in standard mounting slots with a module width of 45 mm. It is rated for a nominal power consumption of 5 VA and can be operated with a maximum fuse rating of 10 A gG/gL. The contact materials consist of AgNi with a gold plating of 0.2 μm, ensuring high switching life and corrosion resistance. The electrical life is at least 100,000 switching operations at 3 A and AC 230 V, and at least 500,000 switching operations at 1 A and AC 230 V. The mechanical life exceeds 30 million switching operations or 15,000 operating hours.

Mounting and Installation
Mounting is done in enclosures using plug-in or screw fixation. The connection terminals are designed for wiring. The delay time is adjusted via the black setting pointer on the absolute scale. The operating temperature range is between -20 °C and +55 °C, and the storage temperature range is between -20 °C and +65 °C. The operating altitude is limited to a maximum of 2000 m above sea level.

Advantages in Operation
The relay offers a wide adjustment range, simple and precise setting, and high repeatability. The purely mechanical time control ensures high reliability and low maintenance requirements. The time progression indicator allows visual monitoring of the delay process. The contact configuration with delayed and instantaneous contacts enables flexible switching configurations in complex control systems. The EMC shielding according to IEC/EN 61000-4-2 to -4-6 ensures robust performance in electromagnetically noisy environments. The radio frequency interference suppression complies with emission limit class B according to EN 55011.

Technical data
Enclosure designSwitch cabinet
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width45 mm
TypeAA 7610
Variant
Contact equipping1 NO contact, 1 NO contact delayed, 1 NC contact delayed
Nominal voltageAC 230 V
Time range6 h / 30 min
VariantWith pre contact: delayed, closing


Product data sheet
Datasheet for Dold 0054872, EAN: 4030641548728

Questions & answers

What is the delivery time of Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt ?

The article Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054872 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt always at the best possible price. We can give you a discount of 2% on Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0054872 AA7610.22/034 AC 50/60 Hz 230 V 6H/30M time relay ansprechverzinkt we can offer you a price of 343,40 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
