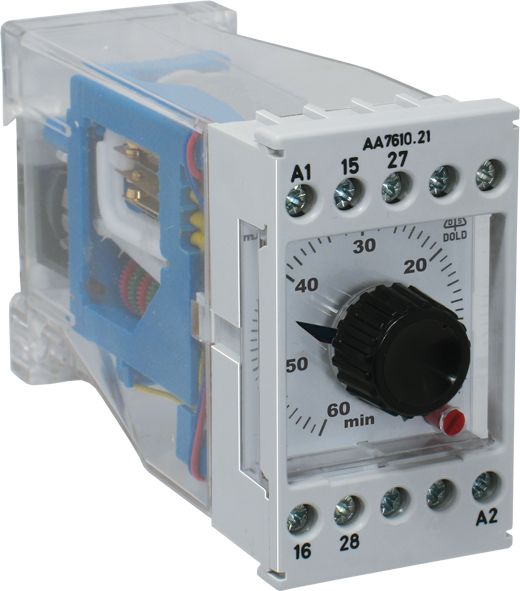

Dold 0054849 AA7610.22/034 AC 50/60 Hz 230 V 60 S/5 S time relay with delayed operation

Your rating:
Average rating
product review for Dold 0054849 AA7610.22/034 AC 50/60 Hz 230 V 60 S/5 S time relay with delayed operation
( 4.4 / 5 ) 24 ratings
Dold 0054849
This image may differ from the desired article.
330,14 EUR
( 392,87 EUR incl. VAT )
≈ £276.33  |  ≈ $362.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054849 AA7610.22/034 AC 50/60 Hz 230 V 60 S/5 S time relay with delayed operation
Datasheet:file_download Download
Lieske Part No.:881317
Mfg Part No: 0054849
UPC/EAN: 4030641548490
Weight:0.405 kg
Type:AA7610.22/034 AC50/60HZ 230V 60S/5S
Graduated prices net
From piecesPrice per pieces
4317,76 EUR
8305,38 EUR
12293,00 EUR
16280,62 EUR

Product information for Dold 0054849:

The Dold time relay AA7610.22/034 is a delayed-on time relay for use in industrial control systems. It is designed for time-controlled switching of devices and systems, with the delay being programmed after the relay activates. The unit is designed for installation in enclosures and has a width of 45 mm, making it suitable for standard control panels. The rated voltage is AC 230 V at a frequency of 50/60 Hz, with an operating voltage range between 0.8 and 1.1 times the rated voltage. The delay time can be continuously adjusted within a range of 5 to 60 seconds, with adjustment performed via a black pointer on an absolute scale. The repeatability is ≤ ± 0.5 % of the scale end value, with an accuracy of ≤ ± 1 % applying for the range up to 6 seconds. The time progression is indicated by a red pointer on the device scale, visually displaying the progress of the set delay time.

Applications
This time relay is used in industrial systems where controlled, time-delayed switching is required. Typical applications include motor start-up, time-controlled activation of auxiliary devices, or synchronization of process steps in manufacturing systems. The delayed-on function allows switching operations to be controlled so that they occur after a defined time interval following relay activation. This is particularly important to minimize mechanical stress or ensure the correct sequence of switching operations.

Functions and Features in Detail
The relay features contact configuration with one instantaneous closer, one delayed closer, and one delayed opener. The output contacts are rated for an operating voltage of AC 250 V. The contacts are made of AgNi material with a gold plating of 0.2 μm, ensuring high switching capacity and long service life. The operating time of the contacts is less than 35 ms, and the release time is less than 60 ms. The electrical life is at least 100,000 switching operations at 3 A and AC 230 V, and at least 500,000 switching operations at 1 A and AC 230 V. The mechanical life exceeds 30 million switching operations or over 15,000 operating hours.

Technology Explained Simply
The time delay is generated mechanically via a clockwork principle, driven by the energy of the applied voltage. The delay time is adjusted using a continuously variable rotary switch, which influences the speed of the clockwork mechanism. The time progression is indicated by a red pointer moving across the scale during the delay period. The reset time, i.e., the time required for the device to become ready to operate again after release, is less than 150 ms. The switching capacity according to AC 15 is 3 A at AC 230 V.

Compatibility and Accessories
The relay is designed for use in enclosures and can be installed in standard control panels with a width of 45 mm. It is rated for a nominal voltage of AC 230 V and can be operated in systems with a frequency of 50/60 Hz. The contact configuration allows use in circuits requiring both delayed and immediate switching operations. The delay time can be adjusted over a wide range from 5 to 60 seconds, enabling flexible adaptation to various applications.

Mounting and Installation
Mounting is performed in enclosures using screw fastening. The width of 45 mm corresponds to the standard for DIN control panels. The connection terminals are designed for cable connections, with maximum short-circuit strength ensured by a maximum fuse rating of 10 A gG/gL. The operating temperature range is from -20 °C to +55 °C, and the storage temperature range is from -20 °C to +65 °C. The operating altitude is limited to a maximum of 2000 m above sea level.

Operational Advantages
The relay is characterized by a wide adjustment range, simple adjustment via the rotary switch, and a purely mechanical time delay. The high repeatability and long contact life ensure reliable and low-maintenance operation. The time progression indicator allows visual monitoring of the delay process. Optional zero-voltage protection is available, enhancing safety in critical applications. Compliance with standard EN 61812-1 ensures conformity with applicable safety and functional requirements for time relays.

Technical data
Enclosure designSwitch cabinet
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width45 mm
TypeAA 7610
Variant
Contact equipping1 NO contact, 1 NO contact delayed, 1 NC contact delayed
Nominal voltageAC 230 V
Time range60 s / 5 s
VariantWith pre contact: delayed, closing


Product data sheet
Datasheet for Dold 0054849, EAN: 4030641548490
