Dold 0054848 AA7610.22/034 AC 50/60 Hz 230 V 60 M/5 M time relay ansprechverzinkt

Your rating:
Average rating
product review for Dold 0054848 AA7610.22/034 AC 50/60 Hz 230 V 60 M/5 M time relay ansprechverzinkt
( 4.3 / 5 ) 7 ratings
Dold 0054848

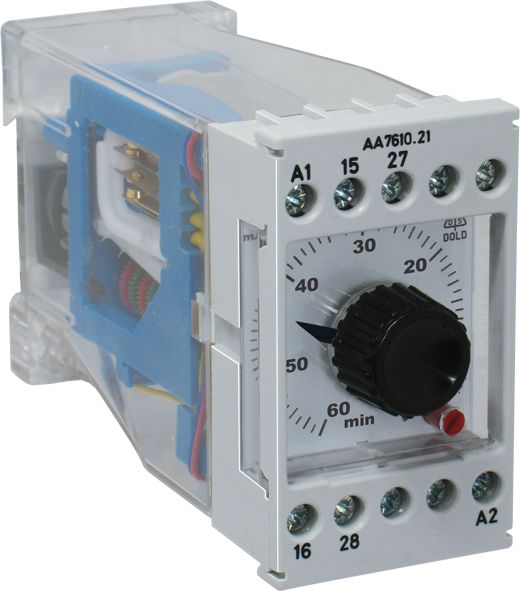

This image may differ from the desired article.
330,14 EUR
( 392,87 EUR incl. VAT )
≈ £276.33  |  ≈ $362.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054848 AA7610.22/034 AC 50/60 Hz 230 V 60 M/5 M time relay ansprechverzinkt
Datasheet:file_download Download
Lieske Part No.:245944
Mfg Part No: 0054848
UPC/EAN: 4030641548483
Weight:0.405 kg
Type:AA7610.22/034 AC50/60HZ 230V 60M/5M
Graduated prices net
From piecesPrice per pieces
4317,76 EUR
8305,38 EUR
12293,00 EUR
16280,62 EUR

Product information for Dold 0054848:

The time relay of the AA 7610 series by Dold, type AA7610.22/034, is a delay-on-make device for time-controlled operation of electrical systems. It is used in enclosures and serves, for example, to account for the starting behaviour of motors or for time-delayed activation of switching operations in industrial control systems. The delay time is set via a continuously variable rotary switch, with the setting performed using an absolute scale and a black adjustment pointer. The time progression is indicated by a red pointer on the device scale, visually displaying the progress of the delay time.

Applications
This device is designed for use in industrial control and switching systems where precise, time-delayed switching functions are required. Typical applications include switching motors, lighting systems, or other consumers where immediate switching is not desired. The delay-on-make function ensures that the contacts only switch after the set delay time has elapsed, enabling controlled commissioning of system components.

Functions and Equipment in Detail
The time relay features a contact configuration with one instantaneous make contact, one delayed make contact, and one delayed break contact. The output contacts are thus designed for various switching functions: one contact switches immediately, while the other two switch only after the set time has elapsed. The rated voltage is AC 230 V, and the rated frequency is 50/60 Hz. The voltage range coverage is 0.8 to 1.1 times the rated voltage, ensuring stable operation even with slight fluctuations in supply voltage. The repeatability accuracy is ≤ ± 0.5 % of the scale end value (≤ ± 1 % in the range up to 6 seconds), enabling high precision in repeated switching operations.

Technology Explained Simply
The time delay operates purely mechanically, offering high reliability and independence from electronic components. The delay time can be set in the range of 5 minutes to 60 minutes, adjusted via a continuously variable rotary switch. The reset time is less than 150 ms, meaning the device is ready for the next switching operation quickly after de-energisation. The contacts switch with an operating time of < 35 ms and a release time of < 60 ms, ensuring fast response. The width is 45 mm, enabling compact mounting in standard enclosures.

Compatibility and Accessories
The device is part of the MINTIMER series and can be combined with other models from the AA 7610, EC 7610, and EF 7610 series, depending on requirements for front panel space and contact configuration. The approval according to EN 61812-1 ensures compliance with standards for time relays. The switching capacity according to AC 15 is 3 A at AC 230 V, with an electrical life of at least 100,000 switching operations at 3 A and AC 230 V. The mechanical life exceeds 30 million switching operations or 15,000 operating hours.

Mounting and Installation
The device is mounted in enclosures and designed for continuous operation. The operating temperature range is from -20 °C to +55 °C, and the storage temperature range is from -20 °C to +65 °C. The operating altitude is limited to a maximum of 2000 m above sea level. Mounting is done using the designated mounting elements in the enclosure, with the width of 45 mm allowing easy placement in standard switchboards.

Operational Advantages
The continuous adjustment of the delay time via a rotary switch allows flexible adaptation to different requirements. The purely mechanical time control offers high reliability without dependence on electronic components. The time progression indication via the red pointer facilitates monitoring of the switching process. The high repeatability accuracy ensures consistent switching behaviour during repeated operations. The contact configuration with one immediate switching contact and two delayed switching contacts allows flexible switching configurations in complex control systems.

Functions and Standards
The device complies with the standard EN 61812-1 for delay-on-make time relays. EMC requirements are met, including immunity to static discharges (8 kV), high-frequency radiation (10 V/m), and fast transients (4 kV). Radio interference suppression conforms to emission limit class B according to EN 55011. Short-circuit resistance is ensured with a maximum fuse rating of 10 A gG/gL.

Note on Contact Configuration
The contact configuration includes one instantaneous make contact (1 NO), one delayed make contact (1 NO delayed), and one delayed break contact (1 NC delayed). The rated operating voltage of the contacts is AC 250 V. The thermal current rating (Ith) is 4 A, with a possible value of 10 A at 20 °C and rated voltage.

Operating Conditions
The device is designed for continuous operation. The operating temperature range is from -20 °C to +55 °C, and the storage temperature range is from -20 °C to +65 °C. The operating altitude is limited to ≤ 2000 m above sea level. The creepage and clearance distances correspond to pollution degree 2 with a rated impulse withstand voltage of 4 kV according to IEC 60664-1.

Technical data
Enclosure designSwitch cabinet
Output contacts1 NC contact, 1 NO contact
Time function(s)On-delay
Width45 mm
TypeAA 7610
Variant
Contact equipping1 NO contact, 1 NO contact delayed, 1 NC contact delayed
Nominal voltageAC 230 V
Time range60 min / 5 min
VariantWith pre contact: delayed, closing


Product data sheet
Datasheet for Dold 0054848, EAN: 4030641548483
