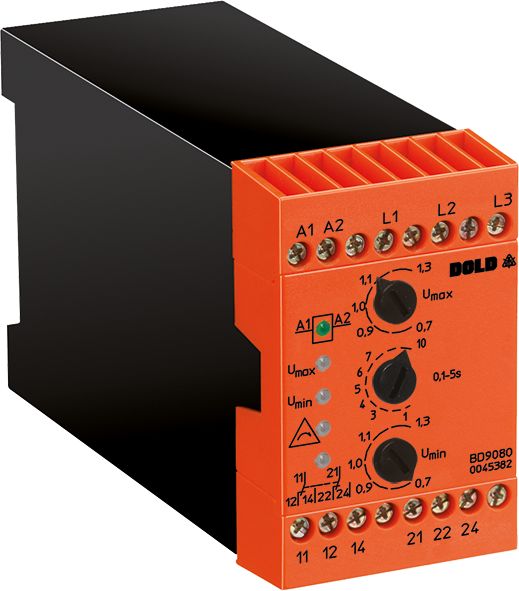

Dold 0054801 BD9080.12/001 3AC110V AC/DC80-230V phase monitor Tv=0.1-5s

Your rating:
Average rating
product review for Dold 0054801 BD9080.12/001 3AC110V AC/DC80-230V phase monitor Tv=0.1-5s
( 4.1 / 5 ) 9 ratings
Dold 0054801
This image may differ from the desired article.
435,95 EUR
( 518,78 EUR incl. VAT )
≈ £364.89  |  ≈ $479.11
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054801 BD9080.12/001 3AC110V AC/DC80-230V phase monitor Tv=0.1-5s
Datasheet:file_download Download
Lieske Part No.:979817
Mfg Part No: 0054801
UPC/EAN: 4030641548018
Weight:0.35 kg
Type:BD9080.12/001 3AC110V AC/DC80-230V
Graduated prices net
From piecesPrice per pieces
4429,41 EUR
8422,87 EUR
12416,33 EUR
16409,79 EUR

Product information for Dold 0054801:

The phase monitor BD9080.12/001 from Dold is an industrial monitoring switch for three-phase networks, designed for operation in enclosures. The device monitors the supply voltage for under-voltage, over-voltage, asymmetry, phase failure, and incorrect phase sequence. It enables early detection of disturbances in the power supply to prevent damage to connected machines and systems and to enhance operational safety. This variant is designed for an auxiliary voltage of AC/DC 80 to 230 V and operates on the operating current principle, where the output relay is activated in the event of a fault. The nominal voltage is 3AC 110 V, with a standard measurement range of 3 AC 400 V and a maximum measurement range up to 750 V.

Applications

The phase monitor BD9080 is suitable for use in industrial applications such as production lines, pump stations, air conditioning systems, or conveyor systems, where stable and continuous power supply is required. It is mounted in enclosures and monitors three-phase networks with a nominal frequency of 50/60 Hz. Monitoring is independent of whether the network is operated with or without a neutral conductor. The adjustable voltage settings range between 0.7 and 1.3 times the nominal voltage, with the range reduced to 0.8 to 1.1 times when the auxiliary voltage is drawn from the monitored network.

Functions and Equipment in Detail

The device features two changeover contacts as output contacts, used for signaling faults or controlling auxiliary devices. The pickup delay is adjustable and can be set between 0.1 and 5 seconds to avoid false tripping during short-term voltage fluctuations. The reset delay is also 0.1 to 5 seconds. The operating mode is designed for continuous operation, with an operating and storage temperature range of -20 to +60 °C. The current consumption is approximately 0.5 mA per phase (L1, L2) and 0.8 mA for L3.

Technology Explained Simply

Voltage detection is achieved through arithmetic averaging over several half-waves of the rectified phase voltages L1/L2 and L2/L3, with L3 serving as the reference phase. Asymmetry detection occurs at deviations of ±8 to ±20 % of the pickup voltage and a fault angle of approximately 120° ±15°. The hysteresis is up to 5 % of the pickup value to ensure stable switching behavior. The electrical life is 250,000 switching operations at 1 A and AC 230 V (AC 15), while the mechanical life is at least 50 million switching operations. The short-circuit withstand capability is designed for a maximum fuse rating of 4 A gG/gL.

Compatibility and Accessories

The phase monitor complies with IEC/EN 60255-1 standards and carries CCC certification. The width is 45 mm, making it suitable for standard enclosure mounting. The auxiliary voltage can be drawn from the monitored network, enhancing operational safety. Indication is provided via five LEDs: one for auxiliary voltage A1/A2, one for over-voltage (U max.), one for under-voltage (U min.), one for asymmetry, incorrect phase sequence, or network failure (Δ), and one for the contact position of the output relay.

Mounting and Installation

Mounting is carried out in an enclosure, with connection terminals provided for phase voltages (L1, L2, L3) and auxiliary voltage (A1/A2). The output contacts (11, 12, 14 and 21, 22, 24) are used to control alarm relays or other control devices. The operating altitude is limited to a maximum of 2000 m above sea level. Creepage and clearance distances comply with IEC 60664-1 requirements, with a rated impulse withstand voltage of 6 kV and pollution degree 2.

Advantages in Operation

By enabling early detection of voltage fluctuations, phase faults, and network failures, the BD9080 allows for preventive maintenance and reduces the risk of machine damage. The adjustable pickup delay prevents unnecessary tripping during short-term disturbances. The clear LED indication simplifies fault localization. The device is designed for continuous operation and offers high reliability in industrial environments. The use of two changeover contacts allows flexible integration into existing control and safety systems.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.750 V
Output contacts2 C/O contacts
Standard measuring range3 AC 400 V
Width45 mm
TypeBD 9080
Operate delayYes
Variant
Auxiliary voltageAC/DC 80 - 230 V
Contact equipping2 changeover contacts
Nominal voltage3AC 110 V
Release delay0,1 - 5 s
Approvals and MarkingsCCC
VariantEnergized on trip


Product data sheet
Datasheet for Dold 0054801, EAN: 4030641548018
