Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay

Your rating:
Average rating
product review for Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay
( 4.6 / 5 ) 9 ratings

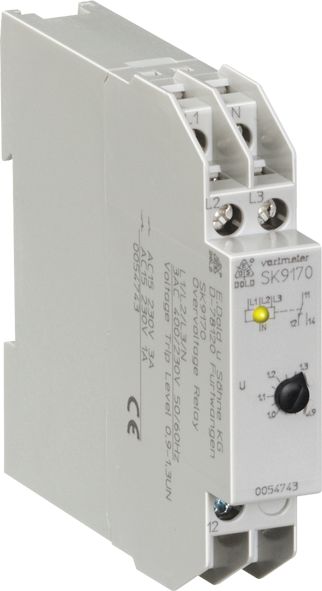

Dold 0054743
This image may differ from the desired article.
122,47 EUR
( 145,74 EUR incl. VAT )
≈ £102.51  |  ≈ $134.59
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay
Datasheet:file_download Download
Lieske Part No.:1583370
Mfg Part No: 0054743
UPC/EAN: 4030641547431
Weight:0.103 kg
Type:SK9170.11 3/N AC400/230V 0,9-1,3UN
Graduated prices net
From piecesPrice per pieces
5121,55 EUR
10120,63 EUR
15119,71 EUR
20118,80 EUR

Product information for Dold 0054743:

The Dold overvoltage relay SK9170.11 is an industrial monitoring switch for detecting overvoltages in three-phase power networks. It is designed for use in enclosures and operates on the no-current principle, whereby the output relay is not activated in the event of a fault. The device variant SK9170.11 is designed for a rated voltage of 3/N AC 400/230 V and features an adjustable pickup value in the range of 0.9 to 1.3 times the rated voltage. Monitoring is performed by measuring the arithmetic mean of each phase against the neutral conductor; in versions without a neutral conductor, phases L1 and L3 are measured against L2. Phase sequence is arbitrary, which allows for flexible installation. The device is compliant with IEC/EN 60255-1 and operates without auxiliary voltage, enabling it to function independently of additional power sources.

Applications
This relay is suitable for monitoring three-phase power networks in industrial and installation applications, particularly in enclosures. It can be used in both three-phase and single-phase networks, with the single-phase connection option enabling flexible integration into existing systems. Applications include areas where reliable voltage monitoring is required to prevent damage to connected devices or machinery.

Functions and Features in Detail
The device features a changeover contact as the output contact, rated for an operating voltage of AC 250 V. The contact material consists of AgNi 0.15 + 0.3 μm Au, ensuring high switching durability and corrosion resistance. The electrical life is at least 300,000 switching operations at AC 230 V and 1 A (cos ϕ = 0.5), while the mechanical life is at least 30 million switching operations. The short-circuit withstand capability is defined by a maximum fuse rating of 4 A gG/gL. A yellow LED indicates the contact position – it lights up when the output relay contact (11-14) is closed.

Technology Explained Simply
The device monitors voltage in a three-phase network and responds when the value exceeds the set pickup value of 0.9 to 1.3 times the rated voltage. The hysteresis is approximately 4 %, preventing the relay from switching uncontrollably due to minor voltage fluctuations. The pickup delay is activated, but in this variant configured without time delay (t1/t2). The rated power consumption is approximately 4 VA, and the device is designed for continuous operation. The frequency range coverage is between 45 and 65 Hz. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature from -25 °C to +60 °C. The relative humidity is up to 93 % at 40 °C, and the operating altitude is limited to below 2000 m.

Compatibility and Accessories
The device is manufactured in the SK 9170 form factor, featuring a depth of 98 mm and top-mounted connection terminals for enclosures with mounting plate and cable duct. The width is 17.5 mm, and mounting is done via DIN rail according to IEC/EN 60715. The connection terminals are designed for conductor cross-sections of 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrules (DIN 46228-1/-2/-3/-4). The housing is made of thermoplastic with V0 flammability rating according to UL Subject 94. The protection rating is IP 40 for the housing and IP 40 for the terminals.

Mounting and Installation
Mounting is done via DIN rail in the enclosure. The connection terminals are located at the top, enabling easy wiring. Conductor attachment is achieved via flat terminals with self-lifting connection washers (IEC/EN 60999-1), with a tightening torque of 0.8 Nm. The device dimensions are 17.5 mm width, 98 mm depth, and height adapted to the respective enclosure. Installation requires no additional auxiliary voltages, as the device connects directly to the network being monitored.

Operational Advantages
The relay provides reliable, maintenance-free monitoring of voltages in three-phase networks. The adjustable pickup voltage allows individual adaptation to specific applications. The LED indicator provides visual feedback on the operating status. The high mechanical and electrical life reduces maintenance and replacement requirements. Compliance with IEC/EN 60255-1 and EMC testing according to IEC/EN 61000-4-2 to -5 ensures stable performance in industrial environments. The IP 40 protection rating for the housing and IP 40 for the terminals protects against mechanical impacts and contact with hazardous parts.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Nominal voltage max.3/N AC 400 / 230 V
Output contacts1 C/O contact
Width17,5 mm
TypeSK 9170
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,9 - 1,3 Un
Time delaywithout
VariantWith N. NC circuit operation. Without time delay. Settable response value


Product data sheet
Datasheet for Dold 0054743, EAN: 4030641547431

Questions & answers

What is the delivery time of Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay ?

The article Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054743 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay always at the best possible price. We can give you a discount of 2% on Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054743 SK9170.11 3/N AC400/230V 0.9-1.3UN overvoltage relay we can offer you a price of 121,55 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
