Dold 0054741 SK7819.81 AC/DC110-240V 0.15-3S time relay delayed return

Your rating:
Average rating
product review for Dold 0054741 SK7819.81 AC/DC110-240V 0.15-3S time relay delayed return
( 4.6 / 5 ) 12 ratings
Dold 0054741
This image may differ from the desired article.

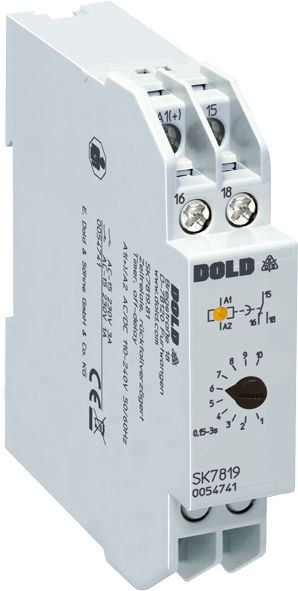

Dold 0054741Dold 0054741
130,59 EUR
( 155,40 EUR incl. VAT )
≈ £109.30  |  ≈ $143.52
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054741 SK7819.81 AC/DC110-240V 0.15-3S time relay delayed return
Datasheet:file_download Download
Lieske Part No.:1313465
Mfg Part No: 0054741
UPC/EAN: 4030641547417
Weight:0.109 kg
Type:SK7819.81 AC/DC110-240V 0,15-3S
Graduated prices net
From piecesPrice per pieces
5129,61 EUR
10128,63 EUR
15127,65 EUR
20126,67 EUR

Product information for Dold 0054741:

The Dold SK7819.81 is a drop-out delayed time relay, specifically designed for use in industrial control and automation systems. It provides precise delay when switching off loads, with the output contacts only returning to their initial position after a set time interval has elapsed. The device is rated for a nominal voltage of AC/DC 110 to 240 V and features a contact configuration with one changeover contact. The time delay can be continuously adjusted within a range of 0.15 to 3 seconds on a relative scale, with a repeatability of ≤ 1 % of the scale end value. The width of 17.5 mm allows for compact installation in enclosures, with connection terminals arranged on top and designed for mounting on a DIN rail in accordance with IEC/EN 60715.

Applications
This time relay is suitable for applications in industrial environments where controlled switch-off delay is required, for example in plant control systems, machine building, or lighting system control. The zero-voltage safety ensures that the device safely returns to its initial state in the event of a power failure. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature ranges from -25 °C to +65 °C. The relative humidity is up to 95 % at 40 °C, and the operating altitude is limited to a maximum of 2000 m above sea level.

Functions and Features in Detail
The device includes an LED indicator that visually signals the power supply status. The time function is drop-out delayed, meaning without control signal, which means that after the input voltage is switched off, the relay runs through the pre-set delay time before the contact returns. The time delay is continuously adjustable, and changing the setting during the timing process may cause unintended switching of the output contacts. The reset time is 100 ms, which describes the time the device requires to become operational again after switching off.

Technology Explained Simply
The technology is based on an electromechanical time relay with an electromagnetic drive, operated at a nominal voltage of AC/DC 110–240 V. The delay is achieved through a mechanical timing mechanism, which is adjusted via a relative scale. The insulation test is performed at 2.5 kV for 1 minute, and the rated impulse withstand voltage is 4 kV at pollution degree 2. The overvoltage category is III, which is typical for industrial applications. The enclosure protection rating is IP 40, and the terminals are rated IP 40, providing protection against contact and dust, but not against water. The housing is made of thermoplastic with V0 flammability rating according to UL Subject 94, indicating a high level of flame resistance.

Compatibility and Accessories
The time relay is designed for use in enclosures with mounting plate and cable duct. The connection terminals are rated for conductor cross-sections of 2 x 2.5 mm² solid or 2 x 1.5 mm² stranded wire with ferrule. The stripping length is 10 mm. Mounting is done via a DIN rail in accordance with IEC/EN 60715. The device is part of the MINITIMER series and is available in various configurations, with the SK 7819 variant featuring a depth of 98 mm and terminals located on top. The time ranges include multiple steps, with the specified variant covering the range of 0.15 to 3 seconds.

Mounting and Installation
Mounting is performed on a DIN rail within the enclosure. The terminals are arranged on top, enabling easy wiring. The conductor is secured using flat terminals with self-lifting connection washers. The tightening torque is 0.8 Nm. Terminal identification follows EN 50005, where A1 and A2 represent the power supply connections (L/+ and N/-), and 15, 16, 18 denote the changeover contacts. The vibration resistance is specified as an amplitude of 0.35 mm at a frequency of 10 to 55 Hz.

Advantages in Operation
The device is characterised by high repeatability and stable performance in continuous operation. The zero-voltage safety ensures safe switching off in case of power failure. The LED indicator allows for quick visual monitoring of operating states. The compact design with a width of 17.5 mm and depth of 98 mm enables efficient space utilisation in enclosures. The use of thermoplastic with V0 flammability rating increases safety in case of fire hazards. EMC tests in accordance with IEC/EN 61000-4-2 to -4-6 ensure robust functionality in electromagnetically disturbed environments.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)Off-delay, without control signal
Width17,5 mm
TypeSK 7819
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 110 - 240 V
Time range0,15 - 3 s
VariantRelease delay, without control signal


Product data sheet
Datasheet for Dold 0054741, EAN: 4030641547417
