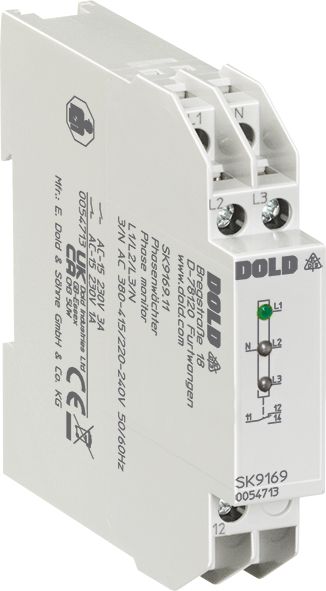

Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor

Your rating:
Average rating
product review for Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor
( 4.5 / 5 ) 38 ratings
Dold 0054713
This image may differ from the desired article.
Dold 0054713Dold 0054713
92,16 EUR
( 109,67 EUR incl. VAT )
≈ £77.14  |  ≈ $101.28
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor
Datasheet:file_download Download
Lieske Part No.:325864
Mfg Part No: 0054713
UPC/EAN: 4030641547134
Weight:0.123 kg
Type:SK9169.113AC380-415/220-240V
Graduated prices net
From piecesPrice per pieces
688,70 EUR
1285,25 EUR
2481,79 EUR
3678,34 EUR

Product information for Dold 0054713:

The Dold phase monitor SK9169.113AC380-415/220-240V is an industrial monitoring switch for detecting phase failure in three-phase networks. The device is designed in the SK form factor, specifically intended for use in enclosures with a mounting plate and cable duct. The width is 17.5 mm, enabling compact mounting on the DIN rail IEC/EN 60715. The rated voltage is 3/N AC 380–415 V / 220–240 V, and it can also be connected single-phase. The voltage range coverage is 0.8 to 1.1 times the rated voltage, allowing flexible adaptation to slight fluctuations in the network. Phase failure detection occurs at voltages below 120 V, ensuring a response even to minor voltage drops.

Applications

The phase monitor is intended for use in industrial and commercial installations where continuous monitoring of the supply voltage is required. It serves as a protective function for motors, pumps, or other electrical consumers that depend on a stable three-phase supply. The device is installed in enclosures, mounted on the DIN rail. The SK form factor with a depth of 100 mm and top-mounted connection terminals is ideal for enclosures with integrated cable duct and mounting plate.

Functions and Equipment in Detail

The device operates on the rest current principle, meaning the output relay is not activated in the event of a fault. This means the changeover contact is closed during normal operation and opens in the event of a phase failure. Phase sequence is irrelevant, so the device functions regardless of the phase order in the network. An LED indicator for each phase (L1, L2, L3) shows whether the respective phase is present. If the neutral conductor is interrupted, the LEDs no longer illuminate even if phase voltage is present, indicating a lack of voltage freedom and requiring additional measurement.

Technology Explained Simply

The phase monitor continuously monitors the voltage on the three phases and the neutral conductor. If any phase drops below 120 V, the output contact (1 changeover) opens, triggering for example an alarm signal or shutdown. The output capacity is rated for a thermal current of 4 A, with a switching capacity of 3 A / AC 230 V for the closer and 1 A / AC 230 V for the opener. The electrical life expectancy is typically 300,000 switching operations at 1 A / AC 230 V, while the mechanical life expectancy is ≥ 30 million switching operations. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature from -25 °C to +60 °C. The operating altitude is limited to ≤ 2000 m.

Compatibility and Accessories

The device is available in three form factors: IK, RK, and SK. The SK form factor, as described here, is designed for enclosures. The connection terminals are located on top, simplifying wiring in the enclosure. The connection cross-sections are 2 x 0.6 to 2.5 mm² for solid conductors or 2 x 0.28 to 1.5 mm² for flexible conductors with and without wire end ferrules. The stripping length is 10 mm. The conductors are secured using non-loosening plus-minus terminals with M3.5 screws and self-lifting connection washers. Mounting is done on the DIN rail IEC/EN 60715.

Mounting and Installation

Mounting is done on the DIN rail inside the enclosure. The top-mounted connection terminals allow for simple and clear wiring. The depth of 100 mm must be considered in the enclosure design. The connection terminals are designed for the specified cross-sections, and the stripping length of 10 mm must be observed. The M3.5 screws are equipped with self-lifting connection washers to ensure secure fastening.

Advantages in Operation

The phase monitor provides reliable monitoring of the supply voltage with clear visual indicators. The LED indicators enable quick diagnosis of the operating status. The rest current principle ensures that the output is not unintentionally activated in the event of a fault. The high life expectancy and robust construction make the device suitable for continuous operation in industrial environments. Compliance with the standard IEC/EN 60255-1 and UKCA approval ensure conformity with European requirements. EMC immunity against static discharge (8 kV), HF radiation (10 V/m), and fast transients (4 kV) ensures reliable operation even in electromagnetically hostile environments. The insulation distances and creepage distances comply with IEC 60664-1 requirements, with a rated impulse voltage of 4 kV and pollution degree 2. The housing protection rating is IP 40, protecting against contact with moving parts and solid objects, but not against water or dust.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.415 V
Output contacts1 C/O contact
Width17,5 mm
TypeSK 9169
Variant
Nominal voltage3/N AC 380 - 415 V / 220 - 240 V
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0054713, EAN: 4030641547134

Questions & answers

What is the delivery time of Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor ?

The article Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054713 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor always at the best possible price. We can give you a discount of 2% on Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0054713 SK9169.11 3/N AC380-415/220-240V phase monitor we can offer you a price of 88,70 EUR per piece. The more you buy, the cheaper the article will be.
