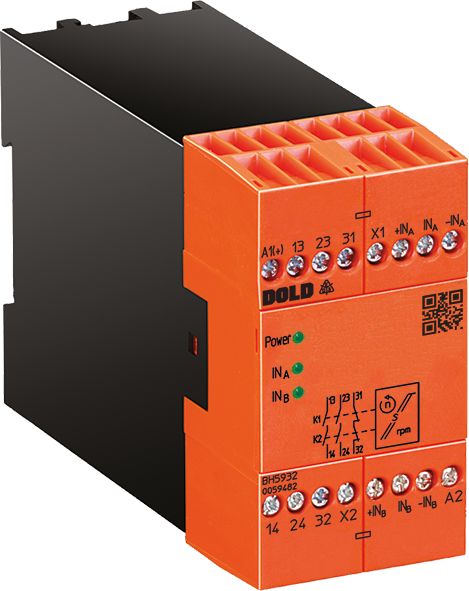

Dold 0054604 BH5932.22/010/61 AC/DC24V 240IPM speed/stall monitor

Your rating:
Average rating
product review for Dold 0054604 BH5932.22/010/61 AC/DC24V 240IPM speed/stall monitor
( 4.4 / 5 ) 11 ratings
Dold 0054604
This image may differ from the desired article.
Dold 0054604Dold 0054604
402,07 EUR
( 478,46 EUR incl. VAT )
≈ £336.53  |  ≈ $441.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054604 BH5932.22/010/61 AC/DC24V 240IPM speed/stall monitor
Datasheet:file_download Download
Lieske Part No.:1312725
Mfg Part No: 0054604
UPC/EAN: 4030641546045
Weight:0.438 kg
Type:BH5932.22/010/61 AC/DC24V 240IPM
Graduated prices net
From piecesPrice per pieces
4396,04 EUR
8390,01 EUR
12383,98 EUR
16377,95 EUR

Product information for Dold 0054604:

The Dold speed monitor BH5932.22/010/61 AC/DC24V 240IPM is a safety-relevant monitoring switch for continuous monitoring of rotational and linear movements in machines and plants. It is designed to detect standstills or unauthorized movements in order to prevent hazards to personnel and machinery. The device is designed for use in safety-critical applications and meets the requirements for safe operation in industrial environments.

Applications
The BH5932 is used in machine building, packaging technology, material handling, and other industries where moving parts or drives must be monitored. It is suitable for monitoring the speed of motors, shafts, or other rotating components, initiating a safe shutdown if the defined trigger value is undershot. The application typically involves use in conjunction with inductive proximity switches acting as initiators.

Functions and Equipment in Detail
The device features a fixed trigger value of 240 pulses per minute (IPM), which cannot be changed. Monitoring is performed via two independent channels, ensuring redundant safety functionality. The inputs are designed for pnp proximity switches, with the variant without initiator connection detection being provided. The output contacts are fail-safe, consisting of two normally closed contacts and one normally open contact, enabling secure signal transmission even in the event of mechanical faults. The contacts are rated for a thermal current of up to 4 A.

Technology Explained Simply
The BH5932 monitors signals from two separate proximity switches connected to inputs In A and In B. When the speed drops below the set value of 240 IPM, the normally open contact is activated while the normally closed contacts open. This enables a safe machine shutdown. The fail-safe design ensures that the contacts are mechanically linked, so an open contact can only occur due to a defined fault condition. The nominal voltage is AC/DC 24 V, enabling universal use in industrial control systems.

Compatibility and Accessories
The device is compatible with inductive proximity switches from Dold’s NA 5001, NA 5002, NA 5005, and NA 5010 series. Specifically, types NA 5002.01.34 and NA 5005.01.34 are suitable for devices without initiator connection detection. The terminal connections are designed for wires with 2 x 1.5 mm² or 2 x 2.5 mm² cross-section, with the use of ferrules and plastic sleeves according to DIN 46 228-1/-2/-3/-4 recommended. The terminal assignment is detailed in the datasheet, with brown, blue, and black used for power and signal lines.

Mounting and Installation
The speed monitor has a width of 45 mm and is designed for mounting in standard control panels according to DIN EN 60715. Mounting is done via screw terminals designed for the specified wire cross-sections. The terminals are clearly labeled to ensure error-free wiring. The devices are designed for industrial environments and meet requirements for safety and reliability.

Operational Advantages
The BH5932 offers high safety integrity with Category 3 and PL e according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061. Certifications UL-listed C/US, TÜV, and CCC confirm suitability for use in various markets. The fail-safe contacts and redundant dual-channel design increase the reliability of the safety function. Clear terminal labeling and use of standard components simplify installation and maintenance.

Certifications and Safety Standards
The device complies with safety standards EN ISO 13849-1 (Category 3, PL e) and IEC/EN 62061 (SIL 3). Certifications UL-listed C/US, TÜV, and CCC confirm compliance with international safety standards. Classification as a device for initiators highlights its use in safety-relevant systems. The thermal rating of 4 A allows operation with a wide range of loads.

Compatibility with Initiators
The device is specifically designed for use with Dold’s inductive proximity switches NA 5001, NA 5002, NA 5005, and NA 5010. Types NA 5002.01.34 and NA 5005.01.34 are suitable for devices without initiator connection detection. The terminal assignment is detailed in the datasheet, with brown, blue, and black used for power and signal lines. The terminals are designed for wires with 2 x 1.5 mm² or 2 x 2.5 mm² cross-section.

Safety Functions
The safety functions of the BH5932 include redundant dual-channel monitoring, fail-safe contacts, and safe shutdown when the trigger value is undershot. Category 3 and PL e according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061, guarantee high safety integrity. Certifications UL-listed C/US, TÜV, and CCC confirm compliance with international standards. The devices are designed for use in safety-critical systems.

Practical Application
In practice, the BH5932 is used in machines and plants where moving parts must be monitored. Speed monitoring is performed via two independent channels, ensuring redundant safety functionality. The terminals are designed for wires with 2 x 1.5 mm² or 2 x 2.5 mm² cross-section, with the use of ferrules and plastic sleeves according to DIN 46 228-1/-2/-3/-4 recommended. Mounting is done in standard control panels according to DIN EN 60715.

Technical data
1- / 2-channel2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-13/e
ClassificationFor initiators
Forcibly guided output contacts max.1 NC contact, 2 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.4 A
Width45 mm
TypeBH 5932
Variant
Contact equipping2 NO contacts, 1 NC contact
Nominal voltageAC/DC 24 V
Response value240 IPM
Approvals and MarkingsUL-listed C/US, TÜV, CCC
VariantWithout sensor detection. PNP-input. Fixed setting value


Product data sheet
Datasheet for Dold 0054604, EAN: 4030641546045
