Dold 0054596 IP9271.12 AC/DC24V 1.5-15A undercurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0054596 IP9271.12 AC/DC24V 1.5-15A undercurrent relay Tv=0.1-20S
( 4.5 / 5 ) 26 ratings
Dold 0054596
This image may differ from the desired article.
408,55 EUR
( 486,17 EUR incl. VAT )
≈ £341.96  |  ≈ $449.00
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054596 IP9271.12 AC/DC24V 1.5-15A undercurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:406579
Mfg Part No: 0054596
UPC/EAN: 4030641545963
Weight:0.224 kg
Type:IP9271.12 AC/DC24V 1,5-15A
Graduated prices net
From piecesPrice per pieces
4393,23 EUR
8377,91 EUR
12362,59 EUR
16347,27 EUR

Product information for Dold 0054596:

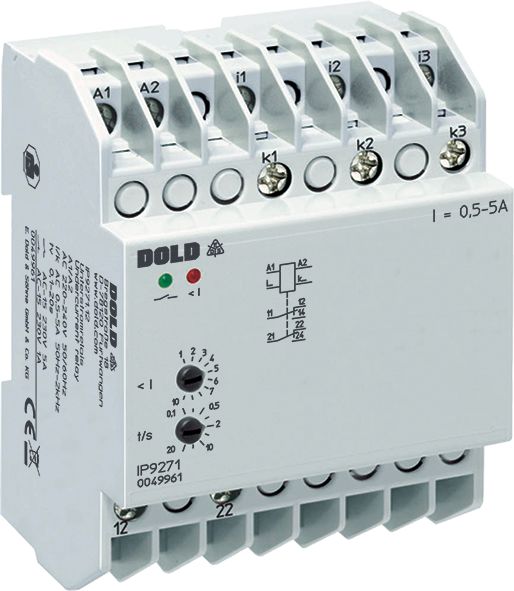

The Dold undercurrent relay IP9271.12 AC/DC24V 1.5-15A is an industrial current monitoring device for alternating and rotating current networks. It is used to monitor current flow in 3-phase systems and responds when a set current value is undershot. The device operates on the undercurrent principle, in which the output relay is not activated in the event of a fault. It is designed for mounting in installation distributors and complies with the standard IEC/EN 60255-1.

Applications
This relay is intended for monitoring electrical systems in industrial and commercial environments where continuous power supply is required. Typical applications include monitoring motors, pumps, heating systems, or other consumers where a sudden drop in current could lead to malfunction or damage. The 3-phase design makes it particularly suitable for systems with multi-phase supply.

Functions and Features in Detail
The device features two changeover contacts as output contacts, which can be used to control auxiliary circuits or alarm systems. The pickup value is adjustable, allowing the relay to be configured for different loads and requirements. The switching delay is adjustable in the range of 0.1 to 20 seconds, enabling adaptation to specific applications. The hysteresis is fixed at approximately 4 % to ensure stable switching behavior. LED indicators signal the operating status: a green LED lights up when current is normal (good condition), and a red LED lights up in case of undercurrent.

Technology Explained Simply
The relay monitors current in three phases and responds when the current falls below a preset value. Measurement is performed via the measuring circuit, which is galvanically separated from the auxiliary circuit to ensure safe and interference-free transmission. The auxiliary voltage is AC/DC 24 V and powers the device itself. The width is 35 mm, making it suitable for standard installation distributors. The design is intended for installation distributors according to DIN 43880.

Compatibility and Accessories
The device is part of the IP 9271 product family and can be used in various variants depending on requirements for measuring ranges and contact configuration. It is compatible with other devices in the series, such as models IL 9271 or SL 9271, which also have a width of 35 mm. Combining it with other components in the series allows for flexible adaptation to different system configurations.

Mounting and Installation
Mounting is done in installation distributors according to DIN 43880. The connection terminals are located at the bottom, enabling easy integration into existing control systems. The depth is 61 mm. Terminal labeling follows the scheme A1/A2 for auxiliary voltage, i1/k1, i2/k2, i3/k3 for measuring circuits, and Z1/Z2, Z3/Z4 for measuring range selection. Installation requires no special tools or additional components.

Advantages in Operation
The relay provides reliable current monitoring with adjustable parameters, enabling adaptation to specific requirements. The galvanic separation between measuring and auxiliary circuits increases safety and prevents interference. LED indicators allow for quick visual monitoring of the operating status. The adjustable switching delay prevents false alarms during short-term current fluctuations. The design is intended for use in standard installation distributors, enabling easy integration into existing systems.

Technical data
1- / 3-phase3
Enclosure designDistribution board
Output contacts2 C/O contacts
Width35 mm
TypeIP 9271
Operate delayYes
Variant
Auxiliary voltageAC/DC 24 V
Contact equipping2 changeover contacts
Measuring range1,5 - 15 A
Switching delay0,1 - 20 s
Approvals and MarkingsUKCA
Variant3-phase current relay. De-energized on trip


Product data sheet
Datasheet for Dold 0054596, EAN: 4030641545963
