Dold 0054582 BL5903.22/00020 AC230V emergency stop module

Your rating:
Average rating
product review for Dold 0054582 BL5903.22/00020 AC230V emergency stop module
( 4.5 / 5 ) 45 ratings

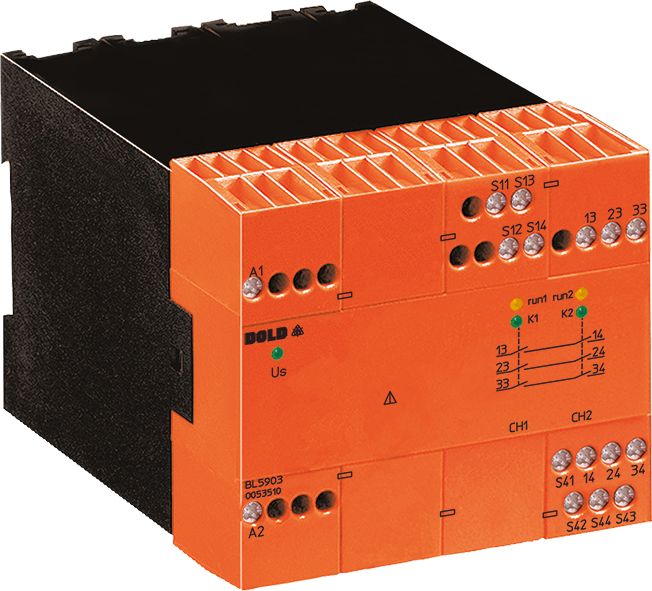

Dold 0054582
This image may differ from the desired article.
698,84 EUR
( 831,62 EUR incl. VAT )
≈ £584.93  |  ≈ $768.03
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054582 BL5903.22/00020 AC230V emergency stop module
Datasheet:file_download Download
Lieske Part No.:531027
Mfg Part No: 0054582
UPC/EAN: 4030641545826
Weight:0.32 kg
Type:BL5903.22/00020 AC230V
Graduated prices net
From piecesPrice per pieces
3672,63 EUR
6646,43 EUR
9620,22 EUR
12594,01 EUR

Product information for Dold 0054582:

The Dold safety relay BL5903.22/00020 AC230V is an emergency stop module for use in industrial control systems, particularly in plants that are designed to restart automatically after a power failure, such as in compressor controls or water and wastewater technology. The device is designed for single-channel connection of two emergency stop buttons and features integrated mains failure detection. It ensures safe shutdown of machines and systems in emergencies and provides controlled restart logic if no emergency stop actuation has occurred.

Applications
This safety relay is designed for industrial applications where the reliability and safety of control components are critical. It is particularly suitable for systems that should restart automatically after a power outage without requiring manual restart. The integrated cross-connection detection, as well as wire break and short-circuit detection on all inputs, enhances safety and prevents incorrect operating states caused by defective or damaged connections.

Functions and Features in Detail
The device stores the actuation of an emergency stop button and activates the shutdown of the connected machine. Upon restoration of mains voltage, the system restarts automatically, provided no emergency stop has been triggered. The contact configuration includes 2 normally closed contacts and 1 normally open contact as a signaling contact, with up to 3 normally closed contacts available as output contacts. Connections are made via removable screw terminals, enabling flexible and secure connections. The terminals are suitable for wires with 2 x 1.5 mm² with ferrule and plastic sleeve according to DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm² with ferrule according to DIN 46228-1/-2/-3.

Technology Explained Simply
The safety relay operates at a rated voltage of AC 230 V and is designed for use in single- and dual-channel systems. The width is 90 mm, allowing installation in standard control panels. The integrated feedback loop enables external contact amplification, increasing flexibility in system design. LED indicators for channel 1 and 2, as well as for fault diagnosis, support maintenance and troubleshooting. The thermal current rating (Ith max.) is 5 A, defining the contact load capacity under normal operating conditions.

Compatibility and Accessories
The module is designed for connection of two emergency stop buttons in one channel. It complies with safety requirements according to EN ISO 13849-1 with Performance Level (PL) e and Category 4. Additionally, it meets safety integrity requirements according to IEC/EN 62061 with SIL CL 3 and SIL 3. TÜV and UKCA certifications confirm compliance with European safety standards. Cross-connection detection ensures that a short circuit between inputs is detected and signaled, enhancing system integrity.

Mounting and Installation
Mounting is performed in standard control panels with a width of 90 mm. The removable screw terminals facilitate installation and maintenance. The terminal connections are designed for various wire cross-sections, enabling flexible cabling. The LED indicators support commissioning and diagnostics. The feedback loop allows external contact amplification, which is useful in complex plant configurations.

Operational Advantages
The safety relay provides reliable emergency stop functionality with automatic restart logic. Integrated fault detection and LED indicators simplify maintenance and reduce downtime. Compliance with international safety standards such as EN ISO 13849-1 and IEC/EN 62061 ensures a high level of safety. The width of 90 mm and removable terminals enable flexible and quick installation in existing systems. The maximum of 3 normally closed output contacts offers sufficient flexibility for controlling multiple loads.

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width90 mm
TypeBL 5903
Cross fault detectionYes
Variant
Contact equipping2 NO contacts, 1 NC contact as signal output
Nominal voltageAC 230 V
Approvals and MarkingsTÜV, UKCA
VariantFür 1-kanaligen Anschluß von zwei Not-Aus-Tastern


Product data sheet
Datasheet for Dold 0054582, EAN: 4030641545826

Questions & answers

What is the delivery time of Dold 0054582 BL5903.22/00020 AC230V emergency stop module ?

The article Dold 0054582 BL5903.22/00020 AC230V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054582 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054582 BL5903.22/00020 AC230V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0054582 BL5903.22/00020 AC230V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0054582 BL5903.22/00020 AC230V emergency stop module we can offer you a price of 672,63 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
