Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h

Your rating:
Average rating
product review for Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h
( 4.8 / 5 ) 5 ratings

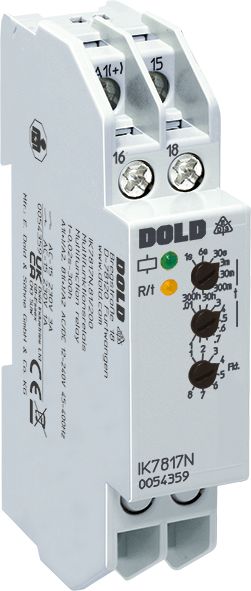

Dold 0054359
This image may differ from the desired article.
Dold 0054359Dold 0054359
152,18 EUR
( 181,09 EUR incl. VAT )
≈ £127.37  |  ≈ $167.25
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h
Datasheet:file_download Download
Lieske Part No.:1312967
Mfg Part No: 0054359
UPC/EAN: 4030641543594
Weight:0.073 kg
Type:IK7817N.81/200 AC/DC12-240V
Graduated prices net
From piecesPrice per pieces
5146,47 EUR
10140,77 EUR
15135,06 EUR
20129,35 EUR

Product information for Dold 0054359:

The Dold IK7817N.81/200 AC/DC12-240V is a multifunction relay for time-dependent control applications in industrial and railway environments. It features a width of 17.5 mm and is designed for mounting in installation distributors according to DIN 43 880. The device operates with a rated voltage range of AC/DC 12 to 240 V and provides a time function from 0.02 seconds to 300 hours, with eight different functions selectable via a rotary switch. The housing design is configured as an installation distributor, with connection terminals located at the bottom and options for DIN rail or screw mounting. The UKCA certification is indicated, enabling use in relevant markets.

Applications include industrial control systems where precise time delays, pulse control, or blinking functions are required. The relay is suitable for controlling drives, lighting systems, safety functions, or in railway systems where time-controlled sequences are necessary. Control is achieved via proximity switches, supporting both 2-wire and 3-wire proximity switches (for DC voltages). For operating voltages above 24 V and when using proximity switches without short-circuit protection, the use of a series resistor is recommended to limit inrush current.

Functions and equipment in detail include eight selectable time functions: Delay-on-make (AV), Make-on-delay (EW), Delayed pulse generator (IE), Blink function triggered by pulse (BI), Delay-on-break (RV), Pulse shaper (IF), Break-on-delay (AW), and Delay-on-make and delay-on-break (AV/RV). The time functions are selected via a rotary switch, with time values adjustable in eight ranges from 0.02 s to 300 h using a second rotary switch. An adjustment aid enables quick setting of long time intervals. The device features LED indicators for power supply (green LED) and for timing process and contact position (yellow LED “R/t”), allowing visual monitoring of the operating status.

Technology explained simply shows that the relay includes a changeover contact (1 C/O) suitable for controlling loads. The time functions are implemented via internal electronic circuits configured through the rotary switches. The connection option for a remote potentiometer (10 kΩ) allows external, precise adjustment of time values, which is advantageous in complex systems. Functions such as pulse shaper or timing generator (in the /500 variant) enable generation of defined pulses or periodic signals, useful in automation systems. Time addition and interruption functions enhance control flexibility.

Compatibility and accessories refer to use with 2- or 3-wire proximity switches. The connection terminals are designed for standard cable connections. The device is available in the IK 7817N housing form, designed for installation distributors. The certification according to IEC/EN 61812-1 ensures compliance with time relay standards. The connection terminals are suitable for mounting in enclosures with mounting plate and cable duct.

Mounting and installation is done via DIN rail or screws. The depth is 59 mm, allowing compact placement in distributors. The terminals are located at the bottom, simplifying wiring in standard installation distributors. The LED indicators support commissioning and maintenance, as the operating status is directly visible. Time function settings are adjusted via rotary switches on the front, requiring no additional tools.

Operational advantages lie in the versatility of functions achievable with a single device. The precise time control from 0.02 s to 300 h enables applications ranging from short pulses to long delays. LED indicators and the adjustment aid reduce commissioning time. Compatibility with various proximity switches and the option for external time control via remote potentiometer increase application flexibility. The device is designed for industrial environments, with housing form and mounting options facilitating integration into existing control systems.

Technical data
Enclosure designDistribution board
Output contacts1 C/O contact
Time function(s)Cyclic timer, Flasher relay, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay, Pulse extender
Width17,5 mm
TypeIK 7817N/200
Connection facility for remote potentiometerYes
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 12 - 240 V
Time range0,02 s - 300 h
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0054359, EAN: 4030641543594

Questions & answers

What is the delivery time of Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h ?

The article Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054359 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h always at the best possible price. We can give you a discount of 2% on Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054359 IK7817N.81/200 AC/DC12-240V multifunction relay 0.02 s–300 h we can offer you a price of 146,47 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
