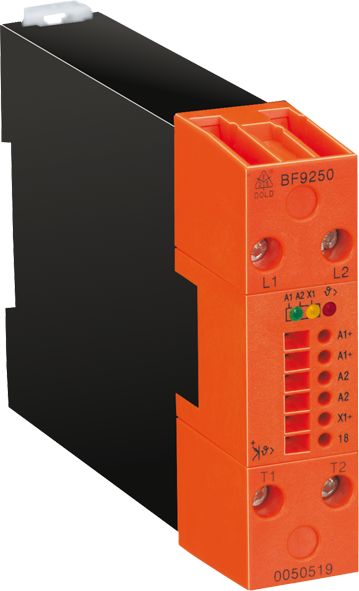

Dold 0054168 BF9250.03/004 UH=DC24V 3xAC 15A semiconductor contactor AC24-480V

Your rating:
Average rating
product review for Dold 0054168 BF9250.03/004 UH=DC24V 3xAC 15A semiconductor contactor AC24-480V
( 4.5 / 5 ) 2 ratings
Dold 0054168
This image may differ from the desired article.
392,10 EUR
( 466,60 EUR incl. VAT )
≈ £328.19  |  ≈ $430.92
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054168 BF9250.03/004 UH=DC24V 3xAC 15A semiconductor contactor AC24-480V
Datasheet:file_download Download
Lieske Part No.:1583190
Mfg Part No: 0054168
UPC/EAN: 4030641541682
Weight:0.37 kg
Type:BF9250.03/004 UH=DC24V 3xAC 15A
Graduated prices net
From piecesPrice per pieces
4386,22 EUR
8380,34 EUR
12374,46 EUR
16368,57 EUR

Product information for Dold 0054168:

The Dold semiconductor contactor BF9250.03/004 is an electronic switching device for use in industrial installations, designed for frequency-stable and noiseless control of AC loads. It features a 3-pole semiconductor output and is designed for an auxiliary voltage of DC 24 V. The load voltage ranges from AC 24 V to 480 V, with a load current per pole of 15 A. The device is zero-voltage switching, meaning the switching operation occurs at the moment of zero crossing of the alternating voltage to minimize voltage spikes and current surges. This is particularly advantageous for controlling motors, heaters, valves, and lighting, as it increases the lifespan of the loads and reduces electromagnetic interference.

Applications
This contactor is suitable for use in industrial and technical installations where reliable, disturbance-free, and maintenance-friendly switching functions are required. It is frequently used in systems for controlling heating systems, electric motors, valve controls, and lighting installations. The zero-voltage switching ensures that loads are switched on gently, which is especially beneficial for inductive loads such as motors. The noiseless switching also makes the device suitable for applications where acoustic disturbances need to be avoided.

Functions and Equipment in Detail
The device includes an integrated alarm output that signals during operation or malfunction. Additionally, an integrated temperature monitoring system protects the power semiconductors and transmits a signal state to the alarm output in case of overheating. The protection circuitry uses varistors to suppress overvoltages during operation. Control is via a digital input that can be operated with both AC/DC and purely with DC. The control input X1 allows for low current consumption, supporting direct use with PLC systems (Programmable Logic Controllers).

Technology Explained Simply
The semiconductor contactor operates using power semiconductors (e.g., thyristors or triacs) instead of mechanical contacts. This eliminates moving parts, increasing the device’s lifespan and protecting it against mechanical wear. The zero-voltage switching ensures that switching occurs at the zero crossing of the alternating voltage, minimizing spark generation and current surges. The integrated temperature monitoring monitors the heat development of the semiconductors and shuts off the device in case of overheating to prevent damage. The varistors protect the device from transient overvoltages caused by network disturbances or load switching.

Compatibility and Accessories
The device is designed for use in systems with AC loads up to 480 V and load currents up to 50 A. It is available in various pole configurations (1-, 2-, and 3-pole), with the variant described here being 3-pole. The width is 90 mm, enabling mounting on DIN rails. Certifications according to IEC/EN 60947-4-2 and IEC/EN 60947-4-3 ensure compliance with international standards for electrical switching devices. The UL listing (C/US) confirms compliance with safety requirements in Canada and the USA.

Mounting and Installation
The contactor is mountable on DIN rails, enabling quick and secure installation in enclosures. The terminal connections are clearly labeled (e.g., L1, L2, L3 for mains connection, T1, T2, T3 for load outputs, A1/A2 for control voltage, X1 for additional control input, 18 for alarm output). The terminal labeling facilitates correct wiring. Mounting is tool-free, as the device snaps onto the DIN rail.

Operational Advantages
The semiconductor contactor offers high operational reliability through integrated temperature monitoring and protection circuitry with varistors. The zero-voltage switching reduces electromagnetic interference and extends the lifespan of the loads. The noiseless switching makes it suitable for applications where acoustic disturbances need to be avoided. The low current consumption at control input X1 enables direct control via PLC systems. DIN rail mounting and clear terminal labeling simplify installation and maintenance.

Certifications and Markings
The device is certified according to standards IEC/EN 60947-4-2 and IEC/EN 60947-4-3, which define requirements for electrical switching devices used in industrial installations. The UL listing (C/US) confirms compliance with safety requirements in Canada and the USA. These certifications guarantee the reliability and safety of the device during operation.

Control and Operation
Control is via the control input A1/A2 with DC 24 V. An optional additional control input X1 is available, enabling low current consumption and thus supporting direct control via PLC systems. The integrated temperature monitoring shuts off the device in case of overheating and signals this via alarm output 18. LED indicators (green for operation, red for overheating) support visual monitoring of the operating status.

Switching Behavior and Load Protection
The contactor switches at the moment of zero crossing of the alternating voltage during each switching operation, minimizing spark generation and current surges. The integrated temperature monitoring protects the power semiconductors from overheating. In case of overheating, the switching operation is interrupted and the alarm output is activated. The protection circuitry with varistors protects the device from transient overvoltages caused by network disturbances or load switching.

Application Scenarios
The contactor is particularly suitable for applications requiring high switching frequency, long service life, and noiseless switching. Typical use cases include controlling heaters, electric motors, valves, and lighting installations in industrial and technical installations. The zero-voltage switching ensures gentle switching of loads, increasing their lifespan and reducing electromagnetic interference.

Technical data
ApprovalsUL
Load current up to50 A
Load voltage up toAC 480 V
Number of poles1-pole, 2-pole, 3-pole
On/Off Input ControlAC/DC, DC
Width22,5 mm, 45 mm, 90 mm
TypeBF 9250
Signalling outputYes
Temperature monitoringYes
Variant
Auxiliary voltageDC 24 V
Contact equippingwith signal contact
Load current3 x AC 15 A
Load voltageAC 24 - 480 V
Semiconductor output3-pole
Approvals and MarkingsUL-listed C/US
VariantSwitching at zero crossing. 3 semiconductor contactors with common ground for control inputs in one housing


Product data sheet
Datasheet for Dold 0054168, EAN: 4030641541682
