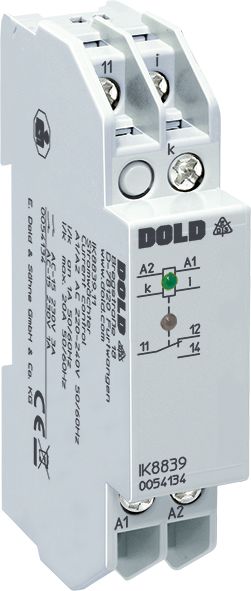

Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor

Your rating:
Average rating
product review for Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor
( 4.3 / 5 ) 8 ratings
Dold 0054134
This image may differ from the desired article.
189,83 EUR
( 225,90 EUR incl. VAT )
≈ £158.89  |  ≈ $208.62
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor
Datasheet:file_download Download
Lieske Part No.:420261
Mfg Part No: 0054134
UPC/EAN: 4030641541347
Weight:0.07 kg
Type:IK8839.111AMAX.20AAC220-240V
Graduated prices net
From piecesPrice per pieces
5188,41 EUR
10186,98 EUR
15185,56 EUR
20184,14 EUR

Product information for Dold 0054134:

The Dold current monitor type IK8839.111AMAX.20AAC220-240V is an industrial monitoring relay for functional control of electro-thermal consumers, such as heating elements or pipe tracing heaters. The device monitors whether operating current flows when the consumer is switched on, and reacts to deviations from the pre-set switching point. It is designed for use in installation distributors and is mounted on a DIN rail. The width is 17.5 mm, enabling compact integration into standard control panels.

Applications

The current monitor is primarily designed for monitoring consumers with an operating current in the range of 0.175 to 1 A. It is particularly suitable for applications where interruption of current flow is critical, such as in heating systems, where failure of heating can cause damage. Monitoring is continuous, with the device changing the output relay state when the switching point of 1 A is reached. The maximum overload capacity is 20 A continuous and 150 A for 2 seconds, providing high robustness against short-term current surges.

Functions and equipment in detail

The device features a fixed switching point of 1 A, which cannot be changed. The response time is approximately 60 ms, enabling rapid reaction to current changes. The output contacts consist of a changeover contact (1 C/O contact), rated for an operating voltage of AC 250 V. The contact rating is 3 A / AC 230 V for closing contacts and 1 A / AC 230 V for opening contacts, according to IEC/EN 60947-5-1. The electrical life is approximately 100,000 switching operations at 5 A and AC 230 V, and approximately 50,000 switching operations at 8 A. The mechanical life is specified as 20 million operations.

Technology explained simply

The current monitor measures the flowing current via inputs i and k and compares it with the fixed switching point. If the switching point is undershot, the output relay state changes. The auxiliary voltage is AC 220–240 V, with a nominal consumption of 2.2 VA (apparent power) and 0.5 W (active power) at AC 230 V. The voltage range coverage is 0.8 to 1.1 times the nominal voltage (AC) or 0.8 to 1.25 times (DC). The frequency range coverage is ±5 % around the nominal frequency of 50 Hz. The switching point tolerance is ±15 %, with frequency influence between -8 % and +3 % in the range of 48 to 52 Hz.

Compatibility and accessories

The device is designed for use in single-phase systems and complies with the standard IEC/EN 60255-1. The terminals are designed for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with sleeve DIN 46228-1/-2/-3/-4). The stripping length is 10 mm, and the tightening torque for the terminals is 0.8 Nm. Mounting is done via a DIN rail according to IEC/EN 60715. The housing protection rating is IP 40, and the terminals are IP 40. The operating temperature is between -20 °C and +60 °C, and the storage temperature is between -25 °C and +60 °C. The relative humidity is up to 93 % at 40 °C, and the operating altitude is limited to below 2000 m.

Mounting and installation

Mounting is done via a DIN rail, which is standard in installation distributors. The connection terminals are equipped with self-lifting flat terminals, enabling easy and secure connections. The conductor connections are made at terminals A1/A2 (voltage supply), i/k (current measurement inputs), and 11/12/14 (changeover contacts). The connection terminals comply with the standard EN 50005. The tightening torques are set to 0.8 Nm to ensure a reliable connection.

Advantages in operation

The current monitor offers high reliability due to the fixed switching point setting and high overload capacity. The LED indicators signal operational readiness (upper LED) and the status of the output relay (lower LED), enabling quick diagnosis. The short response time of approximately 60 ms ensures timely reaction to disturbances. The mechanical life of 20 million operations and the electrical life of up to 100,000 switching operations at 5 A guarantee long service life. Compliance with the standard IEC/EN 60255-1 ensures conformity with international standards.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Measuring rangeAC 0,175 - 1 A
Output contacts1 C/O contact
Width17,5 mm
TypeIK 8839
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping1 changeover contact
Switching point1 A max. 20 A


Product data sheet
Datasheet for Dold 0054134, EAN: 4030641541347

Questions & answers

What is the delivery time of Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor ?

The article Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054134 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor always at the best possible price. We can give you a discount of 2% on Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054134 IK8839.11 1A max.20A AC220-240V current monitor we can offer you a price of 188,41 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
