Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching

Your rating:
Average rating
product review for Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching
( 4.5 / 5 ) 41 ratings

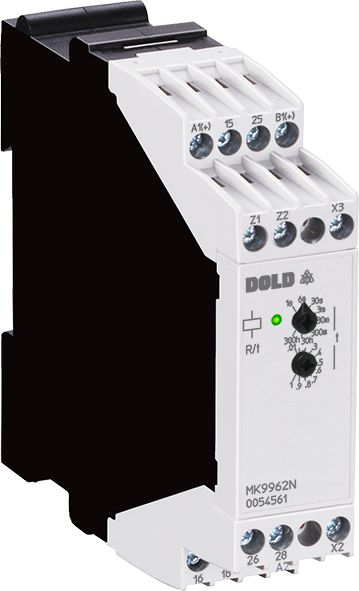

Dold 0054105
This image may differ from the desired article.
Dold 0054105Dold 0054105
146,46 EUR
( 174,29 EUR incl. VAT )
≈ £122.59  |  ≈ $160.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching
Datasheet:file_download Download
Lieske Part No.:303355
Mfg Part No: 0054105
UPC/EAN: 4030641541057
Weight:0.17 kg
Type:MK9962N.82 AC/DC12-240V 0,05-300H
Graduated prices net
From piecesPrice per pieces
5140,97 EUR
10135,48 EUR
15129,98 EUR
20124,49 EUR

Product information for Dold 0054105:

The Dold time relay MK9962N.82 is a delayed-release industrial time relay with control signal, designed for use in enclosures. It features a control voltage range of AC/DC 12 to 240 V and is equipped with two changeover contacts. The time function enables a delay during switching off (delayed release), where the timing sequence is controlled by a control signal. The device is designed for use in industrial control systems where precise time-controlled switching functions are required, for example during motor start-up or shut-down processes, lighting systems, or other electrical loads.

Applications
This time relay is suitable for applications requiring delayed switching off after a control signal. Typical use cases include controlling pumps, fans, heaters, or lighting units, where immediate switching off is not desired, but rather a controlled, time-delayed shut-down. The wide time range of 0.05 seconds to 300 hours enables flexible use in various industrial and technical environments. Compliance with standard EN 61812-1 ensures standardized operation and reliability.

Functions and Equipment in Detail
The device features eight adjustable time ranges, which can be selected via a rotary switch. Adjustment is performed using an integrated adjustment knob, with an adjustment aid available for quick setting of long time intervals. The time function is activated by a control signal connected via a separate input. This allows precise control of the timing sequence, which begins only after the control signal ends. Indication is provided by LED indicators, visually signaling the activation, contact position, and ongoing timing sequence. These indicators facilitate diagnosis and maintenance during operation.

Technology Explained Simply
The delayed release means that the contacts return to their rest position only after the set time has elapsed following the end of the control signal. This is particularly useful when a load needs to continue running or decay for a specific time after being switched off. The control voltage of AC/DC 12 to 240 V allows flexible integration into existing power supply systems. The connection terminals are designed as a fixed terminal block with screw terminals, ensuring a secure and durable connection. The width of 22.5 mm enables compact mounting in standard enclosures.

Compatibility and Accessories
The device features a connection option for a remote potentiometer, allowing the time delay to be adjusted from a remote control point. This is particularly advantageous in systems requiring central control or remote operation. Optional plug-in terminal blocks are available, enabling quick replacement of the device without having to open the entire wiring. The use of stranded conductors up to 2 x 1.5 mm² with ferrules and plastic sleeves or solid conductors up to 2 x 2.5 mm² in accordance with DIN 46 228-1/-2/-3/-4 is permitted.

Mounting and Installation
Mounting is performed in an enclosure, with the width of 22.5 mm allowing compact placement in standard mounting fields. The screw terminals require a screwdriver for securing the wires. The terminal assignment is detailed in the data sheet, with inputs for control voltage, control signal, and output contacts clearly separated. The LED indicators facilitate checking the correct function after installation.

Advantages in Operation
The combination of a wide time range, control signal operation, and visual indication offers high flexibility and reliability in industrial operation. The delayed release enables controlled switching off, which can prevent damage to machines or systems. The integrated adjustment aid and remote potentiometer option enhance usability, especially in complex systems. The certifications UL-listed C/US and UKCA ensure compliance with international safety and quality standards.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Nominal voltageAC/DC
Output contacts2 C/O contacts
Time function(s)Off-delay, with control signal
Width22,5 mm
TypeMK 9962N
Connection facility for remote potentiometerYes
Variant
Auxiliary voltageAC/DC 12 - 240 V
Contact equipping2 changeover contacts
Terminal typefixed terminal block with screw terminal
Time range0,05 s - 300 h
Approvals and MarkingsUL-listed C/US, UKCA
VariantRelease delay, with control signal


Product data sheet
Datasheet for Dold 0054105, EAN: 4030641541057

Questions & answers

What is the delivery time of Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching ?

The article Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054105 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching always at the best possible price. We can give you a discount of 2% on Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054105 MK9962N.82/61 AC/DC12-240V 0.05s-300h time relay latching we can offer you a price of 140,97 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
