Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H

Your rating:
Average rating
product review for Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H
( 4.6 / 5 ) 20 ratings
Dold 0054053
This image may differ from the desired article.
193,63 EUR
( 230,42 EUR incl. VAT )
≈ £162.07  |  ≈ $212.80
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

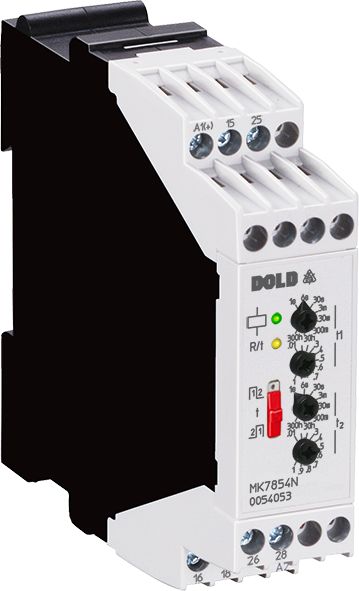

1x Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H
Datasheet:file_download Download
Lieske Part No.:750615
Mfg Part No: 0054053
UPC/EAN: 4030641540531
Weight:0.17 kg
Type:MK7854N.82AC/DC12-240V0,05S-300H
Graduated prices net
From piecesPrice per pieces
5186,37 EUR
10179,11 EUR
15171,85 EUR
20164,59 EUR

Product information for Dold 0054053:

The Dold time relay MK7854N.82AC/DC12-240V0,05S-300H is an industrially usable timing relay with asymmetric flashing function according to IEC/EN 61812-1. It is designed for time-dependent control of electrical loads in enclosures and intended for use in industrial plants, machine controls or automation systems. The device features a width of 22.5 mm, making it suitable for standard control panels, and is equipped with fixed screw terminals that enable secure connections for conductor cross-sections up to 2.5 mm². The rated voltage is in the range of AC/DC 12 to 240 V, allowing flexible adaptation to various supply voltages.

Applications
This relay is suitable for applications requiring periodic, time-controlled switching functions, for example, controlling flashing lights, warning signals, pump cycles, or timing machine components. The function as a timing relay allows pulse and pause times to be set independently, enabling asymmetric switching cycles. The option to start operation with either a pulse or a pause expands its application possibilities in complex control sequences.

Functions and Equipment in Detail
The device offers 8 adjustable time ranges, covered via a rotary switch from 0.05 seconds to 300 hours. Precise adjustment is supported by an adjustment aid, where the flashing frequency of the yellow LED (1 second ± 4%) serves as a reference. This facilitates especially the adjustment of long time intervals, as time progress can be checked in real time. The LED indicators signal operational readiness (green LED) as well as the state of the output relay and the timing progress (yellow LED). The display indicates whether the relay is activated (long on, short off) or not (short on, long off).

Technology Explained Simply
The timing function is based on a timing relay principle, where pulse and pause times can be set independently. The time sequences are controlled by an internal timer, which is set to the desired time level via the rotary switch. Control is via the control input A1-A2, which can also be operated with two-wire proximity switches. For operating voltages above 24 V and when using proximity switches without short-circuit protection, it is recommended to install a series resistor at input A1 to limit the inrush current. The maximum resistance values are 270 Ω (48 V), 390 Ω (60 V), 680 Ω (110 V), and 1.8 kΩ (230 V), each with a power rating of 1 W.

Compatibility and Accessories
The relay features a connection option for two remote potentiometers, connected via inputs Z1, Z2, and Z3. This enables external, precise fine adjustment of pulse and pause times. Optionally, a timing interruption is possible via control input B1 (+), with timing resuming from where it left off after re-activation. The contact configuration includes 2 delayed changeover contacts, with an optional changeover contact programmable as an instantaneous contact. The terminal type is fixed screw terminal, suitable for connecting stranded conductors up to 1.5 mm² with ferrules and plastic sleeves, and solid conductors up to 2.5 mm² according to DIN 46228-1/-2/-3/-4.

Mounting and Installation
The device is designed for installation in enclosures and is connected to the wiring via screw terminals. Mounting is carried out in a standard control cabinet with a width of 22.5 mm. The terminals are clearly labeled (A1, A2, 15, 16, 18, 25, 26, 28, B1, X1, X2, Z1, Z2, Z3), ensuring unambiguous assignment of functions. Time range adjustment is performed via the rotary switch on the front of the device.

Operational Advantages
The combination of 8 time ranges in a single device reduces inventory and simplifies maintenance. The quick and accurate adjustment of long time intervals using the LED flash frequency adjustment aid increases efficiency during commissioning. The UL-listed C/US and UKCA approval ensure usability in various markets. The robust construction and clear LED signaling facilitate operation and troubleshooting in industrial use.

Approvals and Markings
The device is certified with UL-listed C/US and UKCA, confirming compliance with applicable safety and quality standards in the USA, Canada, and the United Kingdom. The approval according to IEC/EN 61812-1 ensures reliability and safety of the relay in industrial applications.

Functions and Features
  • Timing relay function with 8 adjustable time ranges
  • Asymmetric flashing relay according to IEC/EN 61812-1
  • Adjustment aid via LED flash frequency (1 s ± 4%)
  • Control via 2-wire proximity switch (AC/DC)
  • LED indicators for operational readiness, contact position, and timing progress
  • 2 delayed changeover contacts, optionally programmable as instantaneous contact
  • Connection for 2 remote potentiometers for external fine adjustment
  • Timing interruption via control input B1 (+)
  • Fixed screw terminals for conductor cross-sections up to 2.5 mm²
  • Width 22.5 mm, suitable for enclosure mounting
  • Approvals: UL-listed C/US, UKCA

The technical data and functions are documented in the manufacturer's literature and correspond to the state of the art at the time of publication. Technical modifications and improvements may be made at any time.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Time function(s)Cyclic timer
Width22,5 mm
TypeMK 7854N
Connection facility for remote potentiometerYes
Variant
Contact equipping2 changeover contacts delayed
Nominal voltageAC/DC 12 - 240 V
Terminal typescrew terminal fixed
Time range0,05 s - 300 h
Approvals and MarkingsUL-listed C/US, UKCA
VariantSelectable start with impulse or break


Product data sheet
Datasheet for Dold 0054053, EAN: 4030641540531

Questions & answers

What is the delivery time of Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H ?

The article Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054053 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H always at the best possible price. We can give you a discount of 2% on Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054053 MK7854N.82/61 AC/DC12-240V timing relay 0.05S-300H we can offer you a price of 186,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
