Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h

Your rating:
Average rating
product review for Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h
( 4.5 / 5 ) 15 ratings

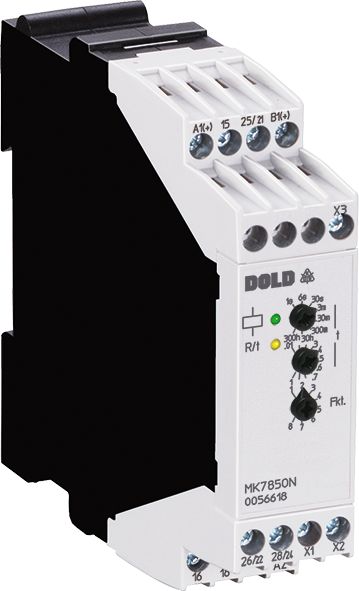

Dold 0054052
This image may differ from the desired article.
194,41 EUR
( 231,35 EUR incl. VAT )
≈ £162.72  |  ≈ $213.66
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h
Datasheet:file_download Download
Lieske Part No.:971345
Mfg Part No: 0054052
UPC/EAN: 4030641540524
Weight:0.32 kg
Type:MK7850N.82/500 AC/DC12-240V
Graduated prices net
From piecesPrice per pieces
5187,12 EUR
10179,83 EUR
15172,54 EUR
20165,25 EUR

Product information for Dold 0054052:

The Dold multifunction relay MK7850N.82/500 AC/DC12-240V is an industrial time relay for applications in automation technology, particularly in industrial and railway technology. It enables the control of time-dependent processes with high flexibility and precision. The device has a width of 22.5 mm and is designed for installation in enclosures. The rated voltage is AC/DC 12 to 240 V, allowing it to be used in various electrical systems.

Applications
This relay is suitable for time-controlled processes in industrial plants, such as in manufacturing automation, process engineering, or rail transport. The wide range of adjustable functions allows adaptation to different control requirements without needing multiple devices. Functions include, among others, delay-on-make, delay-on-break, blinking function, pulse generator, timer, and various wipe functions. The time ranges extend from 0.02 seconds to 300 hours, enabling broad application scope.

Functions and Equipment in Detail
The device offers up to ten different time functions, which can be selected via a rotary switch. These include, for example, delay-on-make (AV), delay-on-break (RV), make-wipe function (EW), break-wipe function (AW), pulse generator (IE), and timer (TP/TI). Functions can also be combined, such as delay-on-make and delay-on-break (AV/RV) or make and break-wipe functions (EW/AW). A special feature is the ability to program one of the two changeover contacts as an immediate contact, providing additional control options. Time interruption and time addition are available in all functions, increasing flexibility.

Technology Explained Simply
Time control is performed by an internal timer, which can be set in eight different time ranges via a rotary switch. The time values are adjustable via a potentiometer control, with the option to connect two external remote potentiometers (t1 and t2) to enable remote adjustment of time values. This is particularly useful in systems where time settings need to be adjusted during operation. LED indicators signal power supply, contact position, and timing progress, simplifying diagnosis and maintenance. The terminal type is a fixed screw terminal, ensuring a secure connection. Wiring connection options include 2 x 1.5 mm² stranded wire with ferrule and plastic sleeve, and 2 x 2.5 mm² solid wire according to DIN 46 228-1/-2/-3/-4.

Compatibility and Accessories
The relay is compatible with a variety of control systems, particularly with two-wire proximity switches, which can be used for actuation. The connection options for remote potentiometers allow integration into higher-level control systems. Optional plug-in terminal blocks are available, enabling quick device replacement. Certifications include UL-listed C/US, UKCA, and CCC, allowing use in various markets. The devices comply with the standard IEC/EN 61812-1.

Mounting and Installation
The device is mounted in enclosures and requires secure fastening. The screw terminals ensure a safe and durable connection for the wires. Installation is carried out in standard enclosure constructions with a width of 22.5 mm. The terminals are designed for the specified wire cross-sections, and the use of ferrules and plastic sleeves is recommended to ensure a stable connection.

Operational Advantages
The combination of multiple functions in a single device reduces the number of required components and simplifies inventory management. The quick and precise adjustment of long time intervals, along with the ability to remotely control time settings via remote potentiometers, increases operational efficiency. LED indicators facilitate monitoring and troubleshooting. The robust construction and certifications according to UL, UKCA, and CCC guarantee safe and reliable operation in industrial environments.

Technical data
ApprovalsUL
Enclosure designSwitch cabinet
Output contacts2 C/O contacts
Time function(s)Cyclic timer, Flasher relay, Fleeting on break, Fleeting on make, Fleeting on make and brake, Impulsgeber, Off-delay, with control signal, On- and Off-delay, On-delay
Width22,5 mm
TypeMK 7850N
Connection facility for remote potentiometerYes
Variant
Contact equipping2 changeover contacts, one programmable as instantaneous contact
Nominal voltageAC/DC 12 - 240 V
Terminal typescrew terminal fixed
Time range0,02 s - 300 h
Approvals and MarkingsUL-listed C/US, UKCA, CCC
VariantConnection facility for 2 external potentiometers (t1 and t2)


Product data sheet
Datasheet for Dold 0054052, EAN: 4030641540524

Questions & answers

What is the delivery time of Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h ?

The article Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0054052 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h always at the best possible price. We can give you a discount of 2% on Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0054052 MK7850N.82/500/61 AC/DC12-240V multifunction relay 0.02 s–300 h we can offer you a price of 187,12 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
