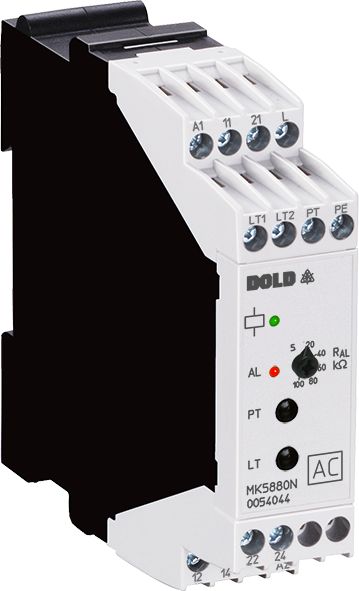

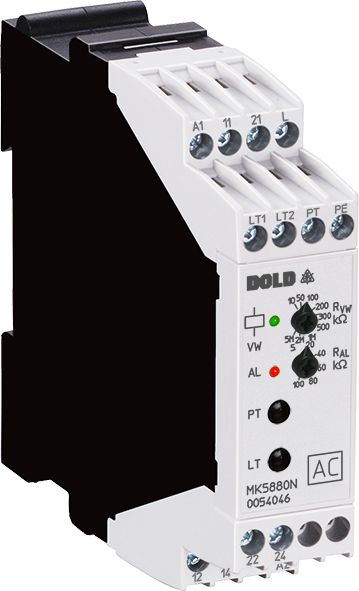

Dold 0054044 MK5880N.12 AC50-400Hz 220-240V insulation monitor 5-100kΩ
|
244,56 EUR |
|||||||||||
|
( 291,03 EUR incl. VAT ) ≈ £204.70 | ≈ $268.77 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 653628 | ||||||||||
| Mfg Part No: | 0054044 | ||||||||||
| UPC/EAN: | 4030641540449 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | MK5880N.12AC50-400HZ220-240V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0054044:
Insulation monitoring in IT systems
The MK5880N is specifically designed for pure AC and three-phase networks that do not have a direct earth connection. Monitoring is achieved by measuring the insulation resistance to earth. The device features an adjustable alarm threshold, which can be set in the range of 5 to 100 kΩ. Adjustment is performed via rotary switches on the front of the device, enabling user-friendly and precise adaptation to specific requirements. Galvanic isolation between the measurement circuit, auxiliary voltage, and output contacts ensures high safety and prevents interference in the main system.
Functions and equipment in detail
The device is equipped with two changeover contacts serving as output relays for alarm signaling. When the set alarm threshold is reached, a signal is triggered via the contacts, which can, for example, activate a warning light or switching operation. Indication is provided via LED indicators: a green LED indicates operational readiness, while a red LED lights up when an insulation fault is detected. The device is designed for an auxiliary voltage of AC 220 to 240 V and a frequency of 50 to 400 Hz. The terminal type is a fixed screw terminal, ensuring a secure and durable connection.
Technology explained clearly
The technology of the MK5880N is based on the principle of continuous insulation resistance measurement. The device detects when the resistance falls below the set alarm threshold and then triggers the alarm. Galvanic isolation of the electrical circuits prevents faults in the measurement circuit from being transmitted to the main system. Programming is performed via front-mounted switches, allowing the device to be configured for memory or hysteresis behavior. With memory behavior, the alarm remains active until manually reset; with hysteresis behavior, the alarm is automatically cleared when the resistance rises above the alarm threshold again.
Compatibility and accessories
The insulation monitor is designed for use in enclosures and has a mounting width of 22.5 mm. The terminals allow connection of stranded conductors with 2 x 1.5 mm² or solid conductors with 2 x 2.5 mm² in accordance with DIN 46228-1/-2/-3/-4. External test and reset buttons can be connected to enable control of functions from outside. Approvals include the CCC mark, confirming compliance with applicable safety standards.
Mounting and installation
Mounting is performed in an enclosure, with the mounting width of 22.5 mm enabling compact placement. The terminals are designed for secure connections, with screw terminals ensuring a firm connection. Terminal markings are clearly defined: A1/A2 for auxiliary voltage, L for the measurement circuit, PE for the protective conductor. Installation must follow the specifications of the respective installation, ensuring correct wiring.
Advantages in operation
The MK5880N provides reliable and precise monitoring of insulation resistance, increasing safety in IT systems. Adjustable alarm thresholds allow adaptation to different requirements, while LED indicators enable quick visual inspection. Galvanic isolation and the rest current principle ensure stable and disturbance-free operation. The ability to connect external buttons enhances flexibility for use in various application scenarios.
| Technical data | |
| Enclosure design | Switch cabinet |
| IMD type | AC |
| Nominal voltage IT system | AC 0 - 500 V |
| Response value | 5 - 100 kΩ |
| Response value type | Adjustable |
| Width | 22,5 mm |
| Type | MK 5880N |
| Earth fault indicator | |
| Variant | |
| Alarm value | 5 - 100 kOhm |
| Auxiliary voltage | AC 220 - 240 V 50 - 400 Hz |
| Contact equipping | 2 changeover contacts |
| Prewarning value | Without |
| Terminal type | screw terminal fixed |
| Approvals and Markings | CCC |
| Variant | 2 output relay (changeover contacts) for alarm |
