Dold 0053946 BH9097.38/0113AC50-690VAC230/110V load monitor AC40A

Your rating:
Average rating
product review for Dold 0053946 BH9097.38/0113AC50-690VAC230/110V load monitor AC40A
( 4.6 / 5 ) 9 ratings

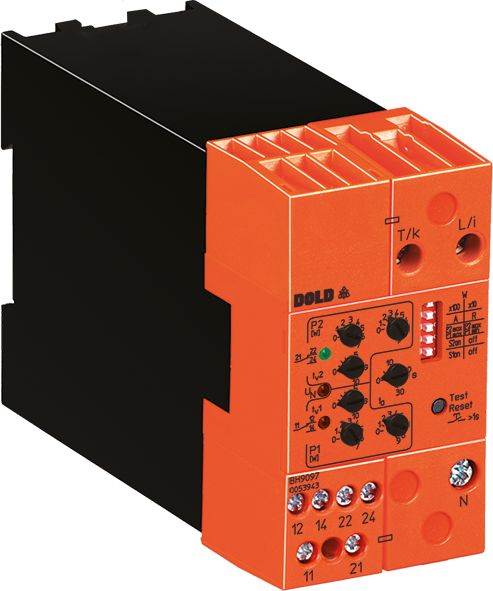

Dold 0053946
This image may differ from the desired article.
512,29 EUR
( 609,63 EUR incl. VAT )
≈ £428.79  |  ≈ $563.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053946 BH9097.38/0113AC50-690VAC230/110V load monitor AC40A
Datasheet:file_download Download
Lieske Part No.:519553
Mfg Part No: 0053946
UPC/EAN: 4030641539467
Weight:0.458 kg
Type:BH9097.38/0113AC50-690VAC230/110V
Graduated prices net
From piecesPrice per pieces
3504,61 EUR
6496,92 EUR
9489,24 EUR
12481,55 EUR

Product information for Dold 0053946:

The load monitor BH9097.38/0113AC50-690VAC230/110V from Dold is an industrial monitoring device of the VARIMETER series, designed for continuous monitoring of electrical load on motors and other electrical consumers in industrial applications. The device detects deviations from preset load limits and responds with corresponding signals via output relays, providing early warning of impending faults or failures. It is particularly suitable for drives with variable load, where preventive maintenance is essential to avoid damage and ensure operational safety.

Applications

The load monitor is used in industrial plants where motor load monitoring is required, for example in manufacturing plants, pump stations, or conveyor systems. It is suitable for single-phase and three-phase loads, with three-phase operation assuming symmetrical loading of all phases, as is typical for motor loads. The maximum rated voltage is 3AC 100–760 V, and the maximum rated current is AC 40 A, corresponding to a power of up to 37 kW at 690 V. The device is installed in enclosures and has a width of 45 mm.

Functions and Equipment in Detail

The device monitors load via active power measurement and detects both underload (P1) and overload (P2). The threshold values for P1 and P2 are adjustable via rotary switches as absolute values in watts. Configuration is done via DIP switches, allowing the device to operate either as an under- and overload monitor (P1min/P2max) or as an overload monitor with a pre-warning stage (P1max/P2max). Each fault condition has its own output relay, with one changeover contact (1 x 1 changeover) available for P1 and P2. The relays can be switched between operating current principle (activated in fault condition) and resting current principle (not activated in fault condition).

Technology Explained Simply

Measurement is performed using a single-phase measurement principle, where voltage and current are measured in one phase. Automatic range switching enables a wide measurement range up to 40 A without external current transformers. A common start-up bypass time ta (0–30 s) prevents false alarms during motor start-up. Status indication is provided via LEDs: a green LED indicates mains voltage (steady light) or the time course of the start-up bypass time (flashing), while two yellow LEDs indicate the status of relays P1 and P2 (steady light when relay is activated, flashing during response delay).

Compatibility and Accessories

The device is designed for operating voltages of 3AC 100–760 V and requires an auxiliary voltage of AC 230/110 V. It complies with the standard IEC/EN 60255-1. The output relays are rated for a maximum load of 40 A. Configuration is done via DIP switches, and a test/reset button supports commissioning and adjustment. Fault conditions are indicated via LEDs: if measurement voltage is missing, all three LEDs flash sequentially; if reverse power is detected, all three LEDs flash simultaneously.

Mounting and Installation

The load monitor is mounted in enclosures and is designed for a width of 45 mm. Wiring is done via the designated connection terminals, with care taken to correctly connect current terminals to avoid false alarms due to incorrect polarity. Settings are adjusted via rotary switches and DIP switches, with instructions for commissioning and adjustment described in the data sheet.

Advantages in Operation

By enabling early detection of load anomalies, the load monitor allows preventive maintenance, avoiding costly damage. Reduced wiring and clear LED indication simplify commissioning and maintenance. Configurability for operating or resting current principle, along with separate response delays for P1 and P2, increases application flexibility. CCC certification ensures compliance with required safety standards.

Technical data
1- / 3-phase1, 3
Enclosure designSwitch cabinet
Measuring range max.40 A (37 kW)
Output contacts2 x 1 C/O contacts
Width45 mm
TypeBH 9097
Operate delayYes
Variant
Auxiliary voltageAC 230/110 V
Contact equipping2 x 1 changeover contact
Nominal current maxAC 40 A
Nominal voltage3AC 100 - 760 V
Approvals and MarkingsCCC
Variant3-phase with auxiliary supply. Start up delay time 0 - 30 s


Product data sheet
Datasheet for Dold 0053946, EAN: 4030641539467
