Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module

Your rating:
Average rating
product review for Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module
( 4.5 / 5 ) 2 ratings
Dold 0053847
This image may differ from the desired article.

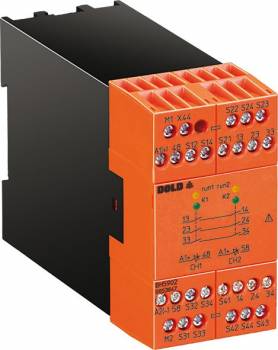

Dold 0053847Dold 0053847
748,69 EUR
( 890,94 EUR incl. VAT )
≈ £626.65  |  ≈ $822.81
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module
Lieske Part No.:1583185
Mfg Part No: 0053847
UPC/EAN: 4030641538477
Weight:0.348 kg
Type:BH5902.03/01MF2/61 DC24V
Graduated prices net
From piecesPrice per pieces
3731,84 EUR
6715,00 EUR
9698,15 EUR
12681,31 EUR

Product information for Dold 0053847:

The Dold BH5902.03/01MF2/61 DC24V is a light curtain module with switchable functions, developed for the safe control of machines and systems. It serves the protective function for personnel and machinery, for example in conveyor belts or presses, and enables the integration of various operating modes via a rotary switch. The device is designed for use in industrial environments and meets the requirements for safety functions according to international standards.

Applications
This module is intended for use in safety-critical applications, particularly in manufacturing and processing industries. It can be used in protective operation, protective operation with muting function, or in cycle operation. Examples include controlling light curtains, conveyor belts, or presses, where precise and reliable response to interruption of a light beam is required. The muting function allows temporary bypassing of the safety function during specific operations (e.g., inserting workpieces) without compromising overall safety. The cycle operation function enables control of multiple cycle sequences, with the number of cycles being selectable.

Functions and Equipment in Detail
The device features a contact configuration with 3 closers and is designed for a rated voltage of DC 24 V. It supports connection of up to three non-contact protective devices (BWS) in 2-channel operation, or alternatively combinations of BWS and muting sensors. The cross-short detection ensures that a short circuit between channels is detected and signaled, increasing the reliability of the safety function. Additionally, wire break detection is integrated at the BWS connection to detect mechanical damage or interruptions in the wiring system.

Technology Explained Simply
The module operates with a response time of up to 30 ms, ensuring fast and reliable reaction to interruption of the light beam. The LED indicators for RUN operation and for channel 1 and 2 enable visual monitoring of the operating status. The under- and overvoltage detection protects the device from voltage fluctuations and signals these via the indicators. The SIL performance level (SIL CL) 3 according to IEC/EN 62061 and the Performance Level (PL) e according to EN ISO 13849-1 guarantee high safety performance. The Category 4 according to EN ISO 13849-1 indicates that the device is suitable for the highest requirement class in safety-critical applications. The maximum thermal current rating (Ith) is 5 A, defining the electrical load capacity of the device.

Compatibility and Accessories
The device is suitable for connection to BWS Type 4 or tested BWS Type 2 according to IEC/EN 61496-1. Cross-short detection is integrated in the BWS, enhancing system integrity. The operating modes are switchable via a rotary switch, making the module flexible for various application scenarios. The muting function can be configured with different signal sequences from muting sensors, and the maximum muting time is also configurable. An override function via a start button allows targeted overriding of the safety function under specific conditions.

Mounting and Installation
The module has a construction width of 45 mm and is designed for mounting in standard control panels. Installation is carried out via the designated connection terminals, ensuring correct wiring of the BWS and muting sensors. The certifications TÜV, UL-listed C/US, CSA C/US, UKCA confirm compliance with respective safety and quality standards in Europe and North America.

Advantages in Operation
Through the combination of multiple operating modes, high safety performance, and simple configurability via the rotary switch, the module offers a flexible and reliable solution for various industrial applications. Integrated diagnostic functions such as LED indicators and fault detection facilitate maintenance and quick identification of malfunctions. Support for 1- and 2-channel systems, as well as the ability to integrate muting sensors and key switches, significantly expands the range of applications. The SIL 3 certification according to IEC/EN 62061 and the PL e certification according to EN ISO 13849-1 ensure compliance with the highest safety requirements in industry.

Technical data
1- / 2-channel1, 2
ApprovalsTÜV, UL
Cat. / PL acc. to EN ISO 13849-14/e
Output contacts max.3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeBH 5902
Cross fault detectionYes
Variant
Contact equipping3 NO contacts
Nominal voltageDC 24 V
Approvals and MarkingsUL-listed C/US, CSA C/US, TÜV, UKCA


Questions & answers

What is the delivery time of Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module ?

The article Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053847 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module always at the best possible price. We can give you a discount of 2% on Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0053847 BH5902.03/01MF2/61 DC24V light grid module we can offer you a price of 731,84 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
