Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module

Your rating:
Average rating
product review for Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module
( 4.7 / 5 ) 30 ratings

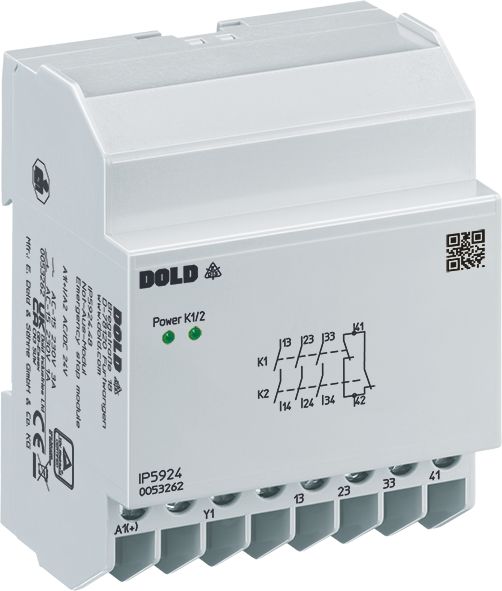

Dold 0053544
This image may differ from the desired article.
Dold 0053544Dold 0053544
306,00 EUR
( 364,14 EUR incl. VAT )
≈ £256.12  |  ≈ $336.29
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module
Datasheet:file_download Download
Lieske Part No.:1313037
Mfg Part No: 0053544
UPC/EAN: 4030641535445
Weight:0.3 kg
Type:IP5924.02 AC230V 50/60HZ
Graduated prices net
From piecesPrice per pieces
4294,53 EUR
8283,05 EUR
12271,58 EUR
16260,10 EUR

Product information for Dold 0053544:

The Dold safety relay IP5924.02 AC230V 50/60HZ is an emergency stop module for use in safety-critical systems. It is designed for the safe enablement and interruption of safety circuits to protect personnel and machinery from hazards. The device is designed for use in industrial environments, particularly in systems certified to EN 50156-1 for combustion systems. It features a width of 70 mm and is designed for mounting in standard control panels.

Safety functions and approvals
This safety relay meets the requirements of EN ISO 13849-1 with Performance Level (PL) e and Category 4. It is also suitable for use in systems with Safety Integrity Level (SIL) 3 according to IEC/EN 62061 and IEC/EN 61508. These approvals guarantee high safety performance and are relevant for applications in manufacturing, process engineering, and energy supply. The TÜV and UKCA approvals confirm compliance with European and British safety standards.

Functions and equipment in detail
The module provides a contact configuration with 2 normally open contacts, with up to 4 normally open contacts per device being realizable. The output contacts are rated for a maximum thermal current Ith of 5 A. The circuit is connected via removable screw terminals, enabling flexible and secure connections. The terminals are suitable for conductor cross-sections up to 2.5 mm² with ferrules according to DIN 46228-1/-2/-3/-4. Galvanic isolation in the circuit ensures high electrical insulation between input and output.

Technology explained simply
The device operates at a nominal voltage of AC 230 V at 50/60 Hz. Integrated LED indicators signal the operating status and the status of channels 1 and 2. A short-circuit detection between terminal Y1 and ground protects the device from damage due to unauthorized electrical connections. The single-channel or dual-channel wiring allows flexible integration into existing safety architectures. The width of 70 mm corresponds to the standard for industrial safety modules and enables compact mounting in control panels.

Compatibility and accessories
The IP5924.02 is designed as part of the IP 5924 and BG 5924 product families, with the IP 5924 variant featuring a larger width. It is designed for use in systems requiring safe control of emergency stop functions. The use of removable terminal blocks simplifies installation and maintenance. Compatibility with other modules in the series enables modular expansion of safety functions.

Mounting and installation
Mounting is carried out in standard control panels with a width of 70 mm. The removable screw terminals allow for easy and secure connection of cables. The terminals are designed for use with stranded conductors up to 2.5 mm² with ferrules according to DIN 46228-1/-2/-3/-4. Installation must follow the manufacturer’s technical instructions, ensuring correct wiring and compliance with safety regulations.

Advantages in operation
The safety relay offers high reliability through its PL e / Category 4 and SIL 3 approvals. The integrated LED indicators enable quick diagnosis of the operating status. Short-circuit detection increases operational safety. The flexible wiring in single- or dual-channel configuration, along with galvanic isolation in the circuit, provides additional safety margins. The width of 70 mm and the use of removable terminals facilitate integration into existing systems and ease maintenance during operation.

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width70 mm
TypeIP 5924
Variant
Contact equipping2 NO contacts
Nominal voltageAC 230 V 50/60 Hz
Approvals and MarkingsTÜV, UKCA


Product data sheet
Datasheet for Dold 0053544, EAN: 4030641535445

Questions & answers

What is the delivery time of Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module ?

The article Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053544 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0053544 IP5924.02 AC230V 50/60Hz emergency stop module we can offer you a price of 294,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
