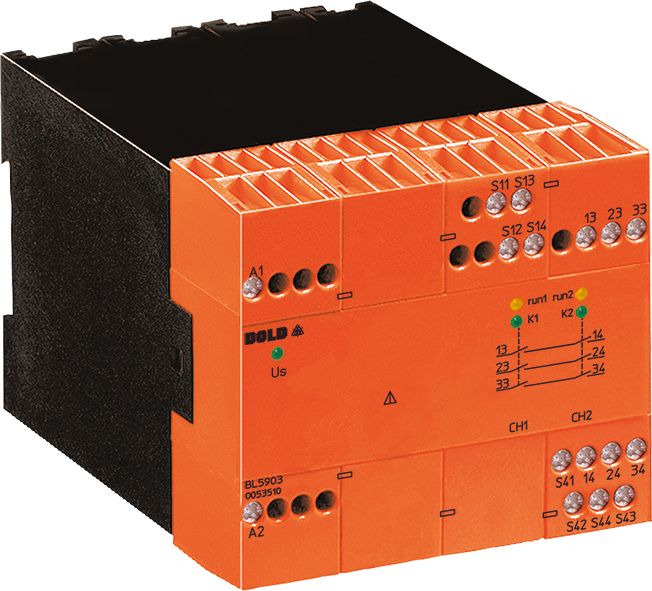

Dold 0053510 BL5903.03/00000 AC230V emergency stop module
|
698,84 EUR |
|||||||||||
|
( 831,62 EUR incl. VAT ) ≈ £584.93 | ≈ $768.03 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1583180 | ||||||||||
| Mfg Part No: | 0053510 | ||||||||||
| UPC/EAN: | 4030641535100 | ||||||||||
| Weight: | 0.32 kg | ||||||||||
| Type: | BL5903.03/00000 AC230V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0053510:
Applications
This module is designed for applications in industrial automation where high safety integrity is required. It is particularly suitable for systems where automatic restart after power restoration is necessary, but the activation of an emergency stop pushbutton must be securely stored and monitored. Application areas include, for example, pump controls, compressed air supplies, or conveyor systems, where uncontrolled restart after a power failure must be avoided.
Functions and equipment in detail
The device stores the activation of an emergency stop pushbutton and triggers disconnection of the connected load. Upon restoration of supply voltage, the ON function is automatically activated, provided no emergency stop has been triggered. The cross-circuit detection monitors all inputs and detects short-circuit and open-circuit faults to prevent malfunctions caused by defective connections. The output contacts consist of 3 make contacts, suitable for controlling auxiliary contacts or loads. Indication is provided via LED indicators for channel 1 and 2, as well as for fault diagnostics, supporting operation and troubleshooting.
Technology explained simply
The safety relay operates at a rated voltage of AC 230 V and is designed for use in 1- or 2-channel systems. The removable screw terminals allow flexible and secure wiring. The maximum thermal current rating is 5 A, which is sufficient for most industrial applications. The width of 90 mm corresponds to the standard for enclosures according to DIN and allows easy installation in existing control panels. The integrated feedback loop enables external contact amplification to ensure signal transmission.
Compatibility and accessories
The module is designed for 2-channel connection of an emergency stop pushbutton. It is compatible with standard emergency stop switches and can be integrated into existing safety architectures. The connection terminals are designed for wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46228-1/-2/-3). Device indicators support diagnosis and maintenance, with blink codes used for fault conditions.
Mounting and installation
The device is mounted in enclosures and requires secure wiring of input and output contacts. The removable terminals facilitate installation and maintenance. Mounting is carried out in the usual manner within an enclosure, taking into account the width of 90 mm. The connection terminals are designed for use with wires according to DIN 46228, ensuring a standardized and secure connection.
Advantages in operation
The module offers high safety integrity through certifications according to EN ISO 13849-1 (Category 4, Performance Level e) and IEC/EN 62061 (SIL CL 3, SIL 3). The integrated cross-circuit detection and wire short-circuit and open-circuit detection increase system reliability. The automatic ON function after voltage restoration reduces the need for manual reset and improves operational safety. The LED indicators enable quick fault diagnosis and reduce maintenance time.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 3 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 90 mm |
| Type | BL 5903 |
| Cross fault detection | |
| Variant | |
| Contact equipping | 3 NO contacts |
| Nominal voltage | AC 230 V |
| Approvals and Markings | TÜV, UKCA |
| Variant | Für 2-kanaligen Anschluß von einem Not-Aus-Taster |
Questions & answers
What is the delivery time of Dold 0053510 BL5903.03/00000 AC230V emergency stop module ?
The article Dold 0053510 BL5903.03/00000 AC230V emergency stop module is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053510 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0053510 BL5903.03/00000 AC230V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0053510 BL5903.03/00000 AC230V emergency stop module if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0053510 BL5903.03/00000 AC230V emergency stop module we can offer you a price of 672,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
