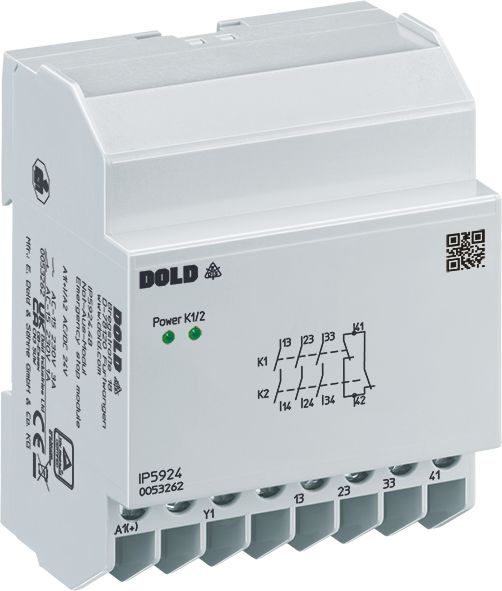

Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module

Your rating:
Average rating
product review for Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module
( 4.6 / 5 ) 16 ratings
Dold 0053377
This image may differ from the desired article.
Dold 0053377Dold 0053377
306,00 EUR
( 364,14 EUR incl. VAT )
≈ £256.12  |  ≈ $336.29
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module
Datasheet:file_download Download
Lieske Part No.:1094070
Mfg Part No: 0053377
UPC/EAN: 4030641533779
Weight:0.25 kg
Type:IP5924.48 AC230V 50/60HZ
Graduated prices net
From piecesPrice per pieces
4294,53 EUR
8283,05 EUR
12271,58 EUR
16260,10 EUR

Product information for Dold 0053377:

The Dold IP5924.48 AC230V 50/60HZ is a safety relay, specifically developed for use in industrial plants where the safe control of emergency stop functions and protective measures for personnel and machinery is required. The device serves for safety-oriented enabling and interruption of a safety circuit and is designed for use in plants with high safety requirements. It features a contact configuration with 3 NO contacts and 1 NC contact and operates at a nominal voltage of AC 230 V 50/60 Hz. The width is 70 mm, making it suitable for mounting in standard control panels.

Safety functions and approvals
The safety relay IP5924.48 meets the requirements of standard EN ISO 13849-1 with Performance Level (PL) e and Category 4. Additionally, it complies with the SIL requirement level (SIL CL) 3 according to IEC/EN 62061 as well as Safety Integrity Level (SIL) 3 according to IEC/EN 61508. These approvals guarantee high reliability and safety in controlling critical functions. The device is also approved according to EN 50156-1 for burner installations, enabling its use in specific application areas. The TÜV and UKCA approvals confirm compliance with European safety standards.

Functions and equipment in detail
The relay is designed for single-channel or dual-channel wiring, allowing flexible integration into different safety architectures. The output contacts allow up to 4 NO contacts, enabling control of multiple loads or safety functions. The connection technology is based on removable screw terminals, which enable secure and quick connection of wires. The terminals are designed for stranded wires with 2 x 1.5 mm² (with ferrule and plastic sleeve DIN 46228-1/-2/-3/-4) or 2 x 2.5 mm² (with ferrule DIN 46228-1/-2/-3). Galvanic isolation in the circuit ensures electrical separation between control and load circuits, increasing safety.

Technology explained simply
The function of the relay is based on monitoring a safety circuit, which is interrupted in the event of an emergency stop. The device detects the state and responds accordingly by switching the output contacts. LED indicators for channel 1 / 2 and operating status enable visual monitoring of the device. Short-circuit detection between terminal Y1 and ground protects the device from damage due to unauthorized electrical connections. The maximum thermal current (Ith) is 5 A, defining the relay’s load capacity.

Compatibility and accessories
The IP5924.48 is capable of interacting with other safety components within an overall system, particularly in plants using redundant or modular safety architectures. It is designed for use in industrial environments where high availability and reliability are required. Compatibility with other Dold products such as the BG 5924 is ensured through common technology and uniform connection technology.

Mounting and installation
Mounting is carried out in standard control panels with a width of 70 mm. The removable terminal blocks facilitate installation and maintenance. The connection terminals are designed for use with wires according to DIN 46228, ensuring a standardized and secure connection. Mounting requires no additional tools, as the terminal blocks are simply inserted into the designated holders.

Advantages in operation
The relay offers high safety performance with PL e / Cat. 4 and SIL 3, making it suitable for critical applications. The LED indicators enable quick diagnosis of the operating status. Galvanic isolation and short-circuit detection increase operational safety. The flexible wiring options (single- or dual-channel) allow adaptation to different requirements. Use in burner installations according to EN 50156-1 expands the range of applications.

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width70 mm
TypeIP 5924
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC 230 V 50/60 Hz
Approvals and MarkingsTÜV, UKCA


Product data sheet
Datasheet for Dold 0053377, EAN: 4030641533779

Questions & answers

What is the delivery time of Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module ?

The article Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053377 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0053377 IP5924.48 AC230V 50/60Hz emergency stop module we can offer you a price of 294,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
