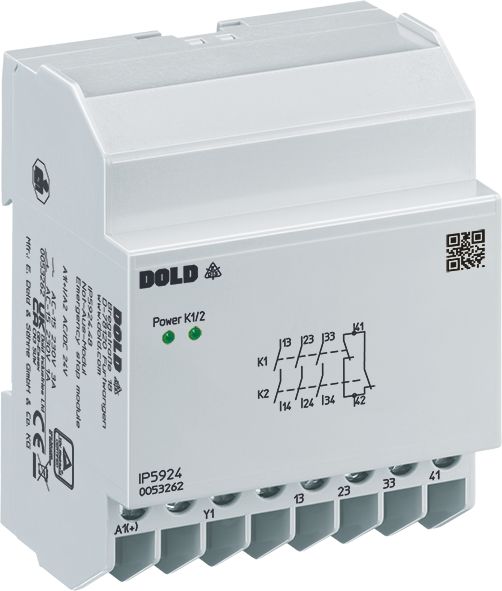

Dold 0053262 IP5924.48 AC/DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0053262 IP5924.48 AC/DC24V emergency stop module
( 4.6 / 5 ) 20 ratings
Dold 0053262
This image may differ from the desired article.
Dold 0053262Dold 0053262
306,00 EUR
( 364,14 EUR incl. VAT )
≈ £256.12  |  ≈ $336.29
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053262 IP5924.48 AC/DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1313036
Mfg Part No: 0053262
UPC/EAN: 4030641532628
Weight:0.25 kg
Type:IP5924.48 AC/DC24V
Graduated prices net
From piecesPrice per pieces
4294,53 EUR
8283,05 EUR
12271,58 EUR
16260,10 EUR

Product information for Dold 0053262:

The Dold IP5924.48 AC/DC24V is a safety relay, specifically designed for use in industrial plants for the safe control of emergency stop functions. It serves to protect personnel and machinery by safely enabling and interrupting a safety circuit. The device is of type IP 5924 and features a contact configuration with 3 NO contacts and 1 NC contact. The rated voltage is AC/DC 24 V, making it suitable for use in various industrial environments with common operating voltages.

Applications
This safety relay is intended for applications in industrial automation, particularly in systems requiring high safety integrity. It is used, for example, in machine controls, systems with emergency stop functions, or in combustion installations, as it complies with the requirements of EN 50156-1. Its use is in environments where the interruption of a circuit in case of fault or during emergency stop operation must be safe and reliable.

Functions and Equipment in Detail
The device allows for single-channel or dual-channel wiring, enabling flexible integration into different safety architectures. The output contacts are designed for a maximum of 4 NO contacts, with the contact configuration set to 3 NO and 1 NC. The connection technology uses removable screw terminals, which enable secure and quick connection of wires. The terminals are designed for stranded wires up to 2.5 mm² with ferrules according to DIN 46228-1/-2/-3/-4. The width is 70 mm, allowing mounting in standard control panels.

Technology Explained Simply
The safety relay operates according to standards for safety-oriented controls. It achieves Performance Level (PL) e and Category 4 according to EN ISO 13849-1, representing the highest requirement level for safety functions in industrial automation. Additionally, it meets the requirements for Safety Integrity Level (SIL) 3 according to IEC/EN 62061, ensuring reliability and fault-free operation in critical applications. The maximum thermal current (Ith) is 5 A, defining the contact load capacity. Short-circuit detection between terminal Y1 and ground provides additional safety by detecting unauthorized electrical connections.

Compatibility and Accessories
The device is designed for use in safety systems requiring high integrity. It is compatible with systems requiring single- or dual-channel wiring. LED indicators for channel 1 / 2 and operating status enable visual monitoring of the device. The TÜV and UKCA certifications confirm compliance with European safety standards.

Mounting and Installation
Mounting is carried out in standard control panels with a width of 70 mm. The removable screw terminals facilitate installation and maintenance. The terminals are designed for wires up to 2.5 mm², with the use of ferrules according to DIN 46228-1/-2/-3/-4 recommended. Mounting is performed in the usual manner in control panels, with electrical connections to be made according to the manufacturer’s wiring diagrams.

Advantages in Operation
The safety relay offers high reliability by meeting the highest safety requirements (PL e / Cat. 4, SIL 3). The LED indicators enable quick diagnosis of the operating status. The removable terminals simplify maintenance and replacement. Short-circuit detection increases operational safety. The device is suitable for manual or automatic start, enabling integration into various control logics.

Technical data
1- / 2-channel1, 2
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.4 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width70 mm
TypeIP 5924
Variant
Contact equipping3 NO contacts, 1 NC contact
Nominal voltageAC/DC 24 V
Approvals and MarkingsTÜV, UKCA


Product data sheet
Datasheet for Dold 0053262, EAN: 4030641532628

Questions & answers

What is the delivery time of Dold 0053262 IP5924.48 AC/DC24V emergency stop module ?

The article Dold 0053262 IP5924.48 AC/DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053262 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053262 IP5924.48 AC/DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0053262 IP5924.48 AC/DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Dold 0053262 IP5924.48 AC/DC24V emergency stop module we can offer you a price of 294,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
