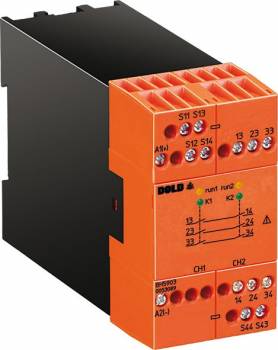

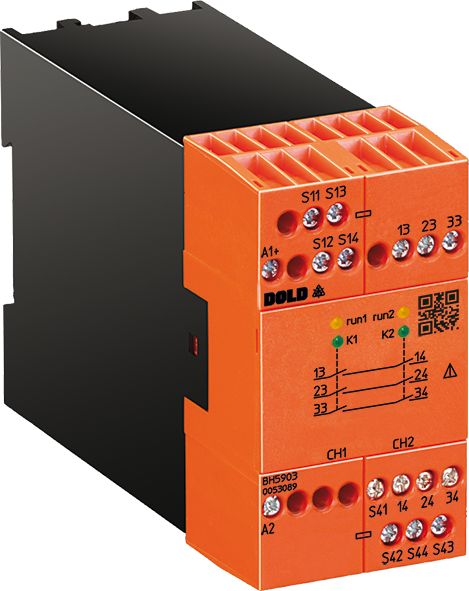

Dold 0053092 BH5903.22/00020/61 DC24V emergency stop module
|
544,37 EUR |
|||||||||||
|
( 647,80 EUR incl. VAT ) ≈ £455.64 | ≈ $598.26 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312965 | ||||||||||
| Mfg Part No: | 0053092 | ||||||||||
| UPC/EAN: | 4030641530921 | ||||||||||
| Weight: | 0.32 kg | ||||||||||
| Type: | BH5903.22/00020 DC24V | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0053092:
Applications
This safety relay is intended for use in industrial plants where safe shutdown and controlled restart after a power outage are required. Typical applications include machine controls, pump and compressor systems, as well as plants in the process industry, where operational safety and the prevention of uncontrolled restarts are paramount. The integrated power failure detection enables a safe response to power interruptions, minimizing the risk of unexpected machine movements.
Functions and equipment in detail
The module stores the actuation of an emergency stop button and activates the shutdown of the connected machine. Upon power restoration after a power failure, an automatic start function is triggered, provided no emergency stop has been activated. The cross-connection detection function monitors the inputs for unauthorized connections between channels to prevent false alarms or incorrect actuations. Additionally, the device detects short circuits and wire breaks on all inputs, increasing the reliability of the safety function. The contact configuration includes 2 normally closed contacts and 1 normally open contact as a signaling contact, enabling flexible integration into existing control systems.
Technology explained clearly
The safety relay operates at a nominal voltage of DC 24 V and is designed for a maximum thermal current load of 5 A. The output contacts are configured as normally closed contacts, with up to 3 normally closed contacts available. The width is 45 mm, enabling compact mounting in standard control panels. Connections are made via removable screw terminals, allowing secure and quick connection of cables with cross-sections up to 2.5 mm². The terminals are suitable for stranded wires with ferrules and plastic collars according to DIN 46228-1/-2/-3/-4, as well as for 2 x 1.5 mm² stranded wire with ferrules DIN 46228-1/-2/-3/-4. Integrated LED indicators signal the status of channels 1 and 2 as well as fault conditions, enabling quick diagnosis during operation.
Compatibility and accessories
The device is designed for single-channel connection of two emergency stop buttons and can be used in combination with other safety components that meet the same standards. The feedback loop enables external contact amplification, improving signal transmission over long distances or in electrically noisy environments. Certifications include UL-listed C/US, TÜV, and UKCA, enabling use in various markets. Safety integrity is ensured by compliance with standards EN ISO 13849-1 (Performance Level PL e, Category 4) and IEC/EN 62061 (SIL CL 3, SIL 3).
Mounting and installation
Mounting is carried out in standard control panels with a width of 45 mm. The removable screw terminals facilitate installation and maintenance. Connections are clearly labeled, supporting error-free wiring. The LED indicators allow visual inspection of the operating status and fault diagnosis directly on the device.
Advantages in operation
The safety relay provides reliable shutdown upon emergency stop actuation and safe restart after power failure. The integrated diagnostic function with LED indicators and blink codes enables quick fault detection. Cross-connection detection and wire break detection increase system reliability. The compact design and removable terminals simplify installation and maintenance. Compliance with safety standards PL e, Category 4, and SIL 3 ensures suitability for safety-critical applications.
| Technical data | |
| 1- / 2-channel | 1, 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 4/e |
| Connection | Pluggable screw terminals |
| Output contacts max. | 3 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 5 A |
| Width | 45 mm |
| Type | BH 5903 |
| Cross fault detection | |
| Variant | |
| Contact equipping | 2 NO contacts, 1 NC contact as signal output |
| Nominal voltage | DC 24 V |
| Approvals and Markings | UL-listed C/US, TÜV, UKCA |
| Variant | Für 1-kanaligen Anschluß von zwei Not-Aus-Tastern |
