Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module

Your rating:
Average rating
product review for Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module
( 4.5 / 5 ) 4 ratings
Dold 0053090

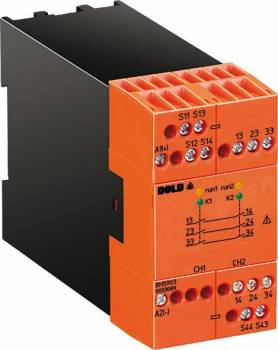

This image may differ from the desired article.
Dold 0053090Dold 0053090
544,37 EUR
( 647,80 EUR incl. VAT )
≈ £455.64  |  ≈ $598.26
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module
Datasheet:file_download Download
Lieske Part No.:1583181
Mfg Part No: 0053090
UPC/EAN: 4030641530907
Weight:0.32 kg
Type:BH5903.03/00020 DC24V
Graduated prices net
From piecesPrice per pieces
3523,96 EUR
6503,54 EUR
9483,13 EUR
12462,71 EUR

Product information for Dold 0053090:

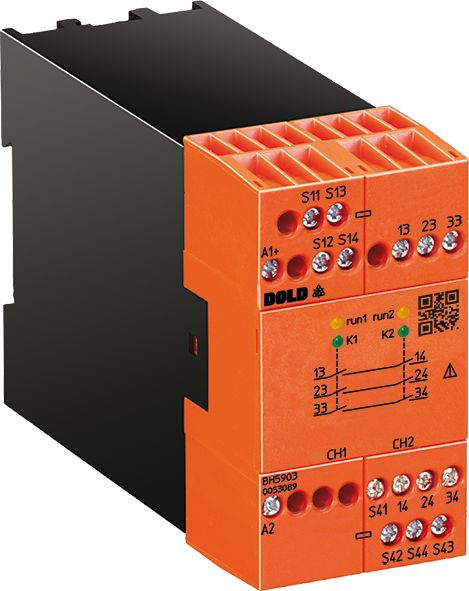

The Dold safety relay BH5903.03/00020 DC24V is a not-out module for use in industrial control systems, particularly in plants that automatically restart after power restoration following a power failure, such as in compressor controls or water and wastewater technology. The device is designed for single-channel connection of two not-out buttons and features integrated power failure detection. It ensures safe shutdown of machines and systems in emergencies and guarantees controlled restart after power restoration, provided no not-out button has been activated.

Applications
This safety relay is designed for use in industrial plants requiring high safety standards. It is particularly used in systems where uncontrolled restart after a power failure must be prevented. Application areas include, for example, automation technology in manufacturing, process engineering, as well as water supply and wastewater treatment. The integrated cross-connection detection and wire break detection at all inputs increase the reliability of the safety function.

Functions and equipment in detail
The device stores the activation of a not-out button and activates the safety function accordingly. Upon restoration of supply voltage, an automatic enable function is triggered, provided no not-out button has been activated. The feedback loop enables external contact amplification, facilitating integration into existing control systems. Indication is provided via LED indicators for channel 1 and 2, as well as for fault diagnostics, monitoring operation and detecting malfunctions. The contact configuration includes 3 NO contacts, suitable for controlling loads in the safe area.

Technology explained simply
The safety relay operates at a rated voltage of DC 24 V and is designed for a maximum thermal current load of 5 A. Connection is made via removable screw terminals, enabling flexible and secure connections. The terminals are designed for wires with a cross-section up to 2.5 mm², and the use of 1.5 mm² wire with ferrule and plastic collar according to DIN 46228-1/-2/-3/-4 is also possible. The width is 45 mm, allowing compact mounting in standard control panels. The integrated cross-connection detection monitors inputs and detects faults such as short circuits or breaks to ensure safety function reliability.

Compatibility and accessories
The device is designed for use in 1- and 2-channel systems, with the BH5903.03/00020 variant specifically designed for single-channel connection of two not-out buttons. It meets safety requirements according to EN ISO 13849-1, achieving Performance Level (PL) e and Category 4. Additionally, it complies with SIL 3 requirements according to IEC/EN 62061 and the SIL Claimed Level (SIL CL) 3 according to IEC/EN 61508. Certifications include UL-listed C/US, TÜV, and UKCA, enabling use in various markets.

Mounting and installation
Mounting is done in standard control panels with a width of 45 mm. Removable screw terminals simplify installation and maintenance. The connection terminals are designed for use with wires according to DIN 46228, ensuring secure and standardized connections. LED indicators support commissioning and maintenance by displaying operational status and potential faults.

Advantages in operation
The safety relay provides reliable and safe shutdown in emergencies, supported by integrated fault detection. The automatic restart upon power restoration, provided no not-out button has been activated, reduces operational interruptions. Clear LED indication and compact design facilitate integration into existing systems. Certifications according to UL, TÜV, and UKCA, as well as safety certifications according to EN ISO 13849-1 and IEC/EN 62061, ensure compliance with international standards and increase acceptance in industrial applications.

Technical data
1- / 2-channel1, 2
ApprovalsUL
Cat. / PL acc. to EN ISO 13849-14/e
ConnectionPluggable screw terminals
Output contacts max.3 NO contacts
SIL CL acc. to IEC/EN 620613
SIL acc. to IEC/EN 620613
Thermal current Ith max.5 A
Width45 mm
TypeBH 5903
Cross fault detectionYes
Variant
Contact equipping3 NO contacts
Nominal voltageDC 24 V
Approvals and MarkingsUL-listed C/US, TÜV, UKCA
VariantFür 1-kanaligen Anschluß von zwei Not-Aus-Tastern


Product data sheet
Datasheet for Dold 0053090, EAN: 4030641530907

Questions & answers

What is the delivery time of Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module ?

The article Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0053090 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module always at the best possible price. We can give you a discount of 2% on Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Dold 0053090 BH5903.03/00020/61 DC24V emergency stop module we can offer you a price of 523,96 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
