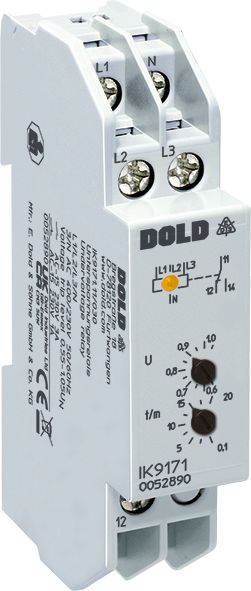

Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s

Your rating:
Average rating
product review for Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s
( 4.1 / 5 ) 10 ratings
Dold 0052981
This image may differ from the desired article.
116,97 EUR
( 139,19 EUR incl. VAT )
≈ £97.90  |  ≈ $128.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s
Datasheet:file_download Download
Lieske Part No.:1312803
Mfg Part No: 0052981
UPC/EAN: 4030641529819
Weight:0.073 kg
Type:IK9171.11/030 3AC400/230V,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5116,09 EUR
10115,22 EUR
15114,34 EUR
20113,46 EUR

Product information for Dold 0052981:

The Dold undervoltage relay IK9171.11/030 is an electrical monitoring device for detecting undervoltages in three-phase networks. It serves for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the rest current principle, whereby the output relay is not activated in the event of a fault, ensuring safe and reliable fault detection. The width is 17.5 mm, and it is designed for use in installation distributors, with connection terminals located at the bottom (I-type construction). The nominal voltage is 3/N AC 400/230 V, and the device is suitable for both three-phase and single-phase connections. For single-phase operation, terminals L1, L2, and L3 must be connected.

Applications
This relay is used in industrial and commercial facilities where continuous power supply is critical. It monitors voltage in three-phase networks and responds to undervoltages below the set pickup value. Applications include ensuring power supply for emergency lighting, safety systems, or critical machinery. The variant with time delay t1 is particularly suitable for unstable networks, where a defined waiting period must be observed before switching to the fault state after an error. This prevents unwanted, rapid switching operations during short-term voltage dips.

Functions and Features in Detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un). The time delay t1 is adjustable between 2 and 200 seconds, allowing adaptation of the response time to voltage dips. The LED indicator signals the state of the output relay: a yellow LED lights up when contact 11-14 is closed, indicating the output is activated. Phase sequence is arbitrary, providing flexible installation. The device is operational without auxiliary voltage, simplifying installation and reducing dependence on additional power sources.

Technology Explained Simply
The relay measures the arithmetic mean voltage of each phase against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). The time delay t1 is only effective if the voltage L1-N (IK/SK 9171) or L3-N (IL/SL 9171) is at least 0.5 times nominal voltage. After switching on the operating voltage, the device initially enters the good state, even if a fault is present. The fault state is only activated after the time delay t1 has elapsed. The hysteresis is approximately 4 %, ensuring stable switching behavior during voltage fluctuations.

Compatibility and Accessories
The device is designed for 3-phase networks with neutral conductor connection (3/N AC 400/230 V) but can also be operated in single-phase mode. It is equipped with a changeover contact (1 C/O contact) suitable for switching loads up to 4 A. The maximum nominal voltage is 3/N AC 500/290 V. The device variant is certified according to IEC/EN 60255-1 and bears the UKCA mark. It is available in I-type construction, designed for installation and industrial distributors in accordance with DIN 43 880.

Mounting and Installation
Mounting is carried out in standard installation distributors. The width of 17.5 mm allows for compact placement. The connection terminals are located at the bottom, facilitating wiring in typical distributors. The devices are tool-free connectable, speeding up installation. The mounting height is low, minimizing space requirements.

Operational Advantages
The relay provides reliable network monitoring without additional auxiliary voltage. Adjustable parameters such as pickup value and time delay allow individual adaptation to specific applications. The LED indicator enables quick visual control of the operating state. Compatibility with single- and three-phase networks increases installation flexibility. The construction based on the rest current principle ensures safe fault detection, as the relay is not activated in the event of a fault, preventing false alarms.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,55 - 1,05 Un
Time delay2 - 200 s
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0052981, EAN: 4030641529819

Questions & answers

What is the delivery time of Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s ?

The article Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052981 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s always at the best possible price. We can give you a discount of 2% on Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0052981 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=2-200s we can offer you a price of 116,09 EUR per piece. The more you buy, the cheaper the article will be.
