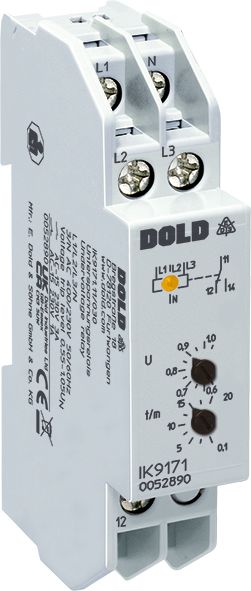

Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M

Your rating:
Average rating
product review for Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M
( 4.8 / 5 ) 6 ratings
Dold 0052890
This image may differ from the desired article.
116,97 EUR
( 139,19 EUR incl. VAT )
≈ £97.90  |  ≈ $128.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M
Datasheet:file_download Download
Lieske Part No.:1312802
Mfg Part No: 0052890
UPC/EAN: 4030641528904
Weight:0.073 kg
Type:IK9171.11/030 3AC400/230V,55-1,05UN
Graduated prices net
From piecesPrice per pieces
5116,09 EUR
10115,22 EUR
15114,34 EUR
20113,46 EUR

Product information for Dold 0052890:

The Dold undervoltage relay type IK9171.11/030 is an electrical monitoring device for detecting undervoltages in three-phase power networks. It serves for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device is designed for use in 1- or 3-phase networks and can also be connected single-phase, whereby the terminals L1, L2 and L3 must be bridged. It operates on the no-current principle, in which the output relay is not activated in the event of a fault, ensuring safe and reliable fault detection.

Applications
This relay is designed for use in industrial and installation applications, particularly in areas where continuous power supply is critical. It is used to automatically switch to a backup supply in the event of voltage dips or phase loss. Applications include ensuring power supply for emergency lighting, safety systems or critical production machinery. The variant with time delay t1 is particularly suitable for unstable networks, where a defined waiting period must be observed after a fault before switching, to avoid unwanted switching operations.

Functions and equipment in detail
The device features an adjustable pickup value in the range of 0.55 to 1.05 times nominal voltage (Un), allowing flexible adaptation to different network conditions. The nominal voltage is 3/N AC 400/230 V, although the device is also suitable for voltages up to 3/N AC 500/290 V. The time delay t1 is adjustable from 0.1 to 20 minutes and ensures that the device only switches to fault state after the specified time has elapsed, provided the phase voltage L1-N (for IK/SK 9171) or L3-N (for IL/SL 9171) is at least 0.5 Un. This prevents false triggering during short-term voltage dips. The contact configuration includes one changeover contact (1 C/O contact), used for controlling auxiliary circuits or switching operations.

Technology explained clearly
The relay measures the arithmetic mean of each phase against the neutral conductor (N). For variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171). The LED indicator signals the state of the output relay: a yellow LED lights up when contact 11-14 is closed, i.e. the output is activated. The hysteresis is approximately 4 %, meaning that the return to normal state only occurs when the voltage exceeds the pickup value, to avoid chatter. The frequency range is between 45 and 65 Hz, enabling use in various networks.

Compatibility and accessories
The device is designed for mounting in installation and industrial distributors according to DIN 43 880. Type I (IK 9171) has a depth of 59 mm and terminals located at the bottom. The width is 17.5 mm. It can operate without auxiliary voltage, simplifying installation. The device variant includes a neutral conductor connection and complies with standard IEC/EN 60255-1. UKCA approval is available, enabling use in the corresponding market area.

Mounting and installation
Mounting is carried out in standard installation distributors or enclosures with mounting plate. The terminals are located at the bottom, enabling easy wiring. The installation width of 17.5 mm allows compact placement in distributors. The devices are designed for an operating voltage of 3/N AC 400/230 V, with a maximum nominal voltage of 3/N AC 500/290 V. The overload capacity is 1.15 times nominal voltage continuously. The nominal power consumption values are approximately 6 VA (IK/SK 9171.11) or 8 VA (IL/SL 9171.12).

Advantages in operation
The relay provides reliable and low-maintenance monitoring of three-phase networks. The adjustable parameters such as pickup value and time delay allow individual adaptation to specific requirements. The LED indicator facilitates diagnosis of the operating state. The no-current principle ensures that the device is not activated in the event of a fault, increasing safety. Compatibility with various network voltages and easy mounting in standard distributors make the device a flexible solution for industrial and installation applications.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 500 / 290 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9171
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3/N AC 400 / 230 V
Response value0,55 - 1,05 Un
Time delay0,1 - 20 min
Approvals and MarkingsUKCA
VariantWith N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0052890, EAN: 4030641528904

Questions & answers

What is the delivery time of Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M ?

The article Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052890 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M always at the best possible price. We can give you a discount of 2% on Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0052890 IK9171.11/030 3AC400/230V,55-1.05UN undervoltage relay Tv=0.1-20M we can offer you a price of 116,09 EUR per piece. The more you buy, the cheaper the article will be.
