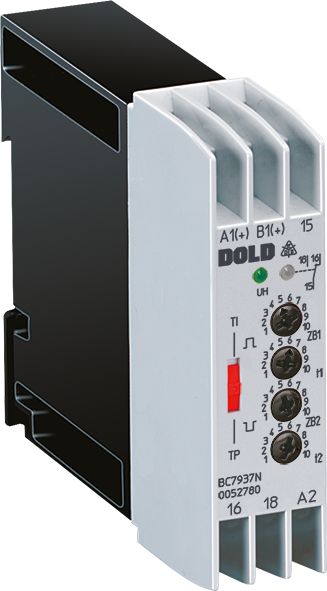

Dold 0052780 BC7937N.81 AC/DC24-240V 0.05S-300H timing relay

Your rating:
Average rating
product review for Dold 0052780 BC7937N.81 AC/DC24-240V 0.05S-300H timing relay
( 4.5 / 5 ) 11 ratings
Dold 0052780
This image may differ from the desired article.
155,38 EUR
( 184,90 EUR incl. VAT )
≈ £130.05  |  ≈ $170.76
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052780 BC7937N.81 AC/DC24-240V 0.05S-300H timing relay
Datasheet:file_download Download
Lieske Part No.:730640
Mfg Part No: 0052780
UPC/EAN: 4030641527808
Weight:0.13 kg
Type:BC7937N.81 AC/DC24-240V 0,05S-300H
Graduated prices net
From piecesPrice per pieces
5149,55 EUR
10143,73 EUR
15137,90 EUR
20132,07 EUR

Product information for Dold 0052780:

The Dold BC7937N.81 is an industrial time relay of the type timer, designed for use in enclosures. It features a contact configuration with one delayed changeover contact and is designed for operating voltages in the range AC/DC 24 to 240 V, with support also for an operating voltage of DC 12 V. The timing function allows for stepless adjustment across 10 time ranges, ranging from 0.05 seconds to 300 hours. The pulse and pause times can be adjusted independently, enabling flexible adaptation to various applications. The start of the timing sequence can be selected via a slide switch between pulse and pause time, allowing the device to start with either a pulse or a pause depending on requirements.

Applications
This device is suitable for time-controlled processes in industrial automation, for example for controlling drives, lighting systems, pumps, or in safety systems. The ability to independently regulate pulse and pause times makes it particularly useful for applications requiring an asymmetric flashing function, such as in warning systems or signaling installations. The operating voltage ranges AC/DC 24–240 V and DC 12 V allow for flexible integration into existing electrical systems.

Functions and Equipment in Detail
The timer provides an LED indicator for power supply (green) and a yellow LED indicating the contact position. When the set time elapses, the yellow LED flashes, visually signaling the relay’s status. A control input (B1+) allows interruption of the timing sequence, enabling external control of the timing process. When switching between time ranges, the device must be reset by turning off the operating voltage to ensure correct functionality.

Technology Explained Simply
The timing function is based on an asymmetric flashing relay according to IEC/EN 61812-1, designed for precise and reliable time control. The reset time is a maximum of 50 ms, enabling a quick response after reset. The repeatability is ≤ 2 %, and the voltage influence is ≤ 1 %, ensuring stable operation even under voltage fluctuations. The temperature dependence is ≤ 0.05 %/K, which is very low, ensuring reliable operation even with temperature variations during use. The contact configuration with one delayed changeover contact enables flexible switching functions, with a thermal current Ith of 4 A.

Compatibility and Accessories
The device is designed for use in enclosures and has a width of 22.5 mm, enabling compact mounting in standard control panels. The operating voltage AC/DC 24–240 V and DC 12 V allows broad compatibility with various control and power supply systems. The switching capacities are specified according to AC 15 (3 A / AC 230 V) and DC 13 (2 A / DC 24 V), ensuring suitability for typical industrial applications. The maximum fuse rating is 4 A gG / gL, ensuring short-circuit resistance.

Mounting and Installation
Mounting is done in an enclosure using the designated connection terminals. The terminal designations are A1/A2 for operating voltage, 15/16/18 for the changeover contact, and B1(+) for the control input. The width of 22.5 mm allows compact placement in standard control panels. Adjustment of the time ranges is done via rotary knobs ZB1 (pulse time) and ZB2 (pause time), with stepless variable settings. The function of the slide switch for selecting start behavior (pulse or pause) is directly integrated into the device.

Advantages in Operation
The device is characterised by high reliability and precision, with a mechanical life of 10⁸ switching operations and an electrical life of typically 150,000 switching operations under AC 15 (1 A, AC 230 V) or 100,000 switching operations under DC 13 (1 A, DC 24 V). The LED indicators provide clear visual feedback on the operating status. The operating temperature range of 0 to +60 °C and storage temperature of -40 to +60 °C allow use in a wide range of environments. The operating altitude is limited to ≤ 2000 m, which is sufficient for industrial use. The rated impulse voltage is 4 kV at pollution degree 2, ensuring high electrical safety. The rated duty is continuous operation, enabling uninterrupted use without restrictions.

Approvals and Markings
The device carries the UKCA mark, confirming compliance with applicable European safety and quality requirements. The standard IEC/EN 61812-1 for asymmetric flashing relays is fulfilled, ensuring reliability and standardisation of the device. Compliance with the standard IEC/EN 60947-5-1 for switching devices ensures electrical safety and switching capacities. The specifications for creepage and clearance distances, pollution degree (2), and overvoltage category III ensure electrical insulation and safety during operation.

Functions and Equipment in Detail
The LED indicators (green for power supply, yellow for contact position and flashing function when timing elapses) enable quick visual inspection of the operating status. The control input B1(+) allows external interruption of the timing sequence, which is useful for complex control logic. The stepless adjustment of pulse and pause time via rotary knobs ZB1 and ZB2 offers high flexibility. The reset time of ≤ 50 ms ensures a quick response after reset. The repeatability of ≤ 2 % and low voltage influence of ≤ 1 % ensure stable operation even under fluctuating operating conditions.

Compatibility and Accessories
The device is designed for use in enclosures and has a width of 22.5 mm, enabling compact mounting in standard control panels. The operating voltage AC/DC 24–240 V and DC 12 V allows broad compatibility with various control and power supply systems. The switching capacities are specified according to AC 15 (3 A / AC 230 V) and DC 13 (2 A / DC 24 V), ensuring suitability for typical industrial applications. The maximum fuse rating is 4 A gG / gL, ensuring short-circuit resistance.

Mounting and Installation
Mounting is done in an enclosure using the designated connection terminals. The terminal designations are A1/A2 for operating voltage, 15/16/18 for the changeover contact, and B1(+) for the control input. The width of 22.5 mm allows compact placement in standard control panels. Adjustment of the time ranges is done via rotary knobs ZB1 (pulse time) and ZB2 (pause time), with stepless variable settings. The function of the slide switch for selecting start behavior (pulse or pause) is directly integrated into the device.

Advantages in Operation
The device is characterised by high reliability and precision, with a mechanical life of 10⁸ switching operations and an electrical life of typically 150,000 switching operations under AC 15 (1 A, AC 230 V) or 100,000 switching operations under DC 13 (1 A, DC 24 V). The LED indicators provide clear visual feedback on the operating status. The operating temperature range of 0 to +60 °C and storage temperature of -40 to +60 °C allow use in a wide range of environments. The operating altitude is limited to ≤ 2000 m, which is sufficient for industrial use. The rated impulse voltage is 4 kV at pollution degree 2, ensuring high electrical safety. The rated duty is continuous operation, enabling uninterrupted use without restrictions.

Approvals and Markings
The device carries the UKCA mark, confirming compliance with applicable European safety and quality requirements. The standard IEC/EN 61812-1 for asymmetric flashing relays is fulfilled, ensuring reliability and standardisation of the device. Compliance with the standard IEC/EN 60947-5-1 for switching devices ensures electrical safety and switching capacities. The specifications for creepage and clearance distances, pollution degree (2), and overvoltage category III ensure electrical insulation and safety during operation.

Technical data
Enclosure designSwitch cabinet
Time function(s)Cyclic timer
Width22,5 mm
TypeBC 7937N
Variant
Contact equipping1 changeover contact delayed
Nominal voltageAC/DC 24 - 240 V
Time range0,05 s - 300 h
Approvals and MarkingsUKCA
VariantSelectable start with impulse or break


Product data sheet
Datasheet for Dold 0052780, EAN: 4030641527808
