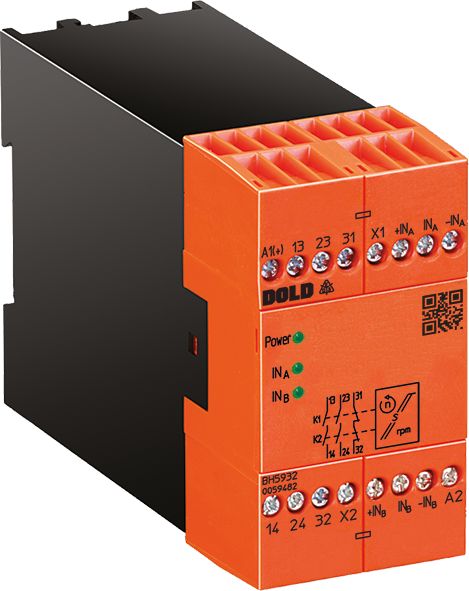

Dold 0052770 BH5932.22/010/61 AC/DC24V 15IPM speed/stillness monitor
|
402,07 EUR |
|||||||||||
|
( 478,46 EUR incl. VAT ) ≈ £336.53 | ≈ $441.87 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312726 | ||||||||||
| Mfg Part No: | 0052770 | ||||||||||
| UPC/EAN: | 4030641527709 | ||||||||||
| Weight: | 0.438 kg | ||||||||||
| Type: | BH5932.22/010/61 AC/DC24V 15IPM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0052770:
Applications
This speed monitor is specifically intended for monitoring rotational and linear movements in machines and plants. It is used in the manufacturing industry, machine building, and in plants where moving parts may pose a danger if moving uncontrolled. The application typically involves use in conjunction with inductive proximity switches, which act as initiators and detect the machine's movement.
Functions and Features in Detail
The device features a fixed trigger value of 15 IPM (impulses per minute), defining the minimum speed at which the device is considered safe. If this value is undershot, the output is switched via forced-guided contacts. The contact configuration includes two normally closed contacts and one normally open contact, ensuring redundant and safe signal transmission. The output contacts are forced-guided, meaning all contacts are mechanically linked and switch simultaneously to prevent false alarms or unintended states. The inputs are designed for pnp proximity switches, with the variant without initiator presence detection selected. This means the presence of the initiator is not checked, and signals are processed directly.
Technology Explained Simply
The speed monitor operates at a nominal voltage of AC/DC 24 V, making it suitable for use in standard industrial control systems. The maximum thermal current rating is 4 A, defining the contact load capacity for connected loads. The width of 45 mm allows mounting in standard plug-in strip control cabinets. The safety functions are certified according to standards EN ISO 13849-1 and IEC/EN 62061: the device achieves Category 3 and Performance Level PL e according to EN ISO 13849-1, as well as Safety Integrity Level SIL 3 according to IEC/EN 62061. These certifications guarantee that the device is suitable for safety-critical applications and meets required failure rates and availability. The approvals UL-listed C/US, TÜV, and CCC confirm compliance with international safety standards.
Compatibility and Accessories
The speed monitor is designed for use with inductive proximity switches of types NA 5001, NA 5002, NA 5005, and NA 5010, which serve as initiators. Connection options are detailed in the data sheet, with variants NA 5002.01.34 and NA 5005.01.34 only permitted for devices without initiator presence detection. The terminal connections allow connection of wires up to 2.5 mm² cross-section, with the use of ferrules and plastic sleeves according to DIN 46 228-1/-2/-3/-4 recommended. The terminal assignment is specified for device type BH 5932, with brown, blue, and black used for power supply and signals.
Mounting and Installation
Mounting is done in standard plug-in strip control cabinets with a width of 45 mm. The terminal connections are designed for wire connections, with maximum cross-sections and recommended connection types described in the data sheet. Electrical connections are made via the designated terminals, with color coding (brown for positive, blue for negative, black for contact) supporting correct wiring. The devices are designed for industrial environments and meet protection class IP67, meaning they are dust- and water-tight, enabling use in outdoor or damp environments.
Operational Advantages
The speed monitor provides reliable and safe monitoring of machine movements. The forced-guided contacts and certification to SIL 3 and PL e ensure high safety integrity. The use of inductive proximity switches as initiators enables contactless and robust movement detection. The fixed trigger value of 15 IPM ensures a clear and reproducible response. Compatibility with common proximity switches and the standard nominal voltage of 24 V simplifies integration into existing control systems. The IP67 protection class makes the device suitable for demanding environments.
| Technical data | |
| 1- / 2-channel | 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 3/e |
| Classification | For initiators |
| Forcibly guided output contacts max. | 1 NC contact, 2 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 4 A |
| Width | 45 mm |
| Type | BH 5932 |
| Variant | |
| Contact equipping | 2 NO contacts, 1 NC contact |
| Nominal voltage | AC/DC 24 V |
| Response value | 15 IPM |
| Approvals and Markings | UL-listed C/US, TÜV, CCC |
| Variant | Without sensor detection. PNP-input. Fixed setting value |
