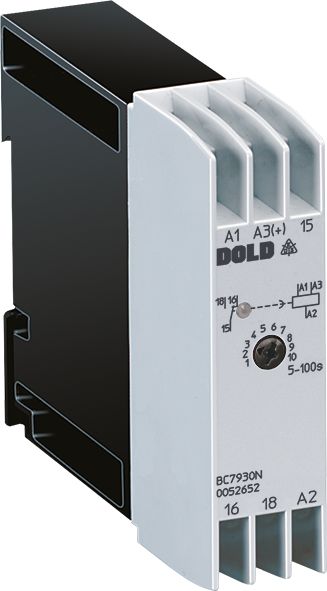

Dold 0052652 BC7930N.81 AC/DC24V+AC230V 5-100S time relay delayed operation
|
64,08 EUR |
|||||||||||
|
( 76,26 EUR incl. VAT ) ≈ £53.63 | ≈ $70.42 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312961 | ||||||||||
| Mfg Part No: | 0052652 | ||||||||||
| UPC/EAN: | 4030641526528 | ||||||||||
| Weight: | 0.145 kg | ||||||||||
| Type: | BC7930N.81 AC/DC24V+AC230V 5-100S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0052652:
Applications
This time relay is used in industrial control systems where a time-delayed switching function is required, for example, to delay motor start-up, to avoid current surges, or to synchronize process steps. The dual-voltage design allows power supply from two different voltage sources, increasing flexibility when integrating into existing installations. The operating temperature ranges from -20 °C to +60 °C, enabling use in various environments, including industrial production halls.
Functions and Equipment in Detail
The device operates in accordance with standard EN 61812-1 and offers a repeatability of ≤ 0.5 % + 10 ms, ensuring high precision in repeated switching operations. The time delay is continuously adjustable in a 1:20 ratio, allowing fine adjustment to specific requirements. An LED indicator signals the state of the output relay – it lights up when contact 15-18 is closed, i.e., the output is activated. The contact configuration consists of a changeover contact with a contact material made of AgNi, designed for high switching capacity and long service life.
Technology Explained Simply
The operating voltage is supplied via terminals A1/A2 (AC 230 V) and A3/A2 (AC/DC 24 V). The input voltage must be within 0.8 to 1.1 times the rated voltage (for AC) or 0.9 to 1.25 times (for DC) to ensure reliable operation. The drop-out voltage is 15 % of the rated voltage, meaning the relay remains stable even with slight voltage reduction. The switching capacity is 3 A / AC 230 V for closing contacts and 1 A / AC 230 V for opening contacts (AC 15). The electrical life is 1.5 × 10⁵ switching operations at 1 A and AC 230 V, while the mechanical life is 10⁸ switching operations. The maximum permissible switching frequency is 36,000 switching operations per hour.
Compatibility and Accessories
The relay is designed for use in enclosures and is mounted on a DIN rail. The terminals are designed as box terminals and allow connection of conductors with a cross-section of 1 x 4 mm² (solid) or 1 x 2.5 mm² (stranded wire with ferrule) as well as 2 x 1.5 mm² (stranded wire with ferrule and plastic sleeve DIN 46228-1/-2/-3/-4) or 2 x 2.5 mm² (stranded wire with ferrule DIN 46228-1/-2/-3). The stripping length for conductors is 10 mm. The tightening torque for the terminal screws is 0.8 Nm. The housing protection rating is IP 40, and the terminals have a protection rating of IP 40.
Mounting and Installation
Mounting is done on a DIN rail in accordance with IEC/EN 60715. The terminals are designed for connecting stranded and solid conductors, with the specified cross-sections and a stripping length of 10 mm to be observed. The tightening torques for the terminal screws are 0.8 Nm. The maximum operating altitude is 2000 m above sea level. The storage temperature ranges from -25 °C to +70 °C.
Advantages in Operation
The relay is characterized by high repeatability and stable performance under varying operating conditions. The dual-voltage design increases flexibility when integrating into existing installations. The LED indicator allows for quick visual inspection of the operating status. The compact design with a mounting width of 22.5 mm enables dense installation in enclosures. The mechanical life of 10⁸ switching operations and the electrical life of 1.5 × 10⁵ switching operations at 1 A and AC 230 V ensure long service life. The EMC testing in accordance with IEC/EN 61000-4-2 to -4-5 ensures reliable operation in electromagnetically noisy environments.
| Technical data | |
| Enclosure design | Switch cabinet |
| Output contacts | 1 C/O contact |
| Time function(s) | On-delay |
| Width | 22,5 mm |
| Type | BC 7930N |
| Variant | |
| Contact equipping | 1 changeover contact |
| Nominal voltage | AC/DC 24 V + AC 230 V |
| Time range | 5 - 100 s |
