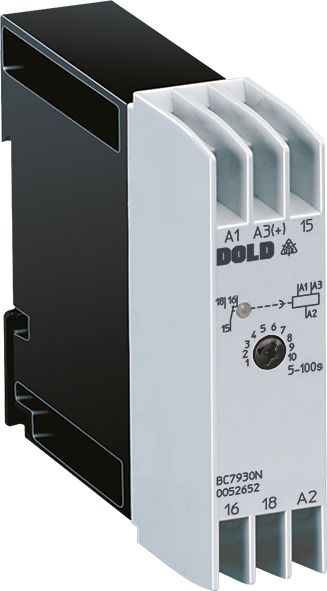

Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation

Your rating:
Average rating
product review for Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation
( 4.7 / 5 ) 10 ratings
Dold 0052650
This image may differ from the desired article.
64,08 EUR
( 76,26 EUR incl. VAT )
≈ £53.63  |  ≈ $70.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation
Datasheet:file_download Download
Lieske Part No.:1312946
Mfg Part No: 0052650
UPC/EAN: 4030641526504
Weight:0.145 kg
Type:BC7930N.81 AC/DC24V+AC230V 3-60M
Graduated prices net
From piecesPrice per pieces
663,12 EUR
1262,16 EUR
2461,20 EUR
3660,24 EUR

Product information for Dold 0052650:

The Dold time relay BC7930N.81 is a delayed-on time relay for industrial control applications, designed for use in enclosures. It features a dual-voltage configuration with rated voltages AC/DC 24 V and AC 230 V, enabling flexible use in various networks. The time delay is continuously adjustable in the range of 3 to 60 minutes, making it suitable for applications requiring precise time-controlled activation of switching operations. The device is designed as a delayed-on time relay, meaning the output contact switches only after the set delay time has elapsed, once the operating voltage is applied.

Applications
This relay is suitable for time-controlled processes in industrial automation, such as controlling pumps, motors, lighting systems, or safety functions. The repeat accuracy of ≤ 0.5 % + 10 ms ensures high precision in repeated switching operations. The operating temperature range of -20 °C to +60 °C allows use in various environments, including industrial production facilities and outdoor areas, provided environmental conditions remain within specifications.

Functions and Equipment in Detail
The device features a changeover contact as the output contact, designed for switching operations with one normally closed and one normally open contact. The contact materials consist of AgNi, ensuring high switching durability and corrosion resistance. The LED indicator signals the state of the output relay – it lights up when contact 15-18 is closed, i.e., when the output is activated. The connection terminals are box terminals, allowing connection of stranded wires with cross-sections up to 2.5 mm² with sleeve and plastic collar according to DIN 46228-1/-2/-3/-4, or 2 x 1.5 mm² stranded wire with sleeve. The wire stripping length is 10 mm, and the tightening torque for the terminal screws is 0.8 Nm.

Technology Explained Simply
The time delay is implemented via a continuously adjustable timing circuit scaled in a 1:20 ratio. The reset time is ≤ 100 ms, meaning the relay is quickly ready for the next switching operation after de-energizing. Voltage influence values are ≤ 1 %, and temperature influence is ≤ 0.25 % per Kelvin, ensuring high stability under varying operating conditions. The operating voltage can range from 0.8 to 1.1 times the rated voltage (AC) or 0.9 to 1.25 times the rated voltage (DC), ensuring robust performance even with voltage fluctuations.

Compatibility and Accessories
The relay is designed for use in enclosures and is mounted on a DIN rail according to IEC/EN 60715. It has a width of 22.5 mm, allowing space-saving integration into standard enclosure modules. The switching capacity is up to 3 A at AC 230 V for the normally closed contact and 1 A for the normally open contact, according to AC 15. The mechanical life is 10⁸ switching operations, and the electrical life is 1.5 x 10⁵ switching operations at 1 A and AC 230 V. The maximum permissible switching frequency is 36,000 switching operations per hour.

Mounting and Installation
Mounting is done via a DIN rail (DIN rail) inside the enclosure. The terminals are equipped with plus-minus terminal screws M 3.5, to be tightened with a torque of 0.8 Nm. Wire connections are made via box terminals, with maximum cross-sections and connection types to be observed according to the data sheet. The switching arrangement is shown in the manufacturer’s circuit diagram, where terminals A1/A2 represent the operating voltage and terminals 15/16/18 represent the changeover contact.

Advantages in Operation
The relay offers high reliability due to its robust construction from thermoplastic with V0 rating according to UL 94. The enclosure protection rating is IP 40, and the terminals are IP 40, protecting against contact and dust. EMC tests according to IEC/EN 61000-4-2 to -4-5 ensure good immunity to electromagnetic interference. The rated impulse voltage is 4 kV, and insulation testing is performed at 2.5 kV for 1 minute. The operating altitude is limited to ≤ 2000 m, and the relative humidity may reach up to 95 % at 40 °C. The rated consumption values are 4 VA (AC) and 0.4 W (DC).

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)On-delay
Width22,5 mm
TypeBC 7930N
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 24 V + AC 230 V
Time range3 - 60 min


Product data sheet
Datasheet for Dold 0052650, EAN: 4030641526504

Questions & answers

What is the delivery time of Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation ?

The article Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052650 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation always at the best possible price. We can give you a discount of 2% on Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052650 BC7930N.81 AC/DC24V+AC230V 3-60M time relay delayed operation we can offer you a price of 63,12 EUR per piece. The more you buy, the cheaper the article will be.
