Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup

Your rating:
Average rating
product review for Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup
( 4.5 / 5 ) 46 ratings

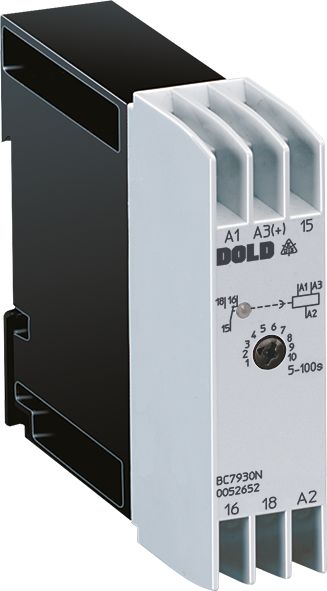

Dold 0052646
This image may differ from the desired article.
64,08 EUR
( 76,26 EUR incl. VAT )
≈ £53.63  |  ≈ $70.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup
Datasheet:file_download Download
Lieske Part No.:484330
Mfg Part No: 0052646
UPC/EAN: 4030641526467
Weight:0.145 kg
Type:BC7930N.81AC/DC24V+AC230V0,5-10S
Graduated prices net
From piecesPrice per pieces
661,68 EUR
1259,27 EUR
2456,87 EUR
3654,47 EUR

Product information for Dold 0052646:

The Dold time relay BC7930N.81AC/DC24V+AC230V0,5-10S is a delayed-on industrial time relay for time-controlled switching tasks in enclosures. It features a dual-voltage design with rated voltage AC/DC 24 V and additionally AC 230 V, enabling flexible use in various networks. The time delay ranges from 0.5 to 10 seconds, suitable for applications such as delay controls for motors, lighting systems, or safety functions. The device complies with standard EN 61812-1 and is designed for continuous operation.

Applications
This time relay is designed for industrial applications requiring precise time-controlled switching functions. It is suitable, for example, for controlling pumps, fans, heating systems, or as a safety function in machine controls. The delayed-on function means that the output is activated only after the set delay time has elapsed, once the input signal is active. This enables a controlled and delayed response to operating conditions.

Functions and Equipment in Detail
The device features a changeover contact as output contact, rated for switching operations with a nominal operating voltage of AC 250 V. The contact configuration consists of a changeover contact made of AgNi (silver-nickel) contact material, ensuring high switching capacity and long service life. The electrical life is at least 150,000 switching cycles at 1 A and AC 230 V, while the mechanical life is 100 million switching cycles. The repeatability is ≤ 0.5 % + 10 ms, enabling reliable and reproducible time control.

Technology Explained Simply
The time delay is continuously adjustable, with the setting ratio being 1:20. The reset time is ≤ 100 ms, so the device is quickly ready for operation after switching off. The operating voltage can be supplied via terminals A1/A2 (AC 230 V) and A3/A2 (AC/DC 24 V). The LED indicator signals the state of the output relay – it lights up when contact 15-18 is closed, i.e., when the output is activated. The connection terminals are designed as box terminals, secured with plus-minus screws M 3.5. The permissible conductor cross-sections are 1 x 4 mm² solid or 1 x 2.5 mm² stranded wire with ferrule and plastic collar, as well as 2 x 1.5 mm² stranded wire with ferrule DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm² stranded wire with ferrule DIN 46228-1/-2/-3. The stripping length for conductors is 10 mm.

Compatibility and Accessories
The time relay is designed for mounting on a DIN rail according to IEC/EN 60715, enabling easy installation in enclosures. The width is 22.5 mm, making it compact and space-saving. The enclosure protection rating is IP 40, and the terminals are IP 40, protecting against contact and dust. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature from -25 °C to +70 °C. The relative humidity is up to 95 % at 40 °C. The operating altitude is limited to ≤ 2000 m.

Mounting and Installation
Mounting is done via quick fastening on a DIN rail. The terminals must be secured with a tightening torque of 0.8 Nm. Conductor connections are made via the box terminals, ensuring compliance with the specified cross-sections and ferrule types. The LED indicator enables visual monitoring of the operating status.

Advantages in Operation
The time relay offers high accuracy and reliability due to its low repeatability error and long contact life. The dual-voltage design increases installation flexibility. The LED indicator simplifies diagnosis and maintenance. The compact design with a width of 22.5 mm allows dense mounting in enclosures. Compliance with standard EN 61812-1 ensures safety and functionality in industrial use.

Technical data
Enclosure designSwitch cabinet
Output contacts1 C/O contact
Time function(s)On-delay
Width22,5 mm
TypeBC 7930N
Variant
Contact equipping1 changeover contact
Nominal voltageAC/DC 24 V + AC 230 V
Time range0,5 - 10 s


Product data sheet
Datasheet for Dold 0052646, EAN: 4030641526467

Questions & answers

What is the delivery time of Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup ?

The article Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052646 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup always at the best possible price. We can give you a discount of 2% on Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052646 BC7930N.81 AC/DC24V+AC230V 0.5-10S time relay delayed pickup we can offer you a price of 61,68 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
