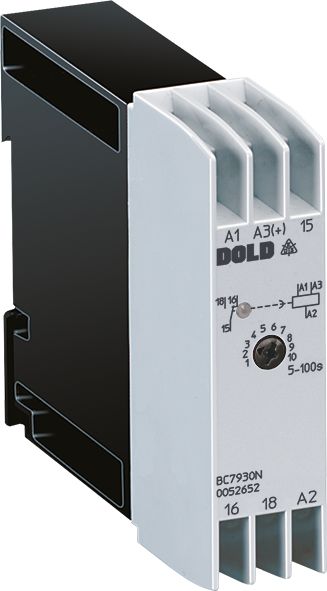

Dold 0052644 BC7930N.81 AC/DC24V+AC230V 0.5-10H time relay delayed operation
|
64,08 EUR |
|||||||||||
|
( 76,26 EUR incl. VAT ) ≈ £53.63 | ≈ $70.42 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312990 | ||||||||||
| Mfg Part No: | 0052644 | ||||||||||
| UPC/EAN: | 4030641526443 | ||||||||||
| Weight: | 0.145 kg | ||||||||||
| Type: | BC7930N.81 AC/DC24V+AC230V 0,5-10H | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0052644:
Applications
This time relay is suitable for time-dependent controls in industrial environments, for example, to delay start-up or shut-down processes in drive technology, lighting systems, or machine controls. The on-delay function ensures that the output is activated only after the set delay time has elapsed once the operating voltage is applied. This enables controlled and step-by-step commissioning of components.
Functions and Features in Detail
The device includes an LED indicator that visually signals the state of the output relay – the LED lights up when contact 15-18 is closed. The indicator facilitates quick diagnosis and status monitoring during operation. The time delay is adjusted continuously via a rotary control, with a ratio of 1:20 between setting and actual delay time. The reset time is ≤ 100 ms, enabling rapid reset after switching off the operating voltage.
Technology Explained Simply
The operating voltage is connected at terminals A1/A2 (AC 230 V) and A3/A2 (AC/DC 24 V). The time delay is implemented by an internal electronic timer that precisely maintains the delay time. The output contacts (15-16, 15-18) switch after the set time has elapsed. The contact position is indicated by the LED, which lights up when the output is active. The switching capacity is rated for AC 250 V, with a thermal current Ith of 4 A. The electrical life is 1.5 × 10⁵ switching operations at 1 A/AC 230 V, and the mechanical life is 10⁸ switching operations.
Compatibility and Accessories
The relay is designed for use in enclosures and is mounted on a DIN rail (IEC/EN 60715). It is equipped with cage clamps suitable for conductor cross-sections of 1 x 4 mm² (solid) or 1 x 2.5 mm² (stranded wire with ferrule) as well as 2 x 1.5 mm² (stranded wire with ferrule and plastic collar DIN 46228-1/-2/-3/-4) or 2 x 2.5 mm² (stranded wire with ferrule DIN 46228-1/-2/-3). The wire stripping length is 10 mm, and the tightening torque for the clamp screws M 3.5 is 0.8 Nm.
Mounting and Installation
Mounting is done via quick-fastening on a DIN rail inside the enclosure. The terminals are designed for connection with stranded or solid conductors, using the specified cross-sections and ferrules according to DIN 46228-1/-2/-3/-4. The connection terminals are clearly labeled (A1, A3(+), A2, 15, 16, 18), enabling unambiguous assignment. The width is 22.5 mm, and the overall dimensions are 22.5 x 84 x 97 mm.
Operational Advantages
The time relay offers high precision in time delay, a robust design for industrial use, and clear status indication via the LED. The dual-voltage configuration enables flexible integration into existing systems. The switching capacity and life are designed for industrial applications, meeting EMC requirements (e.g., static discharge, HF radiation, fast transients). The operating temperature range is -20 °C to +60 °C, and the storage temperature range is -25 °C to +70 °C. The relative humidity is up to 95 % at 40 °C, and the operating altitude is limited to ≤ 2000 m. The enclosure protection rating is IP 40, and the terminals are rated IP 40.
Approvals and Markings
The device complies with standards EN 61812-1, IEC/EN 60529 (protection rating), IEC/EN 60068-2-6 (vibration resistance), IEC/EN 60068-1 (climate resistance), EN 50005 (terminal marking), and IEC/EN 60947-5-1 (switching capacity). EMC requirements according to IEC/EN 61000-4-2, -4-3, -4-4, and -4-5 are fulfilled. The rated impulse voltage is 4 kV, and the pollution degree is 2. The overvoltage category is III. Insulation testing is performed at 2.5 kV/1 min. The creepage and clearance distances correspond to a rated impulse voltage of 4 kV. The permissible switching frequency is 36,000 switching operations per hour. The maximum fuse rating is 4 A gG/gL.
Enclosure and Mounting
The enclosure is made of thermoplastic with V0 flammability rating according to UL Subject 94. Mounting is via a DIN rail (IEC/EN 60715). The width is 22.5 mm, and the overall dimensions are 22.5 x 84 x 97 mm. The net weight is 80 g. The enclosure protection rating is IP 40, and the terminals are rated IP 40. Vibration resistance is 0.35 mm amplitude at 10–55 Hz frequency. Climate resistance corresponds to 20/060/04 according to IEC/EN 60068-1.
Operating Environments
The device is designed for operation at temperatures from -20 °C to +60 °C. The storage temperature range is -25 °C to +70 °C. The relative humidity is up to 95 % at 40 °C. The operating altitude is limited to ≤ 2000 m. The operating mode is continuous operation.
| Technical data | |
| Enclosure design | Switch cabinet |
| Output contacts | 1 C/O contact |
| Time function(s) | On-delay |
| Width | 22,5 mm |
| Type | BC 7930N |
| Variant | |
| Contact equipping | 1 changeover contact |
| Nominal voltage | AC/DC 24 V + AC 230 V |
| Time range | 0,5 - 10 h |
