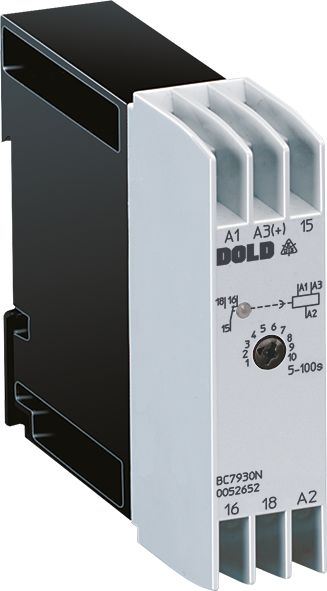

Dold 0052639 BC7930N.81 AC/DC24V+AC230V 0.15-3H time relay delayed operation
|
64,08 EUR |
|||||||||||
|
( 76,26 EUR incl. VAT ) ≈ £53.63 | ≈ $70.42 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312948 | ||||||||||
| Mfg Part No: | 0052639 | ||||||||||
| UPC/EAN: | 4030641526399 | ||||||||||
| Weight: | 0.145 kg | ||||||||||
| Type: | BC7930N.81 AC/DC24V+AC230V 0,15-3H | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0052639:
Applications
This time relay is intended for time-dependent controls in industry, for example, to delay start-up or shut-down operations for motors, pumps, or lighting systems. The on-delay function means that the output is activated only after the set delay time has elapsed, once the operating voltage is applied. This enables controlled and step-by-step commissioning of plant components. Use in enclosures is supported by its design and mounting on a DIN rail (IEC/EN 60715).
Functions and Equipment in Detail
The device features a changeover contact as output contact, designed for switching operations with a rated operating voltage of AC 250 V. The contact material is AgNi, ensuring high switching capacity and long service life. The electrical life is at least 150,000 switching cycles at 1 A and AC 230 V, while the mechanical life is specified as 100 million switching cycles. The LED indicator signals the state of the output relay – it lights up when contacts 15–18 are closed, i.e., the output is activated. The terminal clamps allow connection of stranded wires with cross-sections up to 2.5 mm², and cables with sleeves and plastic collars according to DIN 46228-1/-2/-3/-4 can also be used.
Technology Explained Simply
The time delay is implemented via a continuously adjustable timing circuit scaled in a 1:20 ratio. The reset time is ≤ 100 ms, meaning the device is quickly ready for operation again after switching off. Voltage influence values are ≤ 1 %, and temperature influence values are ≤ 0.25 % per Kelvin, ensuring stable function even under varying environmental conditions. The operating voltage can range from 0.8 to 1.1 times the rated voltage (AC) or 0.9 to 1.25 times (DC), providing high tolerance to voltage fluctuations. The drop-out voltage is 15 % of the rated voltage, ensuring secure deactivation of the relay.
Compatibility and Accessories
The time relay is designed for use in enclosures and is mounted on a DIN rail. The width is 22.5 mm, allowing space-saving integration into standard enclosure modules. Terminal marking follows EN 50005, with operating voltage connected to terminals A1/A2 and A3/A2. The terminal clamps are box-type clamps secured with plus-minus screws M 3.5. The permissible switching frequency is 36,000 switching cycles per hour, suitable for high operational loads.
Mounting and Installation
Mounting is on a DIN rail according to IEC/EN 60715. The connection cables must have a stripping length of 10 mm. The tightening torques for the terminal screws are 0.8 Nm. The device dimensions are 22.5 mm (width) × 84 mm (height) × 97 mm (depth). The enclosure protection rating is IP 40, and the terminals are IP 40, providing protection against touch and dust, but not against splashing water. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +70 °C.
Operational Advantages
The time relay offers high precision and reliability in time control. The dual-voltage design enables flexible integration into existing systems. The LED indicator simplifies diagnosis and maintenance, as the output state is visually recognizable. The long service life and high switching durability reduce maintenance and replacement intervals. Compliance with standard EN 61812-1 and EMC tests (e.g., ESD, HF radiation, fast transients) guarantee safe and interference-free operation in industrial environments. The operating altitude is limited to ≤ 2000 m, which is sufficient for industrial use. The relative humidity may reach up to 95 % at 40 °C.
Protection Rating and Environmental Conditions
The enclosure is protected to IP 40, and the terminals to IP 20, providing protection against touch and dust, but not against water. The operating temperature range is from -20 °C to +60 °C, and the storage temperature range is from -25 °C to +70 °C. The relative humidity may reach up to 95 % at 40 °C. The operating altitude is limited to ≤ 2000 m. The climatic resistance is defined as 20/060/04 according to IEC/EN 60068-1, and the vibration resistance is 0.35 mm amplitude at 10–55 Hz.
EMC and Safety Requirements
The device meets EMC requirements according to IEC/EN 61000-4-2 (ESD), -4-3 (HF radiation), -4-4 (fast transients), and -4-5 (overvoltages). Insulation testing is performed at 2.5 kV/1 min. The overvoltage category is III, and the pollution degree is 2. The creepage and clearance distances correspond to a rated impulse voltage of 4 kV. The maximum fuse rating is 4 A gG/gL.
General Data
The device is designed for continuous operation. The net weight is 80 g. The device dimensions are 22.5 mm (width) × 84 mm (height) × 97 mm (depth). The terminal clamps are designed for conductor cross-sections up to 2.5 mm², and stranded wires with sleeves according to DIN 46228-1/-2/-3/-4 can also be used. The tightening torques for the terminal screws are 0.8 Nm. Mounting is on a DIN rail according to IEC/EN 60715.
| Technical data | |
| Enclosure design | Switch cabinet |
| Output contacts | 1 C/O contact |
| Time function(s) | On-delay |
| Width | 22,5 mm |
| Type | BC 7930N |
| Variant | |
| Contact equipping | 1 changeover contact |
| Nominal voltage | AC/DC 24 V + AC 230 V |
| Time range | 0,15 - 3 h |
Questions & answers
What is the delivery time of Dold 0052639 BC7930N.81 AC/DC24V+AC230V 0.15-3H time relay delayed operation ?
The article Dold 0052639 BC7930N.81 AC/DC24V+AC230V 0.15-3H time relay delayed operation is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052639 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Dold 0052639 BC7930N.81 AC/DC24V+AC230V 0.15-3H time relay delayed operation always at the best possible price. We can give you a discount of 2% on Dold 0052639 BC7930N.81 AC/DC24V+AC230V 0.15-3H time relay delayed operation if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Dold 0052639 BC7930N.81 AC/DC24V+AC230V 0.15-3H time relay delayed operation we can offer you a price of 61,68 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
