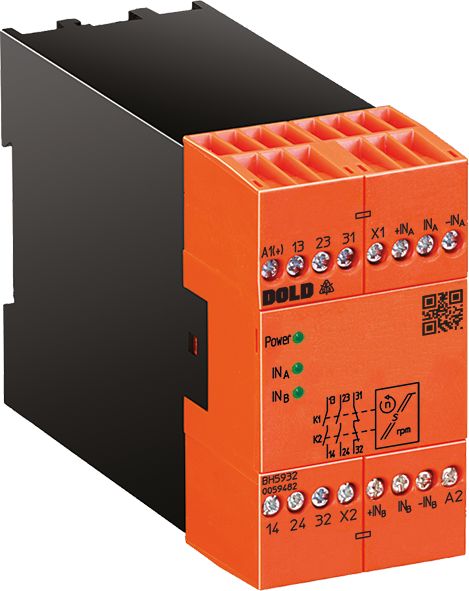

Dold 0052515 BH5932.22/001/61 ACDC24V 7-21000IPM speed/stall monitor
|
511,59 EUR |
|||||||||||
|
( 608,79 EUR incl. VAT ) ≈ £428.20 | ≈ $562.24 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1312728 | ||||||||||
| Mfg Part No: | 0052515 | ||||||||||
| UPC/EAN: | 4030641525156 | ||||||||||
| Weight: | 0.438 kg | ||||||||||
| Type: | BH5932.22/001/61 ACDC24V 7-21000IPM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Dold 0052515:
Applications
The BH5932 is used in industrial environments where monitoring of rotational and linear movements is required. Typical applications include machines with rotating parts, such as presses, milling machines, conveyor systems, or machine tools, where an unexpected stop or uncontrolled movement could lead to accidents. The device is suitable for use in plants with enhanced safety requirements, particularly in the manufacturing and processing industries.
Functions and Equipment in Detail
The speed monitor features a 2-channel design, with both channels being adjustable together. The setpoint values range from 7 to 21000 IPM (impulses per minute), allowing flexible adaptation to different drive speeds. The inputs are designed for NPN proximity switches, and the variant without initiator connection detection is supplied. The output contacts are fail-safe, consisting of 2 normally closed contacts and 1 normally open contact, ensuring secure signal transmission. A feedback circuit (X1–X2) enables monitoring of external contacts to implement additional safety functions.
Technology Explained Simply
The device operates with a nominal voltage of AC/DC 24 V and is designed for use in industrial control systems. The fail-safe contacts ensure that output signals are only activated when all internal circuits are functioning correctly — a key component for safety functionality. The maximum thermal current rating is 4 A, enabling use with appropriately sized loads. The width of 45 mm allows for compact mounting in standard control panels.
Compatibility and Accessories
The BH5932 is compatible with inductive proximity switches from the NA 5001, NA 5002, NA 5005, and NA 5010 series. In particular, types NA 5002.01.34 and NA 5005.01.34, which support both pnp and npn outputs, are suitable for devices without initiator connection detection. The connection configuration is detailed in the manufacturer’s data sheets, including the colour coding of wires (brown, blue, black, white) and their assignment to device terminals (In A, In B, NO, etc.). The IP 67 protection rating of the proximity switches makes them suitable for outdoor or damp environments.
Mounting and Installation
Mounting is carried out in standard control panels with a width of 45 mm. Wire connections are made via terminals, using stranded wires of 2 x 1.5 mm² (with sleeve and plastic collar DIN 46 228-1/-2/-3/-4) or 2 x 2.5 mm² (with sleeve DIN 46 228-1/-2/-3). Correct wiring of the proximity switches is essential for functionality; reference must be made to the connection diagrams in the data sheet, which specify the assignment of wire colours to terminals (e.g. brown = +, blue = –, black = NO).
Advantages in Operation
The device offers high safety performance with Category 3 and Performance Level e according to EN ISO 13849-1, as well as SIL 3 according to IEC/EN 62061. These certifications make it suitable for applications requiring high fault tolerance and availability. The adjustable setpoint values allow precise adaptation to the specific machine configuration. UL listing (C/US), TÜV and CCC certifications ensure compliance with international safety standards. The use of fail-safe contacts increases the reliability of the safety signal and minimizes the risk of false alarms or failures.
Certifications and Markings
The device is UL-listed C/US, TÜV and CCC certified. It complies with safety standards EN ISO 13849-1 (Category 3, PL e) and IEC/EN 62061 (SIL 3). These certifications are essential for use in safety-critical plants and enable integration into certified safety architectures.
Classification
The BH5932 is classified as an initiator, meaning it functions as the primary sensor in a safety chain. It detects the movement of a drive and triggers a safety response if the setpoint value deviates, for example, by shutting down the machine.
Application Safety
The combination of fail-safe contacts, adjustable setpoint values, and certification to SIL 3 and PL e makes the BH5932 a reliable component in safety-critical control systems. Use with compatible proximity switches and clear connection definitions ensures easy integration into existing plants.
Certifications
UL-listed C/US, TÜV, CCC, EN ISO 13849-1 (Category 3, PL e), IEC/EN 62061 (SIL 3).
| Technical data | |
| 1- / 2-channel | 2 |
| Approvals | UL |
| Cat. / PL acc. to EN ISO 13849-1 | 3/e |
| Classification | For initiators |
| Forcibly guided output contacts max. | 1 NC contact, 2 NO contacts |
| SIL CL acc. to IEC/EN 62061 | 3 |
| SIL acc. to IEC/EN 62061 | 3 |
| Thermal current Ith max. | 4 A |
| Width | 45 mm |
| Type | BH 5932 |
| Variant | |
| Contact equipping | 2 NO contacts, 1 NC contact |
| Nominal voltage | AC/DC 24 V |
| Response value | 7 - 21000 IPM |
| Approvals and Markings | UL-listed C/US, TÜV, CCC |
| Variant | Without sensor detection. NPN-input. Adjustable setting value channel 1 and 2 together adjustable |
