Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S
( 4.3 / 5 ) 15 ratings

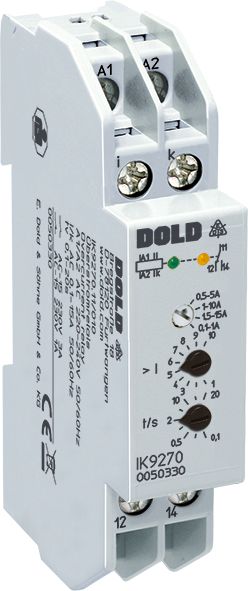

Dold 0052458
This image may differ from the desired article.
202,98 EUR
( 241,55 EUR incl. VAT )
≈ £169.89  |  ≈ $223.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:531328
Mfg Part No: 0052458
UPC/EAN: 4030641524586
Weight:0.078 kg
Type:IK9270.11 AC/DC24V 0,1-15A
Graduated prices net
From piecesPrice per pieces
5201,46 EUR
10199,94 EUR
15198,41 EUR
20196,89 EUR

Product information for Dold 0052458:

The Dold overcurrent relay type IK9270.11 AC/DC24V 0.1-15A is a single-phase current relay for monitoring alternating and three-phase power networks. It is used for continuous monitoring of current flow in electrical installations and responds when a settable switching threshold in the measurement range of 0.1 to 15 A is exceeded. The device operates on the residual current principle, in which the output relay is de-energized in the event of a fault, ensuring safe disconnection in case of overload. The switching delay is adjustable between 0.1 and 20 seconds to account for or ignore short-term current peaks. Operational readiness and overcurrent condition are each indicated by LED displays, with the green LED indicating the applied auxiliary voltage and the red LED signaling the overcurrent condition.

Applications
This relay is suitable for use in industrial and installation distributors, particularly in systems requiring precise current monitoring. It is used in applications where automatic response to current overloads is necessary, such as pump control systems, lighting systems, or machine control systems. The galvanic isolation between the auxiliary circuit and the measurement circuit ensures high safety and prevents interference in the measurement circuit caused by the auxiliary circuit.

Functions and Equipment in Detail
The device features an adjustable pickup value that can be individually adapted according to the application. The hysteresis is fixed at approximately 4 %, ensuring stable switching behavior with minor fluctuations in the measured value. The output contacts consist of a changeover contact, which can be used to control auxiliary circuits or alarms. The auxiliary voltage is AC/DC 24 V, enabling flexible integration into existing control systems.

Technology Explained Simply
The relay monitors current flow in an electrical conductor and compares it with a pre-set threshold value. If the current exceeds this value, the output contact is switched after the set delay time. The delay allows short-term current peaks, which pose no danger, to be ignored. The LED indicators provide visual feedback on the operating status, simplifying fault diagnosis. The housing design is intended for installation distributors according to DIN 43880, with a width of 17.5 mm and a depth of 61 mm.

Compatibility and Accessories
The device is compatible with other devices in the Dold series, particularly with models of the I-type design, which are also designed for installation distributors. The uniform width of 17.5 mm enables modular mounting in standard distributor boxes. The galvanic isolation between the measurement and auxiliary circuits ensures safe and interference-free operation, even in electrically demanding environments.

Mounting and Installation
Mounting is carried out in installation distributor boxes according to DIN 43880. The connection terminals are located at the bottom of the device, enabling easy integration into existing control systems. The auxiliary voltage is connected via terminals A1 and A2, while the measurement circuit is connected via terminals i and k. The selection of the measurement range is done via jumpers on terminals 11, 12, and 14.

Operational Advantages
The adjustable switching delay and adjustable pickup value allow customized adaptation to different applications. The LED indicators enable quick visual fault detection. The galvanic isolation between the measurement and auxiliary circuits increases safety and prevents interference. The residual current principle ensures that the output relay is de-energized in the event of a fault, ensuring safe disconnection. The width of 17.5 mm allows compact mounting in standard distributor boxes.

Compliance with Standards
The device complies with standard IEC/EN 60255-1, which defines requirements for electrical measuring instruments and relays. This standard ensures high reliability and safety of the device in industrial applications.

Housing Design and Mounting
The I-type housing design of the device is intended for installation distributors, with a depth of 61 mm and terminals located at the bottom. The width is 17.5 mm, enabling compact mounting in standard distributor boxes. Mounting is carried out in accordance with DIN 43880.

Operating Principle
The relay operates on the residual current principle, in which the output relay is de-energized in the event of a fault. This means that in the event of an overcurrent, the output contact switches to its resting state, enabling safe disconnection of the affected load. The adjustable switching delay allows short-term current peaks, which pose no danger, to be ignored.

Indication and Diagnosis
The green LED indicates the applied auxiliary voltage and the operational readiness of the device. The red LED signals the overcurrent condition as soon as the set threshold is exceeded. These visual indicators simplify fault diagnosis and device maintenance.

Application Areas
The relay is used in various industrial and installation applications where precise current monitoring is required. It is particularly suitable for systems requiring automatic response to current overloads, such as pump control systems, lighting systems, or machine control systems.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9270
Operate delayYes
Variant
Auxiliary voltageAC/DC 24 V
Contact equipping1 changeover contact
Measuring range0,1 - 15 A
Switching delay0,1 - 20 s
VariantSingle phase current relay. De-energized on trip


Product data sheet
Datasheet for Dold 0052458, EAN: 4030641524586

Questions & answers

What is the delivery time of Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S ?

The article Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Dold 0052458 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S always at the best possible price. We can give you a discount of 2% on Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Dold 0052458 IK9270.11 AC/DC24V 0.1-15A overcurrent relay Tv=0.1-20S we can offer you a price of 201,46 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
