Dold 0052004 IK9170.11/031 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S

Your rating:
Average rating
product review for Dold 0052004 IK9170.11/031 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S
( 4.5 / 5 ) 10 ratings

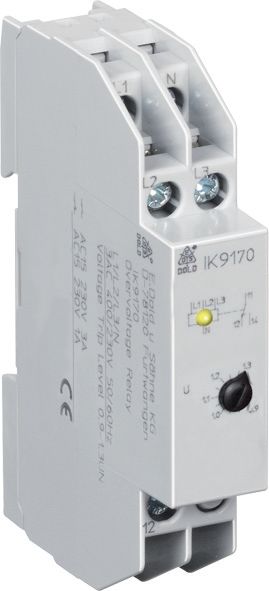

Dold 0052004
This image may differ from the desired article.
121,00 EUR
( 143,99 EUR incl. VAT )
≈ £101.28  |  ≈ $132.98
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0052004 IK9170.11/031 3AC400V 0.9-1.3UN overvoltage relay Tv=0.5-20S
Datasheet:file_download Download
Lieske Part No.:198396
Mfg Part No: 0052004
UPC/EAN: 4030641520045
Weight:0.073 kg
Type:IK9170.11/031 3AC400V 0,9-1,3UN
Graduated prices net
From piecesPrice per pieces
5120,09 EUR
10119,19 EUR
15118,28 EUR
20117,37 EUR

Product information for Dold 0052004:

The Dold overvoltage relay type IK9170.11/031 is an overvoltage relay for monitoring three-phase networks for overvoltage. It is designed for a rated voltage of 3AC 400 V and operates on the standby current principle, whereby the output relay is not activated in the event of a fault. The device variant is designed without a neutral conductor connection and features an adjustable pickup value in the range of 0.9 to 1.3 times the rated voltage (Un). The time delay t1 for fault indication is adjustable between 0.5 and 20 seconds. The device is certified according to IEC/EN 60255-1 and is suitable for use in installation and industrial distribution systems in accordance with DIN 43880.

Applications

The relay is used for continuous monitoring of single- and three-phase AC networks. It is particularly suitable for applications where overvoltage in the network must be detected and signaled via an output contact, for example in industrial plants, lighting systems, or machine controls. The single-phase connection option extends the application range to single-phase systems. The phase sequence is arbitrary, enabling flexible installation.

Functions and Equipment in Detail

The device features a changeover contact as the output contact, rated for an operating voltage of AC 250 V. The contact material consists of AgNi 0.15 + 0.3 μm Au, ensuring high switching durability and corrosion resistance. The electrical life expectancy is at least 300,000 switching operations at 1 A and AC 230 V. A yellow LED indicates the contact position – it lights up when the output contact (11-14) is closed. The reset hysteresis is approximately 4% of the set pickup value, ensuring stable switching behavior during voltage fluctuations.

Technology Explained Simply

The relay measures the arithmetic mean of the voltage of each phase against the neutral conductor (in versions with N). In variants without a neutral conductor, the voltage between L1 and L3 is measured against L2. When the set pickup value (0.9–1.3 Un) is reached, the output contact is closed after an adjustable delay t1 (0.5–20 s). Monitoring is performed without auxiliary voltage, simplifying installation and ensuring independence from additional power supplies. The maximum overload capacity is 1.35 times the rated voltage continuously, and the rated power consumption is approximately 4 VA.

Compatibility and Accessories

The device is manufactured in the IK 9170 form factor, which has a width of 17.5 mm and a depth of 59 mm. The connection terminals are located at the bottom and are designed for mounting in installation and industrial distribution systems according to DIN 43880. The terminals are rated for conductor cross-sections of 2 x 2.5 mm² (solid) or 2 x 1.5 mm² (stranded wire with sleeve DIN 46228-1/-2/-3/-4). Mounting is done via flat terminals with self-lifting connection washers. Quick mounting is achieved via DIN rail according to IEC/EN 60715. The devices are also available in the SK 9170 form factor, designed for enclosures with mounting plate and cable duct.

Mounting and Installation

Mounting is done via the integrated DIN rail. The connection terminals are designed for connection with solid or stranded conductors. The tightening torque for the terminals is 0.8 Nm. The devices are designed for continuous operation and can be used at operating temperatures from -20 °C to +60 °C. Storage is permitted in the range of -25 °C to +60 °C. The relative humidity may reach up to 93% at 40 °C. The operating altitude is limited to below 2000 m.

Advantages in Operation

The relay provides reliable and low-maintenance monitoring of voltage networks. The adjustable parameters such as pickup value and time delay allow application-specific adaptation. The LED indicator facilitates diagnostics during operation. The high mechanical life expectancy of at least 30 million switching operations and the short response time ensure robust and long-lasting performance. The protection rating IP 40 for the housing and IP 40 for the terminals provide sufficient protection against mechanical influences and contact. EMC tests according to IEC/EN 61000-4-2 to -4-5 and radio interference suppression according to EN 55011 Class B ensure electromagnetic compatibility and immunity.

Protection Rating and Environmental Conditions

The housing is equipped with protection rating IP 40 according to IEC/EN 60529, providing protection against solid objects larger than 1 mm and against splashing water from any direction. The terminals have protection rating IP 40, offering protection against finger contact and vertical splashing water. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature ranges from -25 °C to +60 °C. The relative humidity may reach up to 93% at 40 °C. The operating altitude is limited to below 2000 m.

Approvals and Standards

The device complies with standards IEC/EN 60255-1 for measuring instruments and IEC/EN 60947-5-1 for switching devices. EMC requirements are met according to IEC/EN 61000-4-2 to -4-5. Radio interference suppression meets Class B limits according to EN 55011. Terminal marking is done according to EN 50005. Conductor connection terminals are designed according to IEC/EN 60999-1. Quick mounting is done via DIN rail according to IEC/EN 60715.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designDistribution board
Nominal voltage max.3/N AC 400 / 230 V
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9170
Operate delayYes
Variant
Contact equipping1 changeover contact
Nominal voltage3AC 400 V
Response value0,9 - 1,3 Un
Time delay0,5 - 20 s
VariantWithout N. NC circuit operation. Settable time delay t1. Settable response value


Product data sheet
Datasheet for Dold 0052004, EAN: 4030641520045
