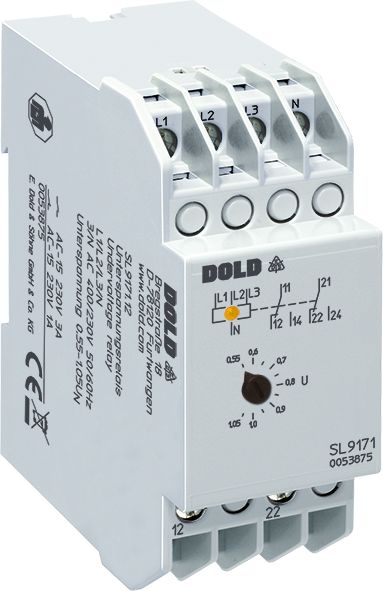

Dold 0051677 SL9171.12/200 3/N AC400/230V 0.85UN undervoltage relay

Your rating:
Average rating
product review for Dold 0051677 SL9171.12/200 3/N AC400/230V 0.85UN undervoltage relay
( 4.7 / 5 ) 24 ratings
Dold 0051677
This image may differ from the desired article.
149,86 EUR
( 178,33 EUR incl. VAT )
≈ £125.43  |  ≈ $164.70
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0051677 SL9171.12/200 3/N AC400/230V 0.85UN undervoltage relay
Datasheet:file_download Download
Lieske Part No.:1312805
Mfg Part No: 0051677
UPC/EAN: 4030641516772
Weight:0.159 kg
Type:SL9171.12/200 3/N AC400/230V 0,85UN
Graduated prices net
From piecesPrice per pieces
5147,61 EUR
10145,36 EUR
15143,12 EUR
20140,87 EUR

Product information for Dold 0051677:

The Dold undervoltage relay SL9171.12/200 is an industrial device for monitoring three-phase power networks for undervoltage. It is used for network monitoring and enables automatic switching to a safety power supply or safety lighting in accordance with DIN VDE 0100-710 and DIN VDE 0108. The device operates on the rest current principle, in which the output relay is not activated in the event of a fault, and is designed for use in enclosures. The width is 35 mm, and it is operational without auxiliary voltage.

Applications
This relay is designed for monitoring 3-phase networks with neutral conductor connection (3/N AC 400/230 V). It can also be connected single-phase, in which case the terminals L1, L2 and L3 must be bridged. The application is particularly suitable for installations that must switch to emergency power supply in the event of voltage dips or phase failure, for example in lighting systems or safety installations. The variant without time delay is suitable for applications where an immediate state change is required.

Functions and equipment in detail
The device detects undervoltages below 0.85 times the nominal voltage (Un) and responds with a fixed pickup value. The output contacts consist of two changeover contacts, which are used for switching. An LED indicator shows the contact position – yellow lights up when the output relay is activated (contacts 11-14 closed). Phase sequence is arbitrary, which makes installation flexible. Measurement is performed via the arithmetic mean of the phase voltages against the neutral conductor; for variants without neutral conductor connection, L1 and L3 are measured against L2 (IK/SK 9171) or L1 and L2 against L3 (IL/SL 9171).

Technology explained simply
The relay operates without auxiliary voltage and uses the network voltage for its own supply. It is certified according to IEC/EN 60255-1, ensuring electrical safety and reliability in industrial applications. The nominal voltage is 3/N AC 400/230 V, with a maximum nominal voltage of 3/N AC 500/290 V. The frequency range is between 45 and 65 Hz. The overload capacity is 1.15 times nominal voltage continuously. The device is designed for operation at 50/60 Hz.

Compatibility and accessories
The device is intended for use in enclosures with mounting plate and cable duct. It is designed in S-form, featuring a depth of 98 mm and top-mounted connection terminals. The width of 35 mm allows mounting in standard switchboards.

Mounting and installation
Mounting is done in enclosures with mounting plate. The top-mounted connection terminals facilitate wiring. For single-phase connection, terminals L1, L2 and L3 must be connected together. The devices are suitable for use in industrial and installation distributors according to DIN 43 880. Installation is performed without additional auxiliary voltage.

Advantages in operation
The relay provides reliable network monitoring without external power supply. The LED indicator allows for quick visual status checking. The single-phase connection option expands the range of applications. The rest current principle ensures that the output relay is not activated in the event of a fault, increasing safety. The fixed pickup setting of 0.85 Un ensures precise response to voltage dips.

Technical data
1- / 3-phase1, 3
Auxiliary voltageWithout
Enclosure designSwitch cabinet
Nominal voltage max.3/N AC 500 / 290 V
Output contacts2 C/O contacts
Width35 mm
TypeSL 9171
Operate delayYes
Variant
Contact equipping2 changeover contacts
Nominal voltage3/N AC 400 / 230 V
Response value0,85 Un
Time delaywithout
VariantWith N. NC circuit operation. Without time delay. Fixed response value


Product data sheet
Datasheet for Dold 0051677, EAN: 4030641516772
