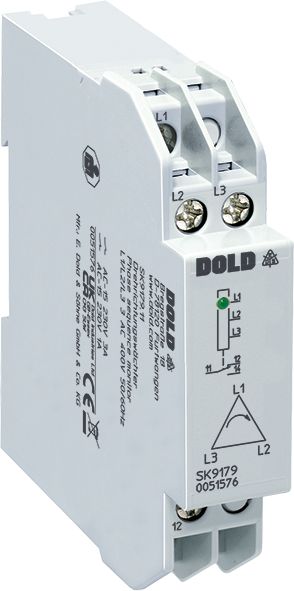

Dold 0051576 SK9179.11 3AC 50/60Hz 400V direction monitor

Your rating:
Average rating
product review for Dold 0051576 SK9179.11 3AC 50/60Hz 400V direction monitor
( 4.4 / 5 ) 15 ratings
Dold 0051576
This image may differ from the desired article.
94,41 EUR
( 112,35 EUR incl. VAT )
≈ £79.02  |  ≈ $103.76
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0051576 SK9179.11 3AC 50/60Hz 400V direction monitor
Datasheet:file_download Download
Lieske Part No.:253562
Mfg Part No: 0051576
UPC/EAN: 4030641515768
Weight:0.123 kg
Type:SK9179.11
Graduated prices net
From piecesPrice per pieces
690,87 EUR
1287,33 EUR
2483,79 EUR
3680,25 EUR

Product information for Dold 0051576:

The Dold rotation direction monitor SK9179.11 is an electrical monitoring device for detecting rotation direction in three-phase networks. It is used for the safe and controlled switching on of consumers requiring a fixed rotation direction, such as motors in industrial plants. The device operates on the residual current principle, whereby the output relay is not activated in the event of a fault, ensuring safe and reliable operation. The operating voltage is 3 AC 400 V, with a voltage range between 0.8 and 1.1 times the rated voltage. The rated frequency is 50/60 Hz, with a frequency range of 45 to 65 Hz, enabling flexible application in various networks.

Applications

The rotation direction monitor SK9179.11 is specifically designed for use in enclosures. It monitors three-phase alternating voltages and ensures that the phase sequence (clockwise rotation field) is correct before switching on a motor or other consumer. This prevents damage to machines that could result from incorrect rotation direction. The application is in industrial and installation environments, where the reliability of power supply and the safety of plants are paramount.

Functions and Equipment in Detail

The device features an output with 1 changeover contact, which is closed when the rotation direction is correct. The LED indicator signals the state of the output relay: when the relay is activated (contacts 11-14 closed), the LED lights up. The contact rating is designed for a thermal current load of 4 A. The switching capacity is 3 A at AC 230 V for the make contact and 1 A at AC 230 V for the break contact, according to IEC/EN 60947-5-1. The electrical life is typically 300,000 switching operations at 1 A and AC 230 V, while the mechanical life is at least 30 million switching operations.

Technology Explained Simply

The rotation direction monitor operates without auxiliary voltage, meaning it is directly connected to the three-phase voltage to be monitored. Measurement is performed via inputs L1, L2, and L3, which analyze the phase sequence. In the event of an incorrect phase sequence (not clockwise rotation field), the output relay remains inactive, preventing the connected consumer from being switched on. The LED indicator serves as a visual feedback for the operator. The housing design is intended for enclosures, with a depth of 100 mm and top-mounted connection terminals suitable for mounting plates and cable ducts.

Compatibility and Accessories

The device is available in the S-form (SK 9179), specifically designed for enclosures. It is compatible with other variants of the series, such as IK 9179 (I-form) and RK 9179 (R-form), which feature different depths and connection positions. The connection terminals are designed for conductor cross-sections of 2 x 0.6 to 2.5 mm² (solid) or 2 x 0.28 to 1.5 mm² (flexible), with a stripping length of 10 mm. The terminal fastening is done using non-loosening plus-minus terminal screws M3.5 with self-lifting connection washers, with a tightening torque of 0.8 Nm.

Mounting and Installation

Mounting is done on a DIN rail according to IEC/EN 60715. The width is 17.5 mm, enabling compact placement in enclosures. The connection terminals are arranged at the top, facilitating easy wiring in cable ducts and with mounting plates. The operating temperature ranges from -20 °C to +60 °C, and the storage temperature corresponds to the operating temperature range. The operating altitude is limited to a maximum of 2000 m above sea level.

Advantages in Operation

The rotation direction monitor SK9179.11 provides reliable and maintenance-free monitoring of phase sequence. Compliance with the standard IEC/EN 60255-1 ensures standardized quality. The LED indicator enables quick visual control of the operating status. The ability to operate without auxiliary voltage reduces installation complexity and lowers acquisition costs. The high mechanical and electrical life ensures long service life and minimizes maintenance requirements.

Protection Rating and Environmental Conditions

The housing is equipped with protection rating IP 40 according to IEC/EN 60529, providing protection against contact with tools and against splashing water to a limited extent. The terminals have protection rating IP 40, ensuring protection against contact with fingers. The EMC requirements are met according to IEC/EN 61000-4-2 to -4-6, including immunity to static discharge, high-frequency radiation, fast transients, and surge voltages. The climatic resistance is defined according to IEC/EN 60068-1 with designation 20 / 060 / 04, indicating high robustness against environmental conditions.

Approvals and Markings

The device carries the UKCA marking, confirming compliance with applicable European safety and environmental requirements. The approvals and markings are detailed in the manufacturer’s datasheet and conform to the applicable standards for electrical equipment.

Technical data
1- / 3-phase3
Enclosure designSwitch cabinet
Measuring range max.3 AC 400 V
Output contacts1 C/O contact
Standard measuring range3 AC 400 V
Width17,5 mm
TypeSK 9179
Variant
Contact equipping1 changeover contact
Nominal voltage3AC 400 V
Approvals and MarkingsUKCA


Product data sheet
Datasheet for Dold 0051576, EAN: 4030641515768
