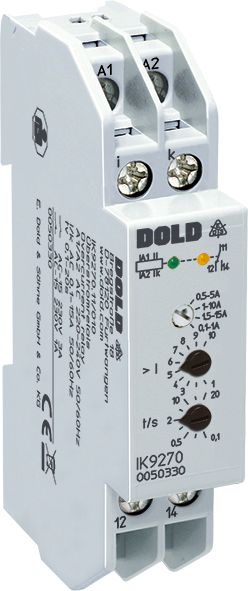

Dold 0051230 IK9270.11 AC220-240V 0.1-15A overcurrent relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0051230 IK9270.11 AC220-240V 0.1-15A overcurrent relay Tv=0.1-20S
( 4.4 / 5 ) 9 ratings
Dold 0051230
This image may differ from the desired article.
202,98 EUR
( 241,55 EUR incl. VAT )
≈ £169.89  |  ≈ $223.08
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Dold 0051230 IK9270.11 AC220-240V 0.1-15A overcurrent relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:355228
Mfg Part No: 0051230
UPC/EAN: 4030641512309
Weight:0.123 kg
Type:IK9270.11 AC220-240V 0,1-15A
Graduated prices net
From piecesPrice per pieces
5195,37 EUR
10187,76 EUR
15180,14 EUR
20172,53 EUR

Product information for Dold 0051230:

The Dold overcurrent relay type IK9270.11 is a single-phase current monitoring device for use in alternating current and three-phase networks. It is designed for continuous monitoring of currents in the range of 0.1 to 15 amperes and responds to exceeding the set switching point with a time-delayed switching function. The device operates on the residual current principle, in which the output relay is de-energized in the event of a fault. The auxiliary voltage is AC 220 to 240 volts, enabling operation in standardized industrial and installation environments. The width of 17.5 mm allows for compact mounting in installation distributors according to DIN 43880, with the connection terminals located at the bottom.

Applications
This relay is suitable for monitoring electrical loads in industrial plants, machine controls, and distributors. It is used to detect overloads, short circuits, or other current anomalies early and trigger appropriate protective measures such as switching off or alarm signaling. The adjustable switching delay of 0.1 to 20 seconds allows for consideration of short-term current peaks that should not be interpreted as faults. This makes the device flexible in use without triggering unnecessary false alarms.

Functions and equipment in detail
The device features an adjustable pickup value that can be individually adapted according to application. The hysteresis is fixed at approximately 4 %, ensuring stable switching behavior during fluctuations in the measurement range. The output contacts consist of a changeover contact, which can be used to control auxiliary circuits or signaling systems. The galvanic isolation between the auxiliary circuit and the measurement circuit increases safety and prevents interference in the measurement signal. Operational readiness and overcurrent condition are each indicated by LED displays – green LED for operational readiness, red LED for overcurrent.

Technology explained simply
The relay measures the flowing current in the measurement circuit and compares it with the set threshold value. If the current exceeds this value, the output contact is switched after the set delay time has elapsed. The residual current principle means that the relay is active during normal operation and is de-energized in the event of a fault (overcurrent), which represents the standard configuration in many protection applications. The LED displays serve as visual feedback indicating whether the device is operating correctly or if a fault is present. The auxiliary voltage is supplied via terminals A1 and A2, and the measurement circuit via terminals i and k.

Compatibility and accessories
The device is designed for use in single-phase networks and complies with the standard IEC/EN 60255-1. It is available in I-form, designed for installation distributors. The width of 17.5 mm allows mounting in standard distributor boxes. Combination with other devices in the series, such as models SK 9270 or IL 9270, is possible, taking into account the respective forms (I- or S-form) and measurement ranges. The connection terminals are designed for mounting in DIN distributors.

Mounting and installation
Mounting is carried out in installation distributors according to DIN 43880. The depth is 61 mm, the width is 17.5 mm. The connection terminals are located at the bottom of the device, facilitating integration into standard distributors. The auxiliary voltage is connected via terminals A1 and A2, and the measurement circuit via i and k. The pickup value and switching delay are adjusted via terminals 11, 12, and 14, with bridges used to select the measurement range. The LED displays allow for quick visual inspection of the operating status.

Advantages in operation
The relay offers high reliability through galvanic isolation between the measurement and auxiliary circuits, as well as through the adjustable switching delay, which prevents reaction to short-term load peaks. The LED displays enable quick diagnosis during operation. The compact design and standardization according to DIN 43880 facilitate integration into existing systems. Compliance with the standard IEC/EN 60255-1 ensures the quality and safety of the device in industrial applications.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Output contacts1 C/O contact
Width17,5 mm
TypeIK 9270
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping1 changeover contact
Measuring range0,1 - 15 A
Switching delay0,1 - 20 s
VariantSingle phase current relay. De-energized on trip


Product data sheet
Datasheet for Dold 0051230, EAN: 4030641512309
