Dold 0051048 IL9270.12 AC220-240V 0.1-15A overload relay Tv=0.1-20S

Your rating:
Average rating
product review for Dold 0051048 IL9270.12 AC220-240V 0.1-15A overload relay Tv=0.1-20S
( 4.5 / 5 ) 28 ratings
Dold 0051048
This image may differ from the desired article.
Dold 0051048Dold 0051048
242,75 EUR
( 288,87 EUR incl. VAT )
≈ £203.18  |  ≈ $266.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline

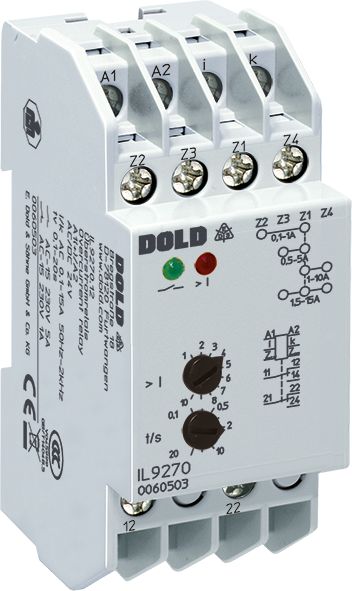

1x Dold 0051048 IL9270.12 AC220-240V 0.1-15A overload relay Tv=0.1-20S
Datasheet:file_download Download
Lieske Part No.:435110
Mfg Part No: 0051048
UPC/EAN: 4030641510480
Weight:0.147 kg
Type:IL9270.12AC220-240V0,1-15A
Graduated prices net
From piecesPrice per pieces
5233,65 EUR
10224,54 EUR
15215,44 EUR
20206,34 EUR

Product information for Dold 0051048:

The Dold overcurrent relay IL9270.12AC220-240V0,1-15A is a single-phase current relay for monitoring alternating and three-phase power networks. It is designed for continuous monitoring of current flow and responds with a time-delayed switching function when the set switching point is exceeded. The device operates on the standby current principle, in which the output relay is not activated in the event of a fault, ensuring safe disconnection in case of overload. The adjustable switching delay in the range of 0.1 to 20 seconds allows for consideration of short-term current peaks without triggering false tripping. Operational readiness and overcurrent condition are each indicated by LED displays, with the green LED indicating normal operation and the red LED illuminating when the switching point is exceeded.

Applications
This relay is designed for use in industrial and installation distributors, particularly in systems requiring precise current monitoring. It is suitable for protective functions in machine controls, drive technology, pump and fan systems, as well as in electrical distribution systems where early detection of overloads is necessary. The galvanic isolation between auxiliary circuit and measuring circuit ensures high safety and prevents disturbances in the control circuit.

Functions and Equipment in Detail
The device features an adjustable threshold in the measuring range of 0.1 to 15 amperes, allowing flexible adaptation to different applications. The hysteresis is fixed at approximately 4 %, ensuring stable switching behavior without oscillations. The contact configuration includes 2 changeover contacts, which can be used for controlling auxiliary circuits or signal indication. The auxiliary voltage is AC 220 to 240 volts, enabling integration into standard mains voltages.

Technology Explained Simply
The relay measures the current in the measuring circuit and compares it with the set threshold. If the measured current exceeds this value, the output contact is switched after the set delay time has elapsed. The delay is intended to ignore short-term load peaks, such as those occurring during motor start-ups. The LED indicators provide visual feedback: the green LED indicates that the device is operational and the current is within limits, while the red LED signals an overcurrent condition. The galvanic isolation between measuring and auxiliary circuits prevents disturbances in the measuring circuit from being transmitted to the control circuit.

Compatibility and Accessories
The device is designed for use in installation distributors according to DIN 43880 and has a width of 35 mm. It is available in I-form, which features a depth of 61 mm and connection terminals located at the bottom. Compatibility is ensured for applications requiring single-phase current monitoring. Devices in the IL series are available in various measuring ranges, with the variant described here covering the range of 0.1 to 15 A. The CCC certification confirms compliance with applicable safety standards.

Mounting and Installation
Mounting is carried out in standard installation distributors with fastening according to DIN 43880. The connection terminals are located at the bottom of the device, enabling easy integration into existing control systems. The terminal designation A1/A2 is for the auxiliary voltage, while i/k denotes the measuring circuits. The selection of the measuring range is made via jumpers on terminals 11, 12, and 14. Installation does not require special tools, as the terminals are designed for standard plug connections.

Advantages in Operation
The relay offers high reliability through the adjustable switching delay and galvanic isolation. The LED indicators enable quick visual diagnosis of the operational status. The adjustable threshold and fixed hysteresis ensure precise and stable response. The width of 35 mm and I-form facilitate integration into existing control systems. The device complies with the standard IEC/EN 60255-1, guaranteeing quality and safety for industrial applications.

Technical data
1- / 3-phase1
Enclosure designDistribution board
Output contacts1 C/O contact, 2 C/O contacts
Width35 mm
TypeIL 9270
Operate delayYes
Variant
Auxiliary voltageAC 220 - 240 V
Contact equipping2 changeover contacts
Measuring range0,1 - 15 A
Switching delay0,1 - 20 s
Approvals and MarkingsCCC
VariantSingle phase current relay. De-energized on trip


Product data sheet
Datasheet for Dold 0051048, EAN: 4030641510480
